Section 1 – Scheduled Maintenance Scissors inspection
1.7 Scissors inspection

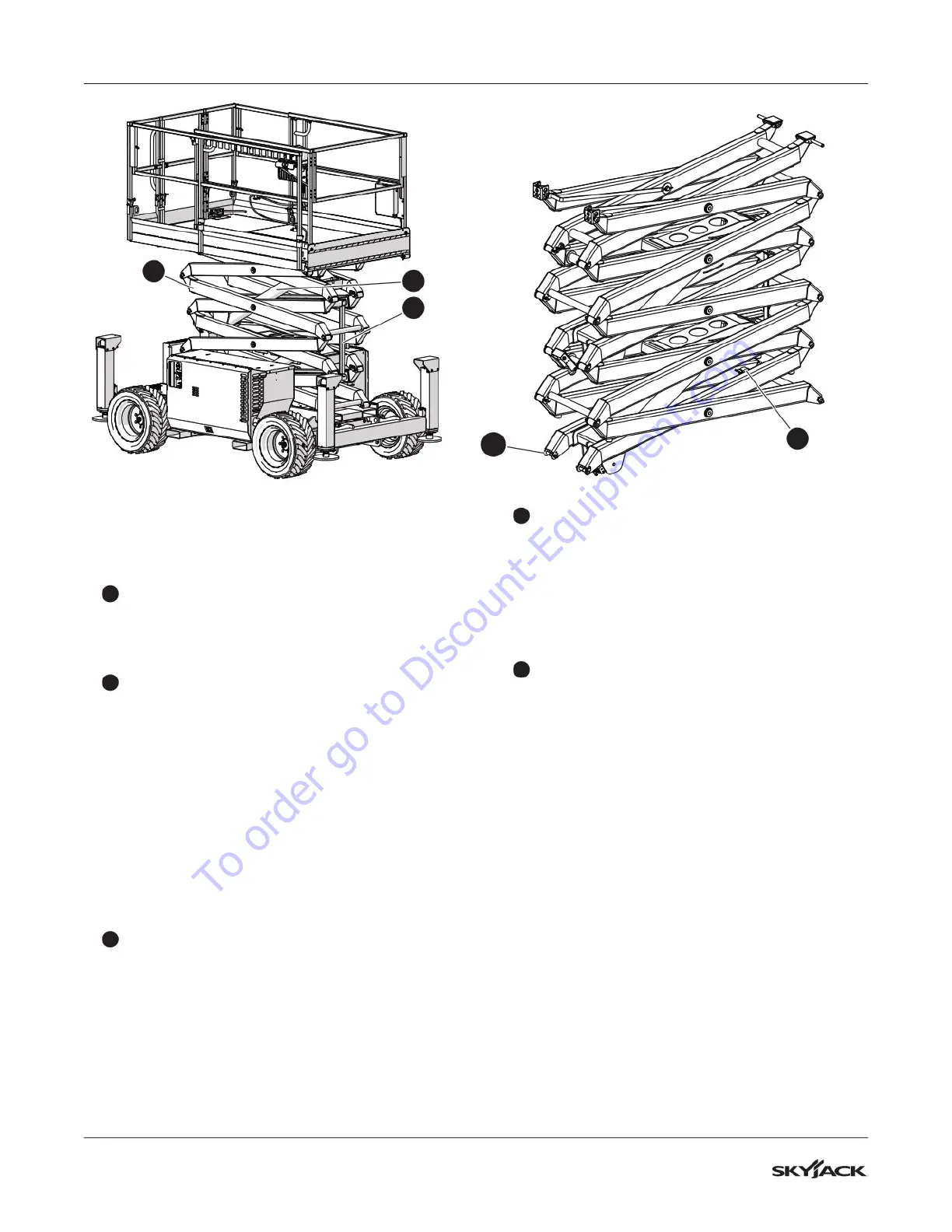

1. Raise the platform and deploy the maintenance
support.
1
Maintenance Support (B)
▪ Make sure that the maintenance support
is correctly attached and show no visible
damage.
2
Scissor Assembly (B)
▪ Make sure that the scissor assembly shows
no signs of visible damage, deformation, or
cracks in the weldments.
▪ Make sure all the pins and fasteners are
correctly installed.
▪ Make sure that the cables and wires have the
correct routing, and show no signs of wear
and/or physical damage.
▪ Make sure that the scissor bumpers are
correctly attached and have no visible
damage.
3
Sliders & Rollers (B)
▪ Make sure that the sliders and rollers on the
left and right side of the MEWP are correctly
attached.
▪ Make sure there is no visible damage.
▪ Make sure there is no dirt or blockages in the
slider or roller paths.
4
Lift Cylinder(s) (B)
▪ Make sure that the lift cylinders are correctly
installed.
▪ Make sure there are no loose or missing
fasteners.
▪ Make sure there is no indication of leaks or
damage.
5
Angle Transducer (B)
▪ Make sure the angle transducer has no
damage and is correctly attached.
▪ Make sure there is no visible damage.
2. Fully lower the platform.
3
1
4
5
2
