SJ6826RT, SJ6832RT
213560ABA
Section 5 – Procedures Load Sensing System

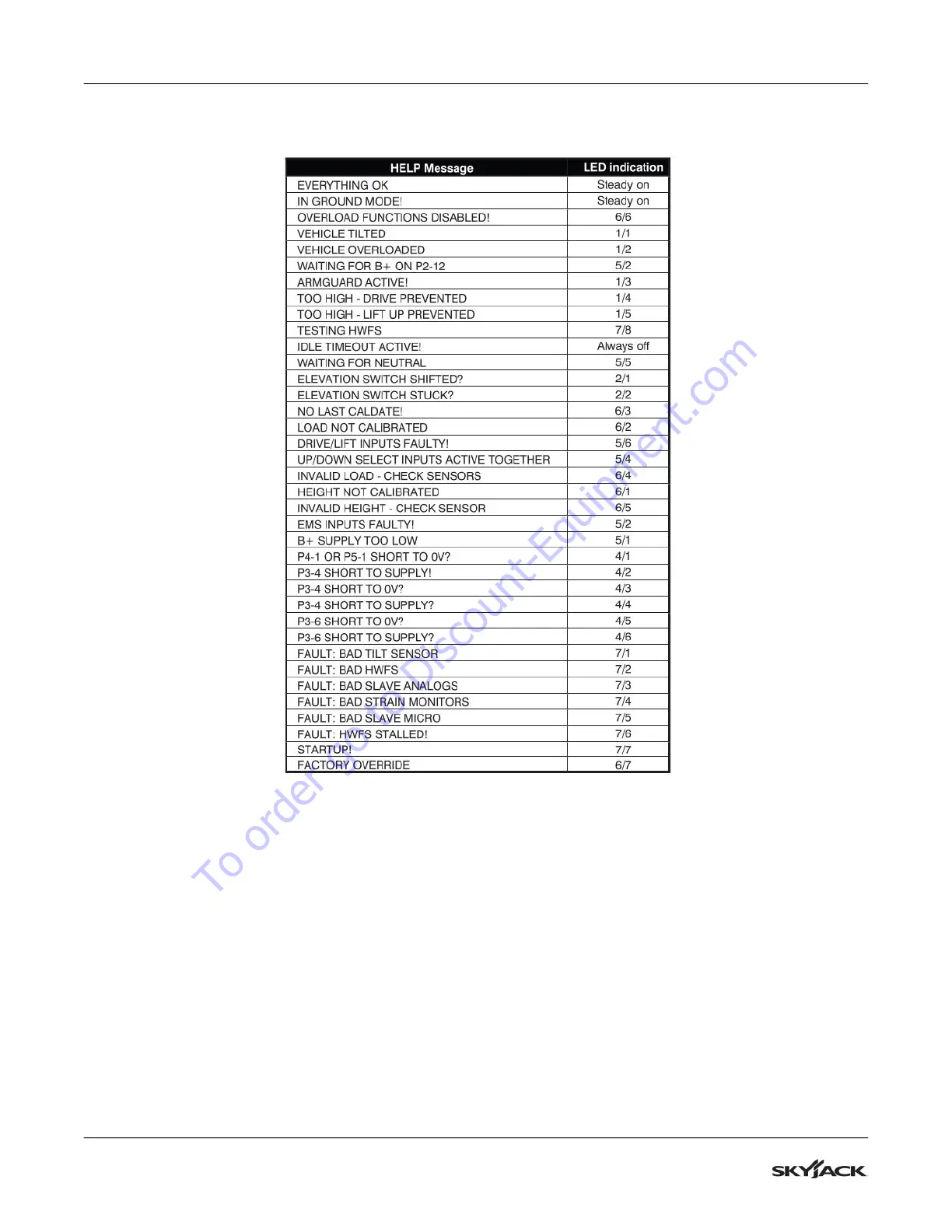

5.5-5 LED Error Codes – Quick Reference Chart
60405AB
Reading the Codes:
In order to read the fault codes, a sequence of pauses and ashes can be seen on the LED mounted on the GP102
module. The codes are continuously displayed by the LED until the fault is cleared, the GP102 reset and no longer
detects the fault, or idle timeout becomes active.
The sequence is as follows:
1. Quarter second ashes followed by quarter second pauses indicate the rst digit.
2. A 1.5 second pause.
3. Quarter second ashes followed by quarter second pauses indicate the second digit
4. A 4 second pause. Repeat Steps 1–4
Since the GP102 only reports one error, only one code can be read from the LED per instance. If the error is cleared
and another error is present, it will then be presented.
