M
ULTICAST
C
ONFIGURATION
2-71

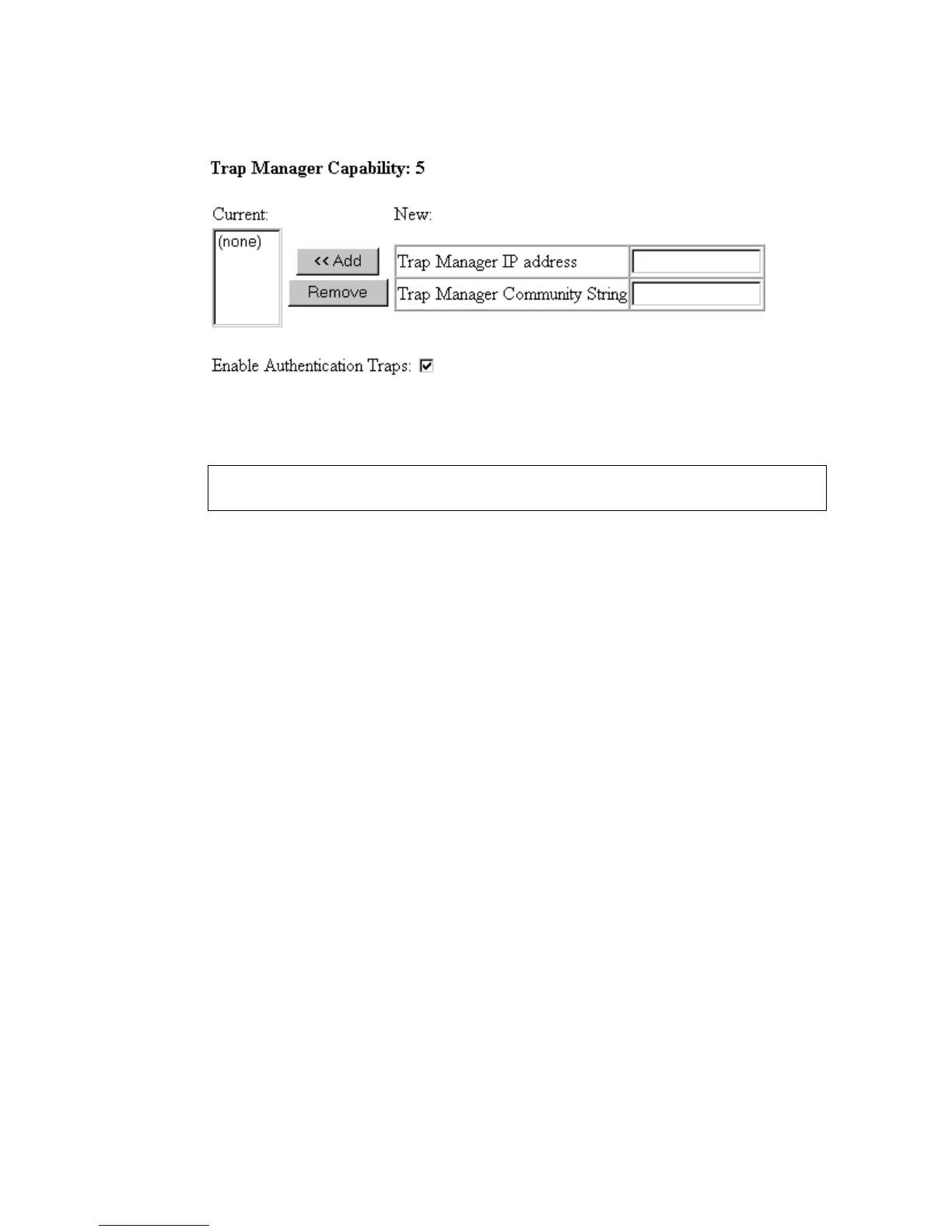

CLI – This example adds a trap manager and enables authentication traps.
Multicast Configuration
Multicasting is used to support real-time applications such as video
conferencing or streaming audio. A multicast server does not have to
establish a separate connection with each client. It merely broadcasts its
service to the network, and any hosts that want to receive the multicast
register with their local multicast switch/router. Although this approach
reduces the network overhead required by a multicast server, the broadcast
traffic must be carefully pruned at every multicast switch/router it passes
through to ensure that traffic is only passed on the hosts which subscribed
to this service.
This switch uses IGMP (Internet Group Management Protocol) to query
for any attached hosts that want to receive a specific multicast service. It
identifies the ports containing hosts requesting to join the service and
sends data out to those ports only. It then propagates the service request
up to any neighboring multicast switch/router to ensure that it will
continue to receive the multicast service. This procedure is called multicast
filtering.
Console(config)#snmp-server host 10.1.19.23 batman 3-45
Console(config)#snmp-server enable traps authentication 3-47
