VLAN C
ONFIGURATION
2-49
• Trunk Member – Indicates if a port is a member of a trunk. To add
a trunk to the selected VLAN, use the last table on the VLAN Static
Table page.

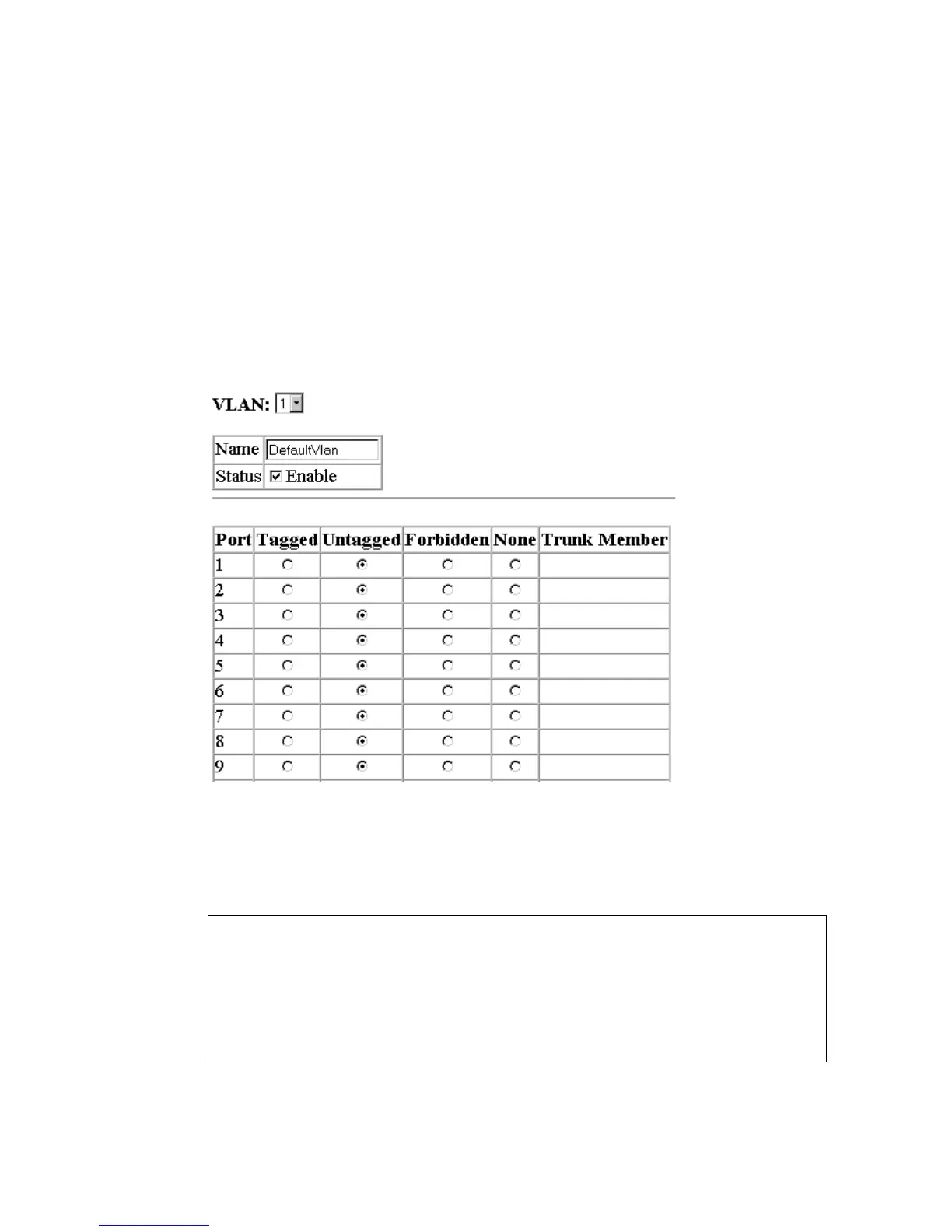

Web – Click VLAN/VLAN Static Table. Select a VLAN ID from the
scroll-down list. Modify the VLAN name and status if required. Select the
membership type by marking the appropriate radio button in the list of
ports or trunks. Click “Apply.”
CLI – The following example shows how to add tagged and untagged
ports to VLAN 2.
Console(config)#interface ethernet 1/1 3-68
Console(config-if)#switchport allowed vlan add 2 tagged 3-101
Console(config-if)#exit
Console(config)#interface ethernet 1/2
Console(config-if)#switchport allowed vlan add 2 untagged
Console(config-if)#exit
Console(config)#interface ethernet 1/13
Console(config-if)#switchport allowed vlan add 2 tagged
