3. Installation
The MV-32/MV-64 multiviewer 3U frame may be installed in 19 inch bays and has a depth of
approximately 462mm, including connectors. Ventilation is assisted by cooling fans located
on the removable front panel of the frame. Exhaust grilles are located on the upper, lower and
side panels, at a depth of approximately 370 mm from the front panel.
Maximum operating ambient temperature must not exceed 40
o
C.
Note:
If installing other equipment immediately above or below, it is essential that the ventilation
outlets are not obstructed. Frames should be installed into bays such that airflow is not
impeded in any way.

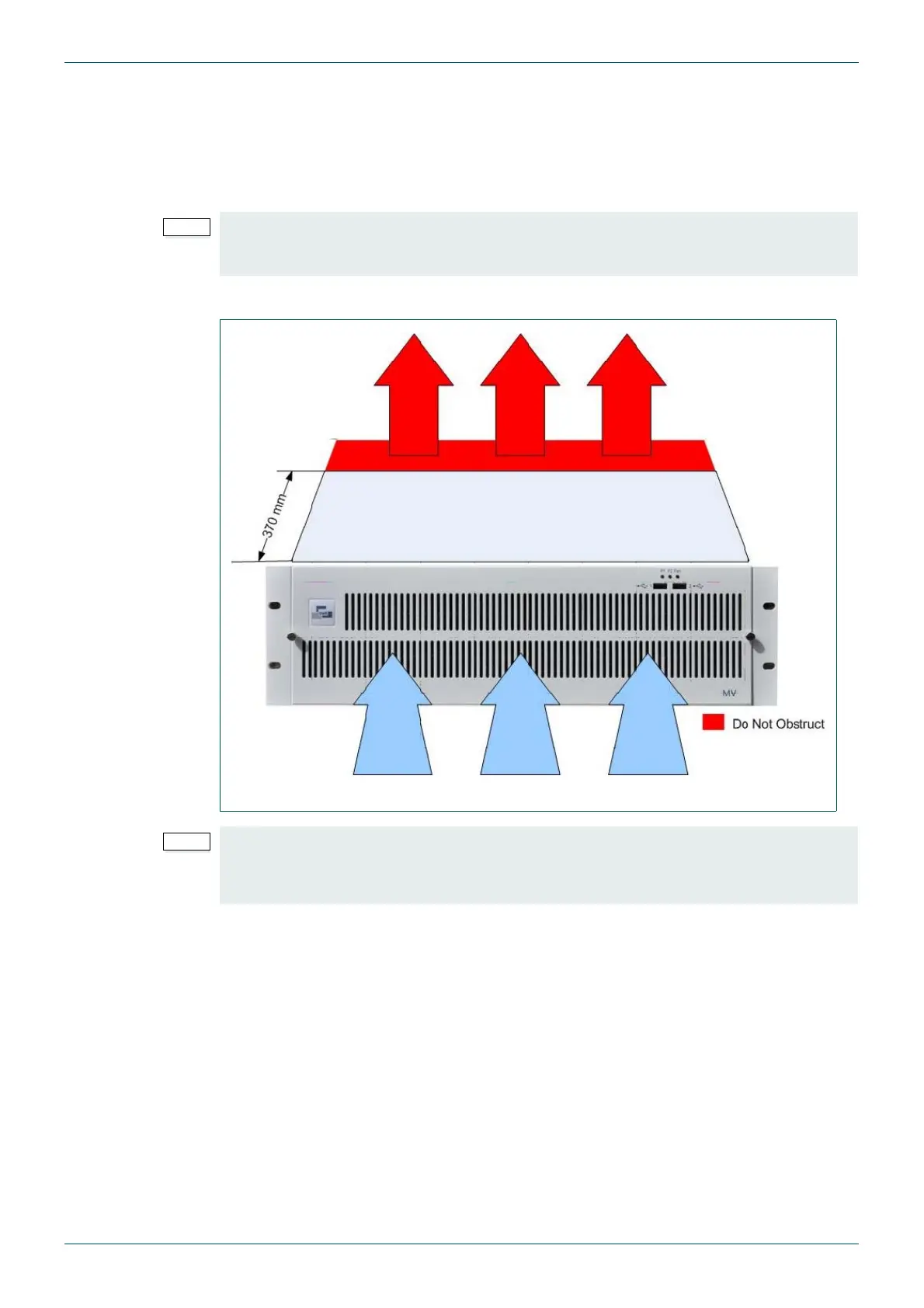

Fig 3. The 3U MV-32/MV-64 Multiviewer Frame Showing Ventilation Airflow.
Note:
The front rack ears are intended to provide a means of retaining the unit in the rack.
To ensure adequate support the unit MUST also be supported at the rear of the frame.
Please ensure that ventilation is not impaired when selecting suitable supports.
