5. Connection to Other Equipment

5.1 Interfaces

Seen from the back of MV-32/MV-64.

5.1.1 D-sub 9 serial interface, RS232/RS422

The following table gives the pin assignments for the RS 232, RS 422 D-sub 9 serial

interface.

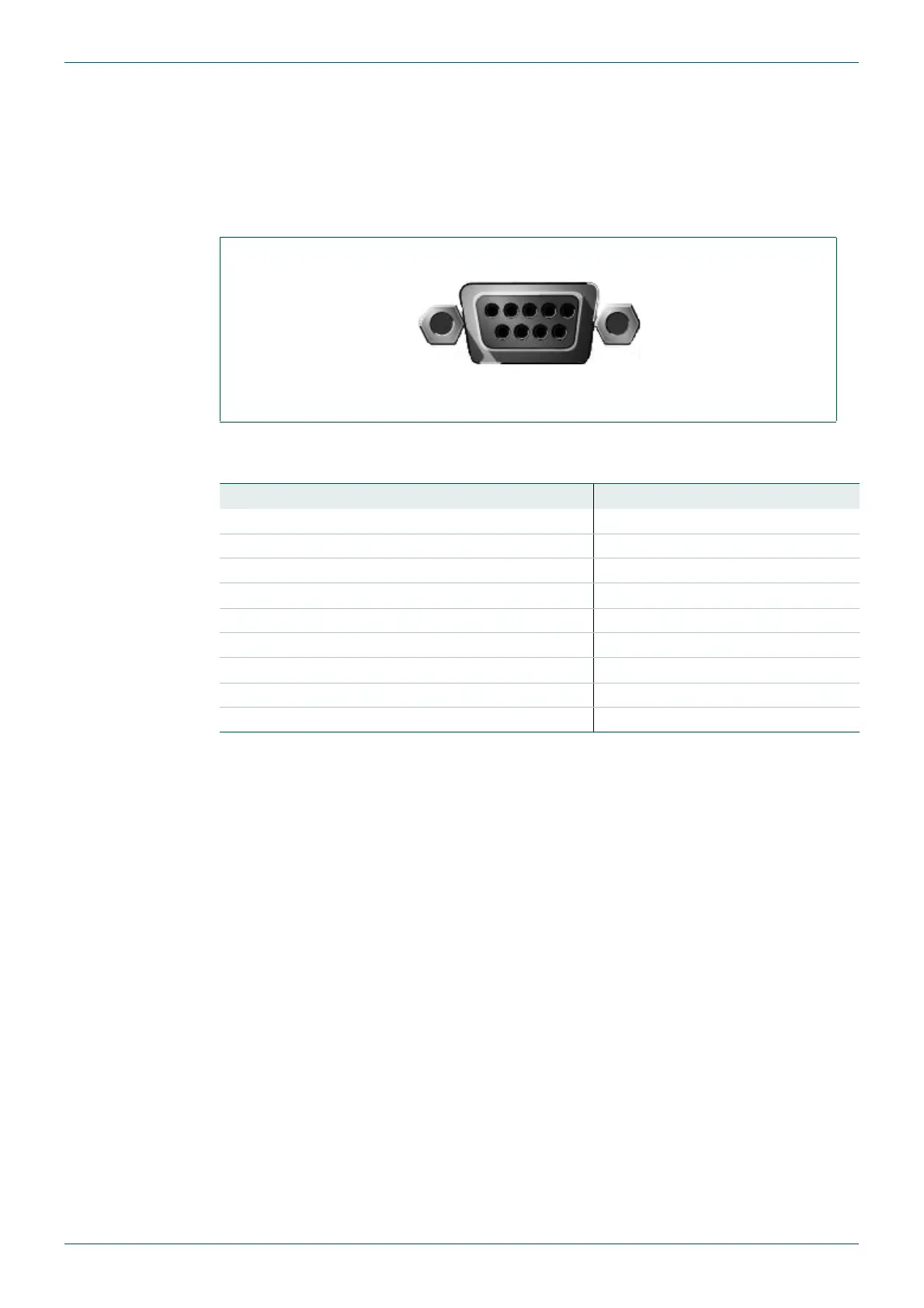

Fig 63. RS232 and RS422 Connector.

Pin Number RS232 RS422

1- GND

2Tx Rx-

3Rx Tx-

4- -

5GND -

6- -

7- Rx+

8- Tx+

9- -

Table 46. RS232 and RS422 Connector.
