* The layout sequence of the ES can be changed by pressing the Rotation
button on the toolbar.

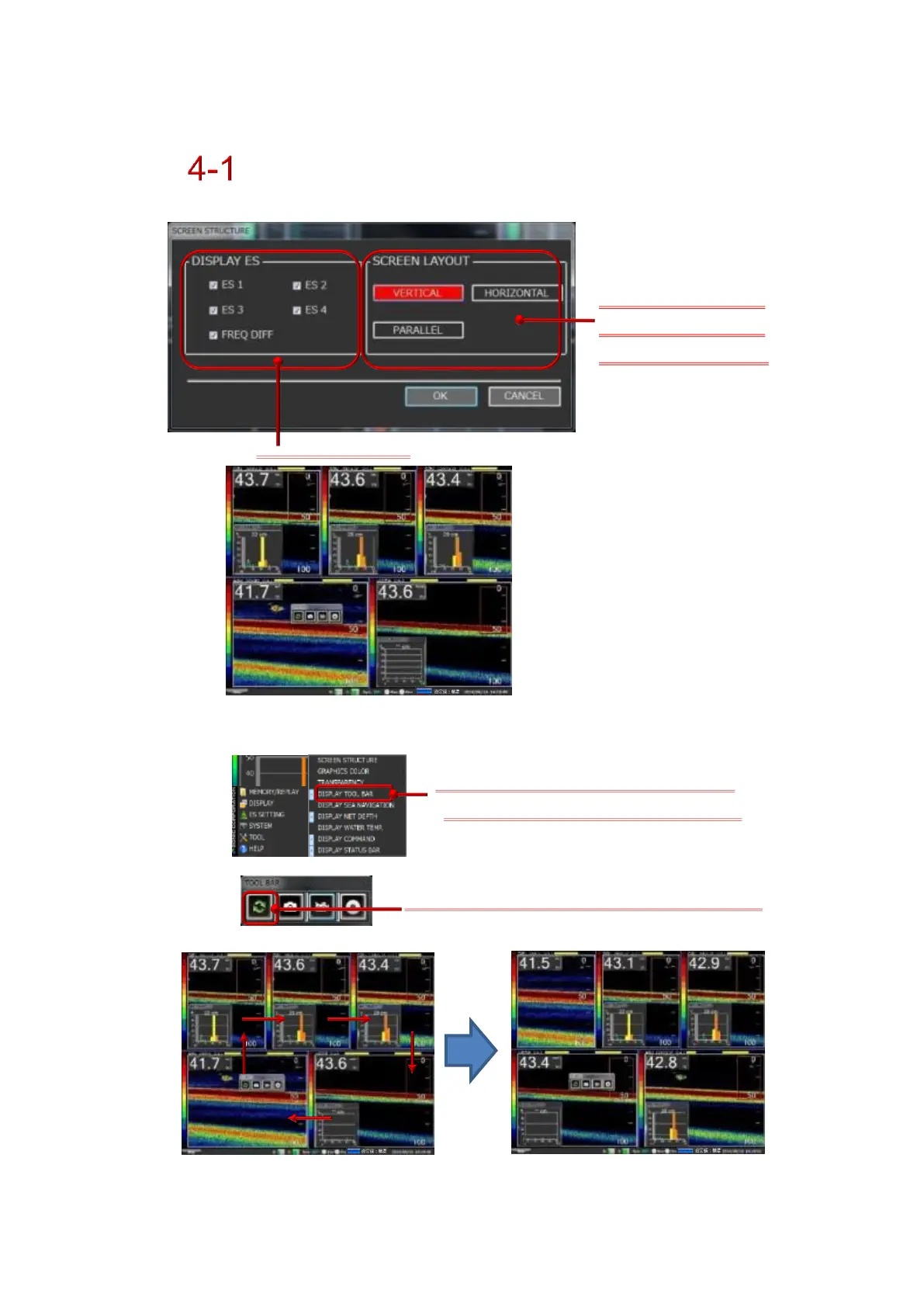

When selecting a 5-window screen structure (Four transducers must be
connected).
）
The displayed layout is
the same regardless of
which button is selected.
Select all checkboxes.
Select Display using the menu button, and
then press the L key using Display Toolbar.
Press the Rotation button, and then press the L key.
Note: The fish length graph, TS graph, and trace graph are valid only at
frequencies of 38, 70, and 120 kHz.
