DISPLAY TOOL BAR
The tool bar is used to start and stop the screen rotation, and screen
recording and the data recording.

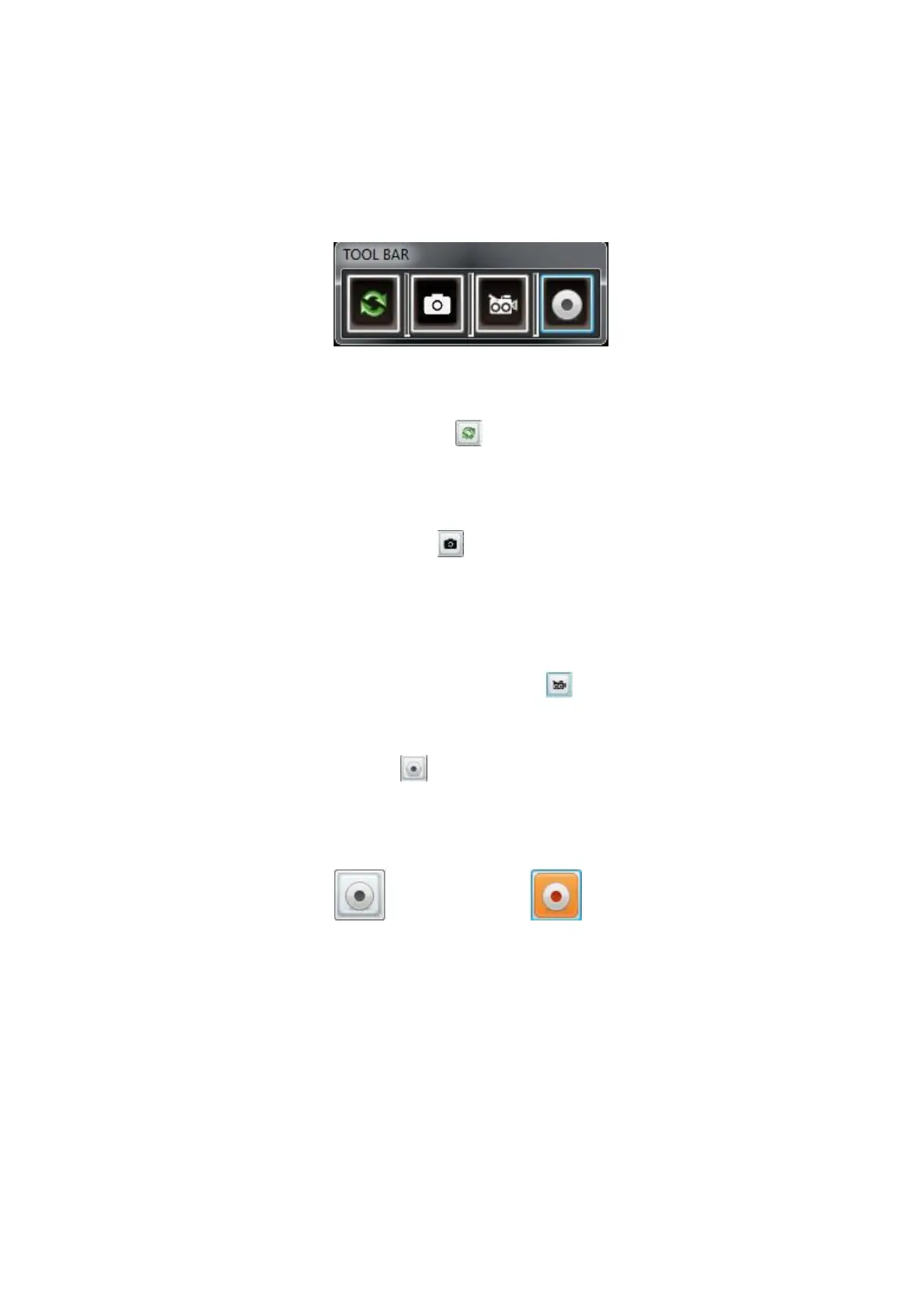

Fig. 3-8 TOOL BAR screen
(1) Screen rotation button
When several ES screens are displayed, press the screen rotation
button to change the screen display position. This function is disabled
in this system.
(2) Picture capture button
Press the picture capture button to capture the current screen and
save it in the specified folder.
When the button is pressed, its background color turns orange for a moment.
The folder location is specified in Section 2-15-7.
(3) Consecutive picture capture button
This function is described in Section 2-15-8.
(4) Recording button
Press the recording button to start recording according to the setting
specified for record setting.
While recording is underway, the recording button changes as follows:
(Recording OFF) (Recording ON)
Fig. 3-9 Recording button
<Common specifications while recording>
(1) Recording stops when:
i) The RECORDING button is re-pressed.
ii) The remaining capacity of the storage medium becomes 10MB or less.
(2) If the power is out while recording, the contents in the file cannot be
guaranteed.
