II-83

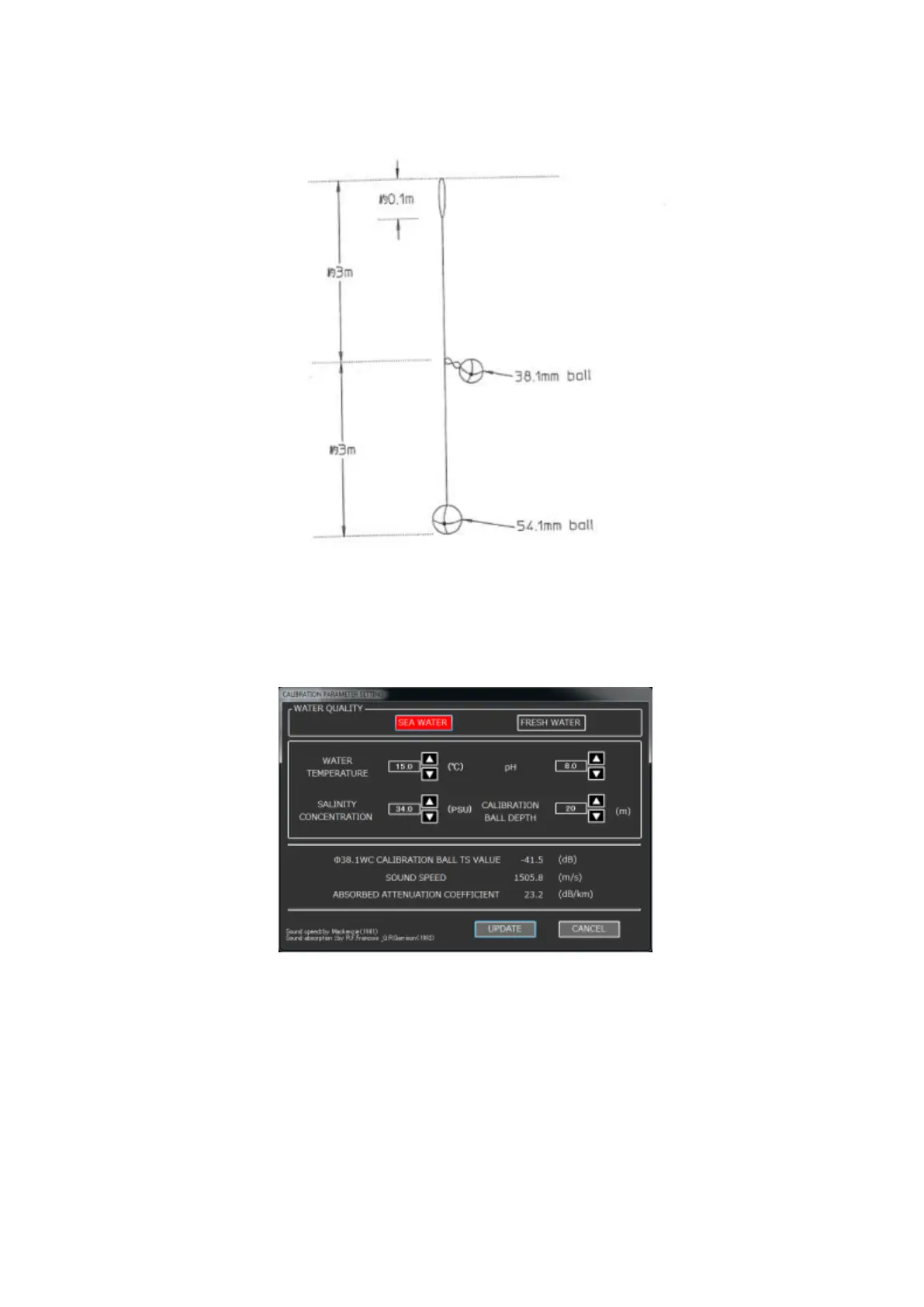

Connect the weight as shown in the figure below. (See Fig. 2-92.)
Fig. 2-92 Preparation of the calibration balls
Enter the acquired ocean environment data using the figure below,
which is set out in Section 2-16-2. (See Fig. 2-93.)
Fig. 2-93 CALIBRATION PARAMETER SETTING screen
or weight
