Fig. 2-97 Calibration ball mounting image drawing
2-16-9-3 Measurement
1. Before performing calibration, display the trace graph, set the cutoff
angle to maximum, check the screen, then move the calibration ball
using the reel of the fishing rod to the vicinity of the center. This will
facilitate the subsequent calibration work. (See Section 2-11)

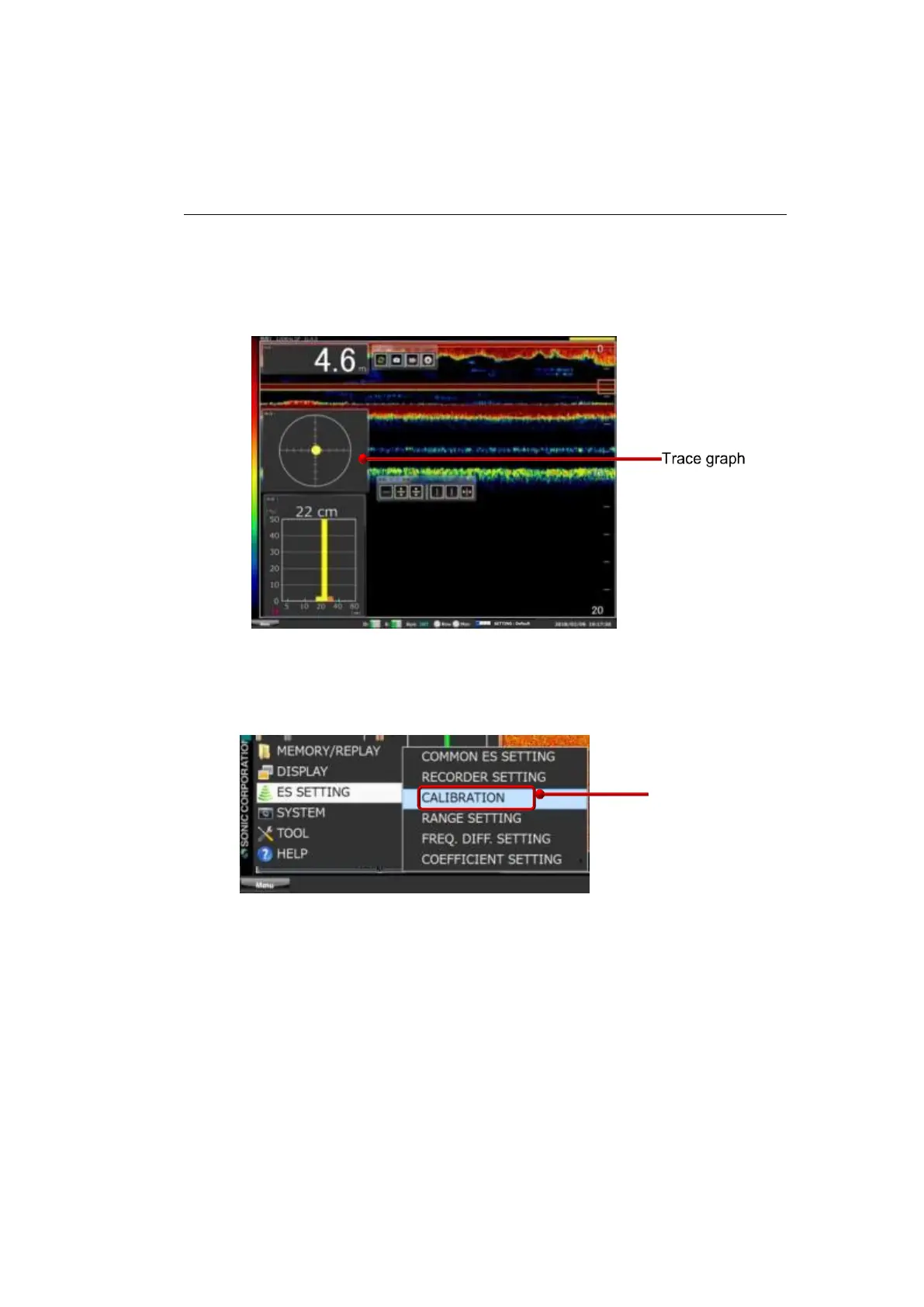

Fig. 2-98 Trace graph window prior to calibration
2. Change the screen to the calibration mode.
Fig. 2-99 Calibration mode selection
