Instruction Manual for AS380 Series Elevator Integrated Drive Controller
49
Chapter 4 The Wiring Of Elevator integrated Drive Controller
4.7.1.1 Line-up terminal for incremental ABZ 12V PG card
Terminal line up for incremental ABZ 12V PG card (AT.T025), see Fig. 4.20.

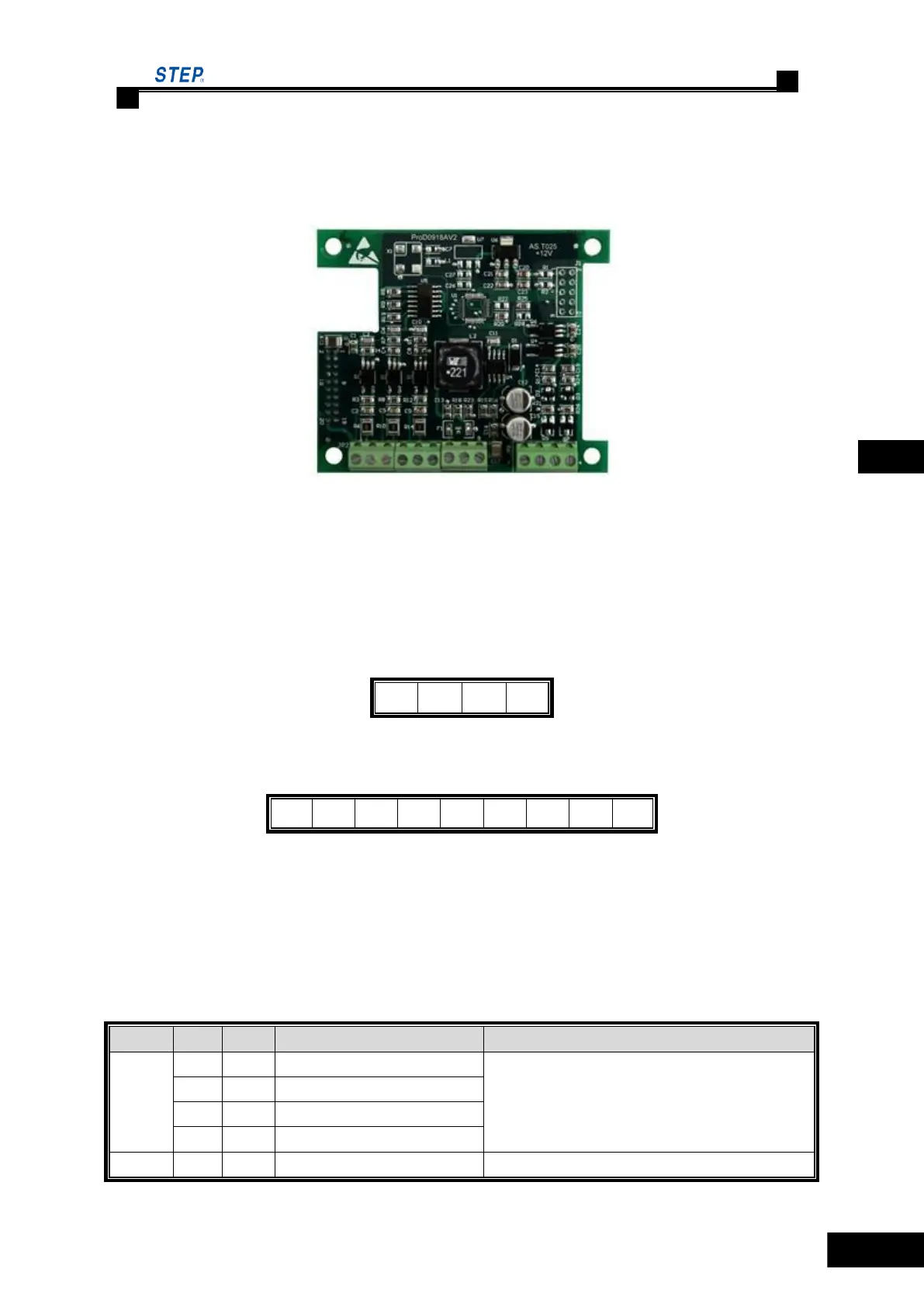

Fig. 4.20 Terminal line up for incremental ABZ 12V PG card
4.7.1.2 Incremental ABZ 12V PG card terminal label
Terminal label for incremental ABZ 12V PG card is as follows:
JP3 divided frequency output terminal:
Fig. 4.21 The connection JP3 terminal lables of the incremental ABZ 12V PG card
JP2 input terminal:
A+
A-
B+
B-
Z+
Z-
V+
V-
PE
Fig. 4.22 The connection JP2 terminal lables of the incremental ABZ 12V PG card
4.7.1.3 Incremental ABZ 12V PG card terminal function specification
Incremental ABZ 12V PG card terminal function specification, see table 4.8.
Table 4.8 Incremental ABZ 12V PG card terminal function specification
Name
Pin No
Label
Function
Specification
Divided
frequency
output
JP3.1
FA
Divided frequency output, phase A
Triode open collector (max. output frequency 100kHz)
JP3.2
0V
24V GND
JP3.3
FB
Divided frequency output, phase B
JP3.4
0V
24V GND
Encoder
JP2.1
A+
Phase A signal +
Open collector/push-puff, max input frequency 100kHz
FA
V0
FB
V0
