STEP AS380 Series User Manual

Instruction Manual for AS380 Series Elevator Integrated Drive Controller
53
Chapter 4 The Wiring Of Elevator integrated Drive Controller
Fig. 4.28 Wiring diagram for encoder with SIN/COS differential signal output

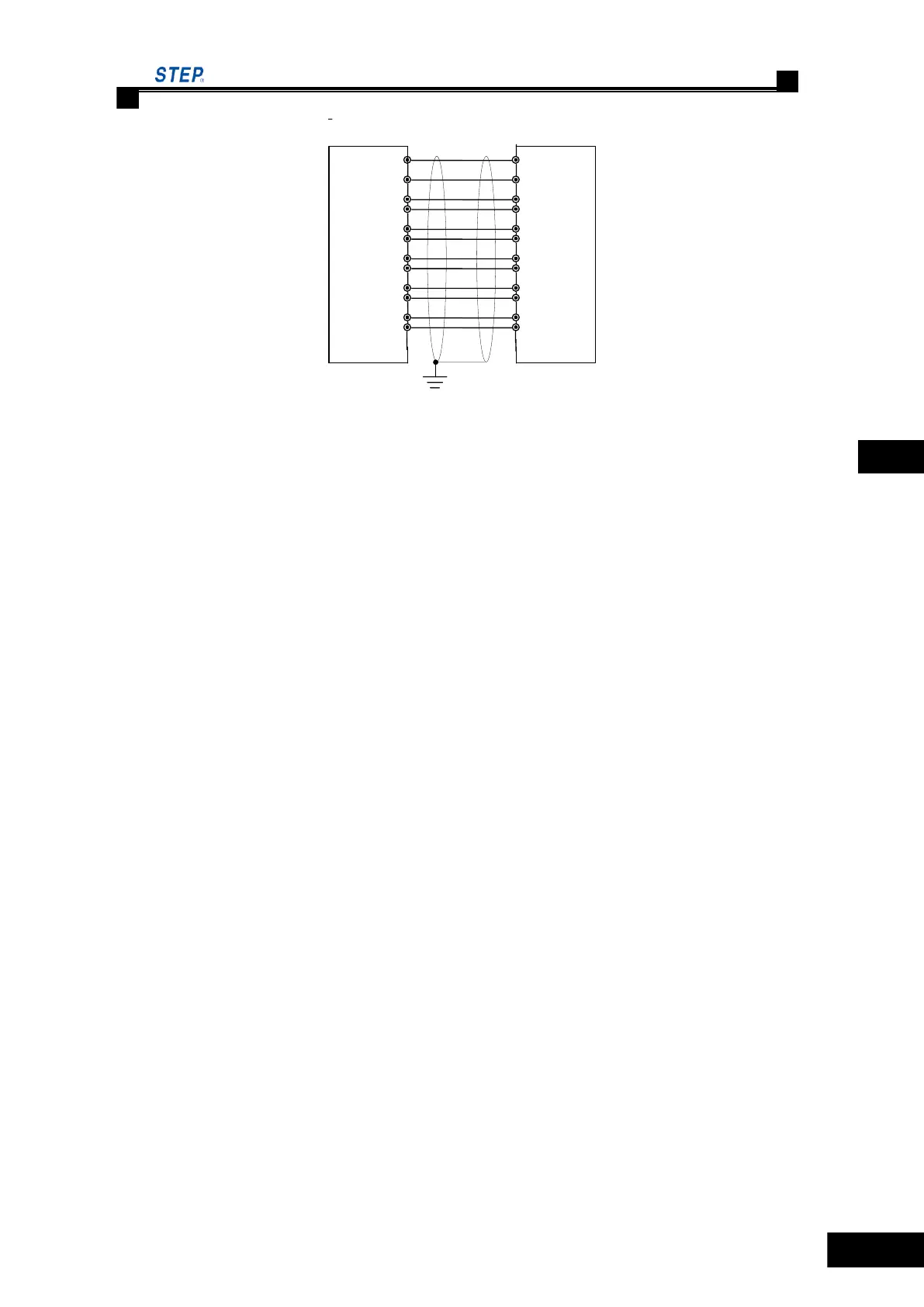

4.7.2.5 SIN/COS PG card encoder signal transformation cable
In order to simplified on-site wiring, SIN/COS PG card equips an encoder signal cable with
them from factory. It transfers encoder signal to a type D plug with 15 pins. Detail specifications
show in Fig. 4.29.
SIN/COS Encoder
5V
0V
A+
Shieled layer
grounding
A-
B+
B-
R+
R-
C+
C-
D+
V+
0V
A+
A-
B+
B-
R+
R-
C+
C-
D+
D-
Model：AS.T024
