STEP AS380 Series User Manual

Instruction Manual for AS380 Series Elevator Integrated Drive Controller
Chapter 5 Operator
87
Table 5.11 the operation method of car call function
Step
Key
Operator status
Remark
0
------
auto Simplex
Door Locked
1 Floor 0.00m/s
=== 00000018 ===
Elevator status window
1
Fun. Select
Para. Setup
→ Monitor
===============
Enter function selection window
2
Monitor status
Car call fucntion
→ drive conditon.
===============
Enter into monitor status
3
Press once
Monitor status
Speed curve
→ elevator call
===============
4
1 Call 1Flr.
DOWN --------
Call --------
UP --------
-
5
1 Call 1Flr.
DOWN --------
Call --------
UP --------
-
6
Press twice
1 Call 3Flr.
DOWN --------
Call --------
UP --------
*
7
↑ 1 Call 3Flr.
DOWN --------
Call --------
UP --------
*
5.2.4.7 Intelligent Debugging Module Function
1. Leveling Adjustment
step：
connect handheld operator and car board, then login in,
1） Enter <intelligent adjustment>menu，enter leveling adjustment display to change leveling
padding parameter

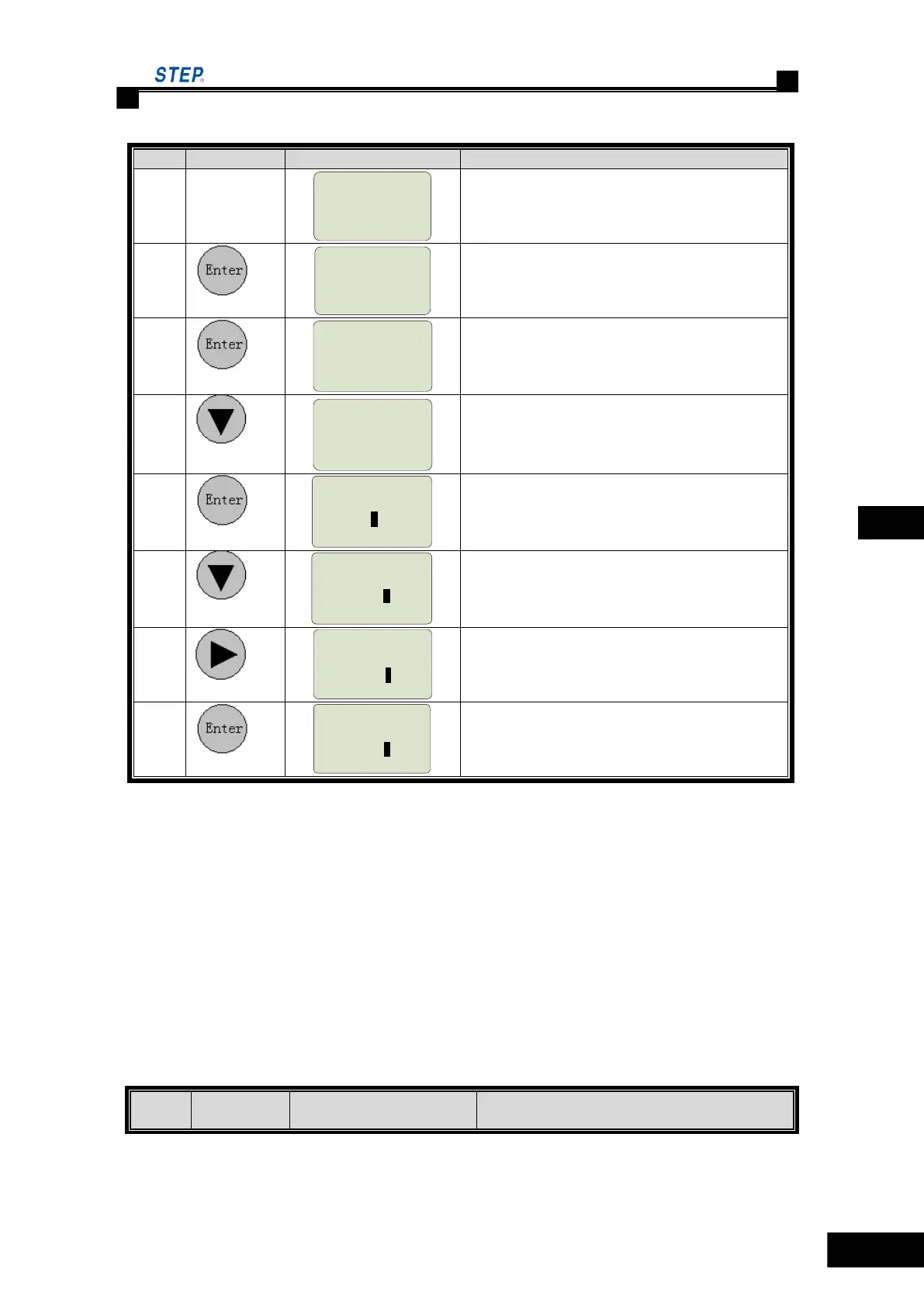

table 5.12leveling padding adjustment application method
Step
Key
Operator Status
Remarks
