Chapter 5 Operator
86
-
---------

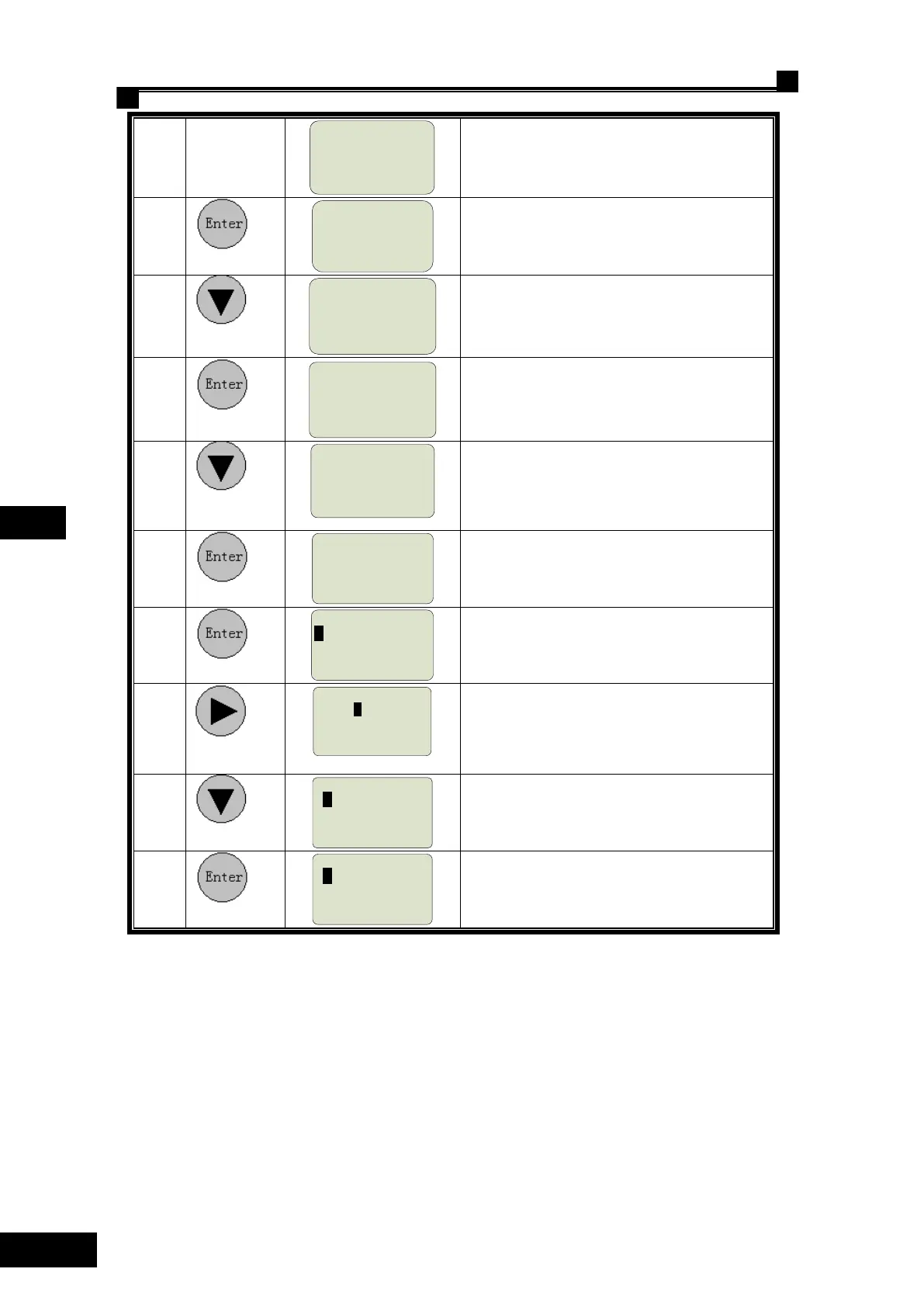

Auto Simplex
Door Locked
1 Floor 0.00m/s
=== 00000018 ===
Elevator status window
1
Fun. Select
Para. Setup
→ Monitor
==============
Enter function selection window
2
Press once
Fun. Select
adjust opeation
→ Para. Setup
==============
Press key to realize function selection
3
Para. Setup
comfort adjust
→ basic Para.
==============
Enter secondary window
4
Press 6
times
Para. Setup
Flr display
→ Input Type
===============
Press key to realize function selection
5
Input type
Input Type X0-15
F25= 51
===============
Enter parameter setting interface
6
Input type
Band brake(X9) NO
F25 = 51
**--**----------
*
Enter parameter setting
7
Press 9
times
Input Type
Band brake
inspection(x9) = NO
F25 = 51
--*-------------
-
8
Input Type
Band BK
insepection(X9)NC
F25=563
--*-------------
-
Set parameter selection
9
Input Type
Input type X0-15
F25=563
--*-------------
-
Parameter modification confirmed
When set Input Type menu，NC specifies normal close, and NO specifies normal open；
5.2.4.6 Car Call function
In this function window the registered hall call and car instruction can be observed; what‘s more,
they can be registered with operator directly, it is very helpful for elevator debugging on jobsite.
Hall call and car instruction can be registered only in Normal mode. Now take registering up hall
call of floor 3 as an example:
