STEP AS380 Series User Manual

Instruction Manual for AS380 Series Elevator Integrated Drive Controller
Chapter 5 Operator
89
2） Enter <intelligentize>menu，as the table below，enter leveling micro adjustment window
modifying leveling micro adjustment parameter

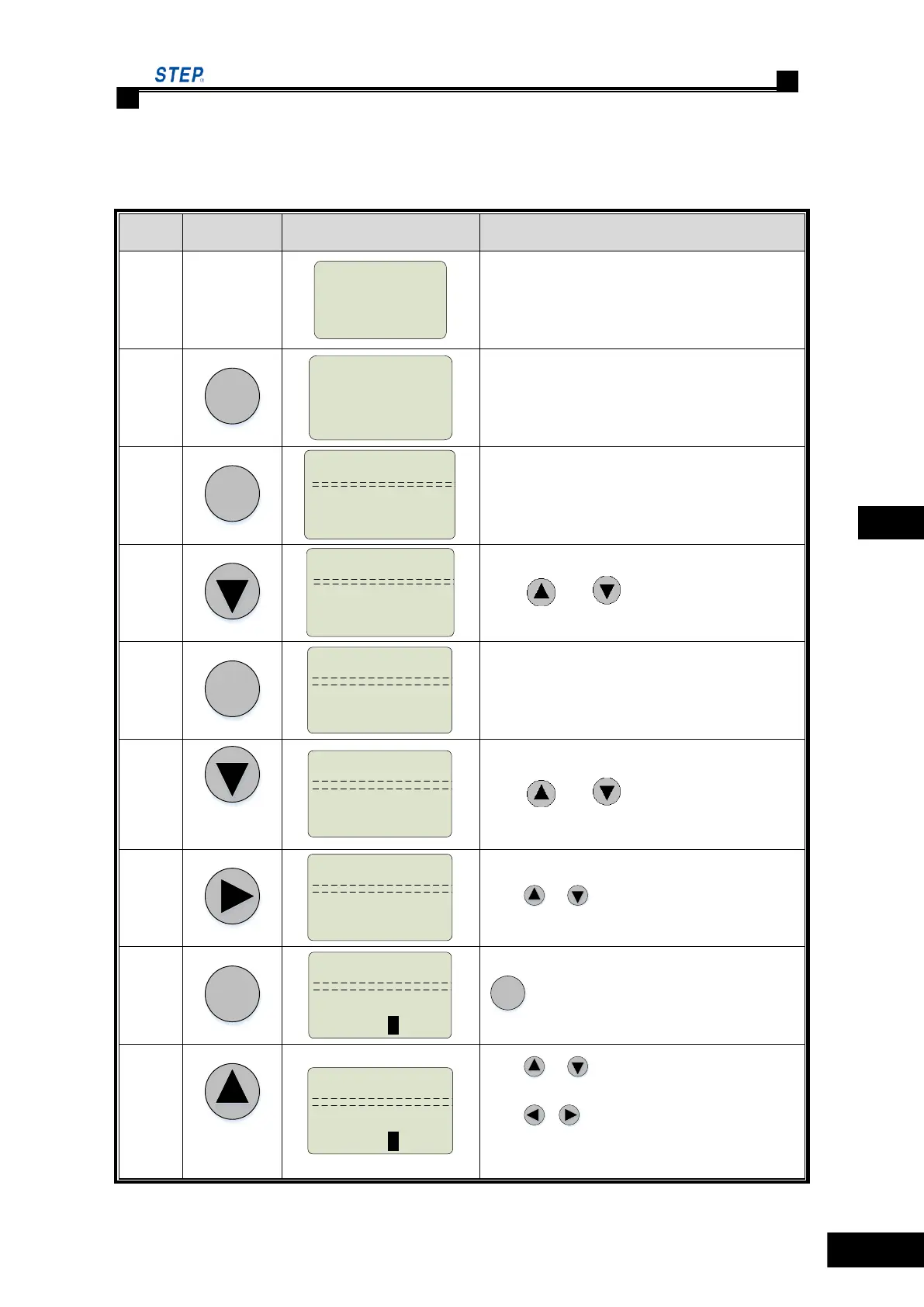

Table 5.13 leveling micro adjustment application method
Step
Key
Display on operator
Remarks
-
auto Simplex
Door Locked
1 Floor 0.00m/s
=== 00000018 ===
Elevator status window
1
Eenter
Fun. Select
Para. Setup
→ Monitor
===============
Choose intelligentize
2
Eenter
Intelligentize
Lvl.Micro Adj
→ Level Adj
Enter intelligentize
3
Intelligentize
NO/NC Teach
→ Lvl.Miero Adj
Press and to select upper or lower item
4
Eenter
Lvl.Micro Adj
1 -20
Flr UpLvl.M Adj
Enter leveling micro adjustment window
5
3times
Lvl.Micro Adj
4 -20
Flr UpLvl.M Adj
Press and to select upper or lower item
6
Lvl.Micro Adj
4 -20
Flr DnLvl.M Adj
Press and to choose up or down
7
Eenter
Lvl.Micro Adj
Up: 0 mm
4 20
0
Eenter
enter to modify
8
3times
Lvl.Micro Adj
Up: 0 mm
4 -17
3
Press and to modify parameter
Press or to shift
Modified value is up or down leveling value，leveling
