STOBER 10 | Connection
02/2019 | ID 442728.05
113

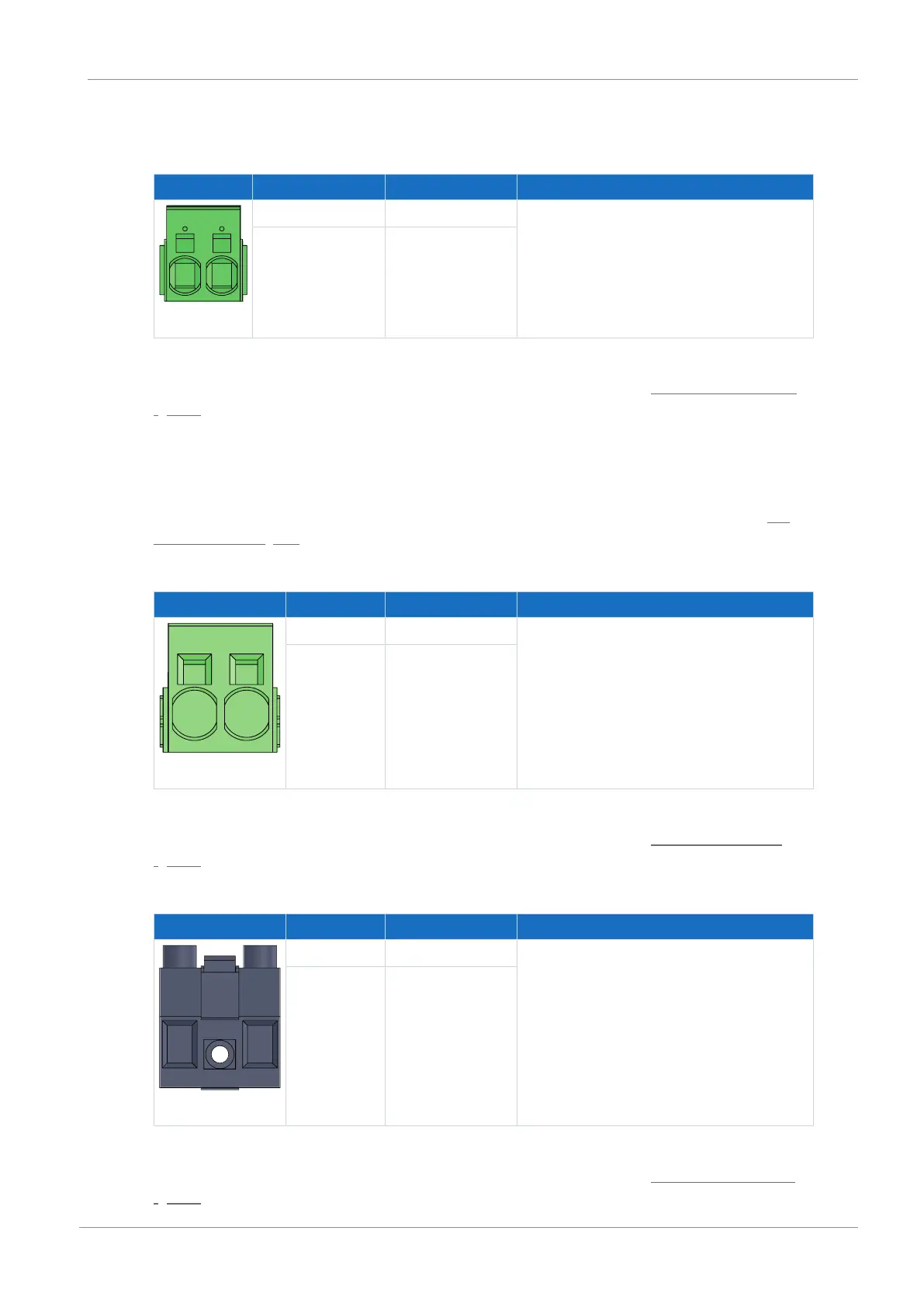

10.4.4 X21: Braking resistor
Terminal X21 is available for the connection of a braking resistor.
Terminal Pin Designation Function
1 | 2
1 RB Braking resistor connection
2 RB
Tab. 90: X21 connection description
For connecting wiring, observe the terminal specifications in the chapter ISPC 5 -STGCL-7,62
[}236].
10.4.5 X22: DC link connection
Terminal X22 is available for the DC link connection of the supply module.
For setting up the Quick DC-Link, note the information on project configuration in chapter DC
link connection [}78].
Size 2
Terminal Pin Designation Function
1 | 2
1 D− DC link connection
2 D+
Tab. 91: X22 connection description, size 2
For connecting wiring, observe the terminal specifications in the chapter ISPC 16 -ST-10,16
[}237].
Size 3
Terminal Pin Designation Function
1 | 2
1 D− DC link connection
2 D+
Tab. 92: X22 connection description, size 3
For connecting wiring, observe the terminal specifications in the chapter BUZ 10.16IT 180 MF
[}238].
