9.3 Minimum clearances
Note the minimum clearances for installation below.
Drive controllers and supply modules
B A
C C 35
D

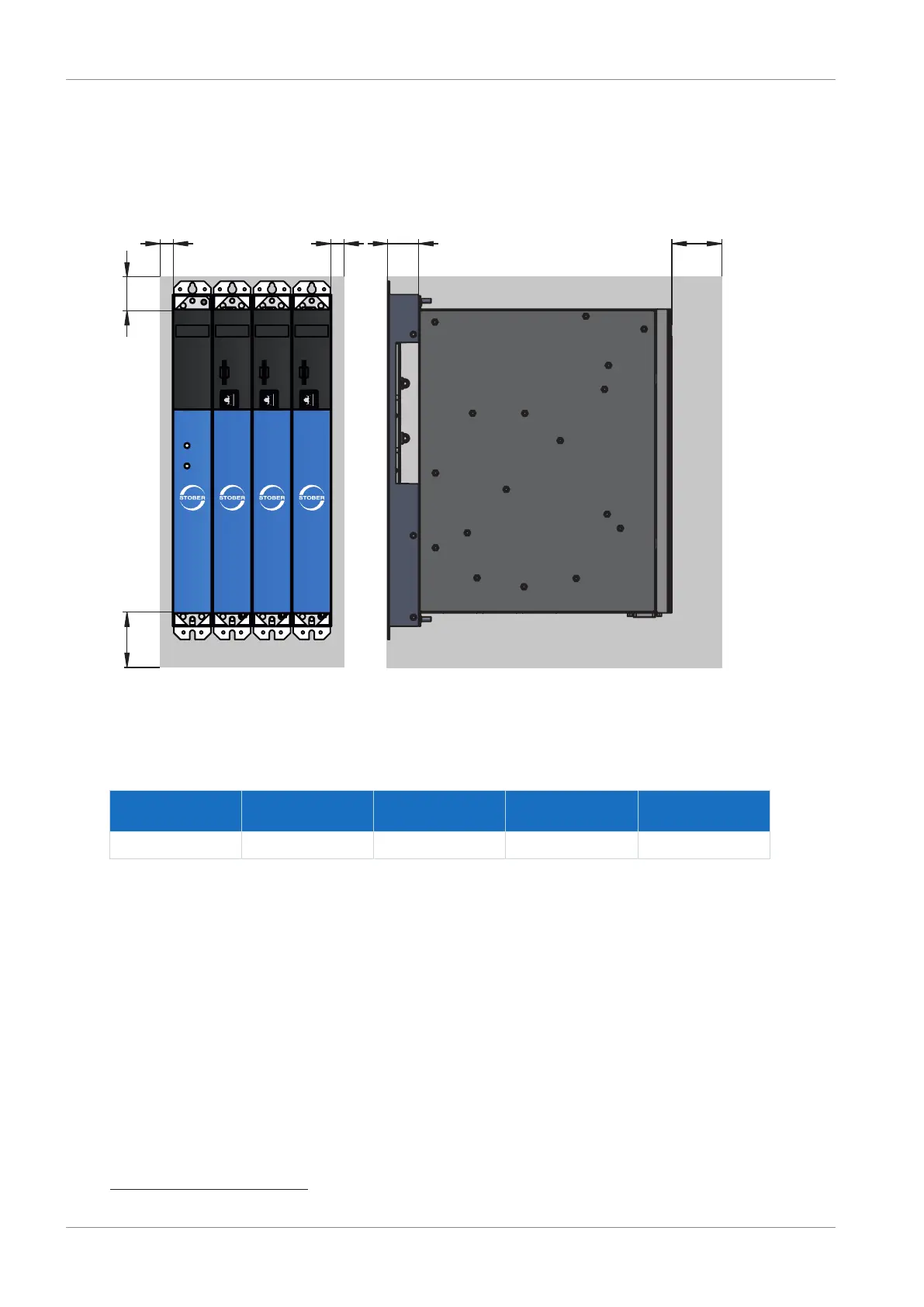

Fig.24: Minimum clearances
The specified dimensions refer to the outside edges of the drive controller or supply module
including the Quick DC-Link rear section module.
Minimum
clearance
A (above) B (below) C (on the side) D (in front)
All sizes 100 200 5 50
9
Tab. 79: Minimum clearances [mm]
Chokes and filters
Avoid installation below drive controllers or supply modules. For installation in a control cabinet,
a distance of approximately 100mm to other neighboring components is recommended. This
distance ensures proper heat dissipation for chokes and filters.
Braking resistor
Avoid installation below drive controllers or supply modules. In order for heated air to flow out
unimpeded, a minimum clearance of approximately 200mm must be maintained in relation to
neighboring components or walls and approximately 300mm must be maintained to
components above or ceilings.
9
Minimum clearance to be taken into account for permanent connection of the X9 service interface
