6 | Technical data STOBER
42
02/2019 | ID 442728.05
6.2.2 Dimensions
w
d
h1
h3
h2
a
b

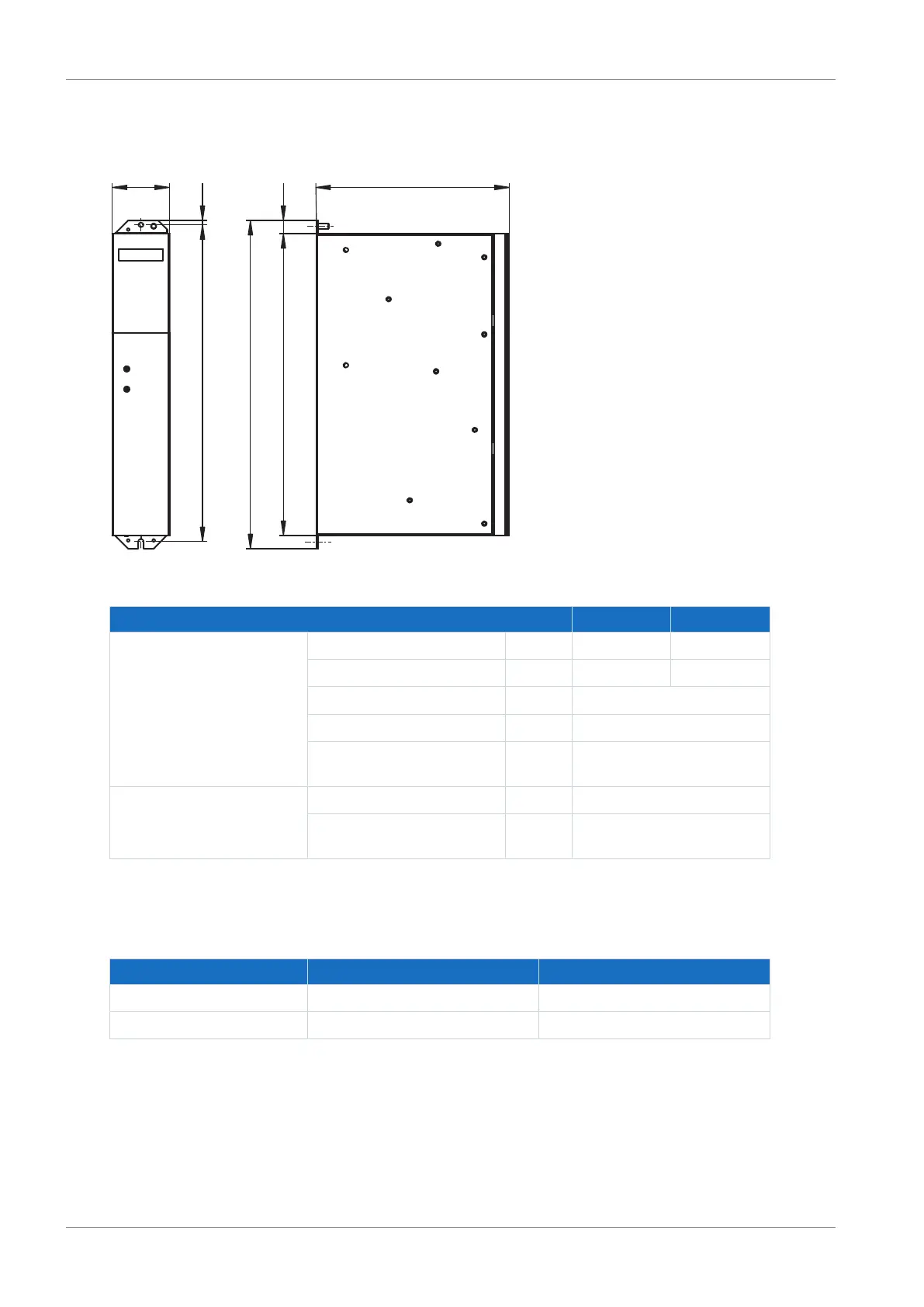

Fig.5: PS6 dimensional drawing
Dimension Size 2 Size 3
Supply module Width w 45 65
Depth d 204 219
Body height h1 343
Fastening clip height h2 15
Height incl.
fastening clips
h3 373
Fastening holes (M5) Vertical distance a 360+2
Vertical distance to the upper
edge
b 5
Tab. 21: PS6 dimensions [mm]
6.2.3 Weight
Type Weight without packaging [g] Weight with packaging [g]
PS6A24 2680 4180
PS6A34 3820 4920
Tab. 22: PS6 weight [g]
