6 | Technical data STOBER
66
02/2019 | ID 442728.05
Information
The temperature switch reports a resistor overload. The evaluation in the form of a warning or
line-side shutdown of the power supply must take place separately, e.g. using the PS6 supply
module. Observe the wiring example for the supply module in the chapter UL-compliant
connection of the supply module [}241] to ensure UL-compliant operation.
Signal contact
Switching capacity of the signal contact:
2A / 24V
DC
Dimensions
Dimension KWADQU 420×91
A 420
Tab. 64: KWADQU 420×91 dimensions [mm]
A
7126,2
20
A+30
91
A+18
60
M4
TS

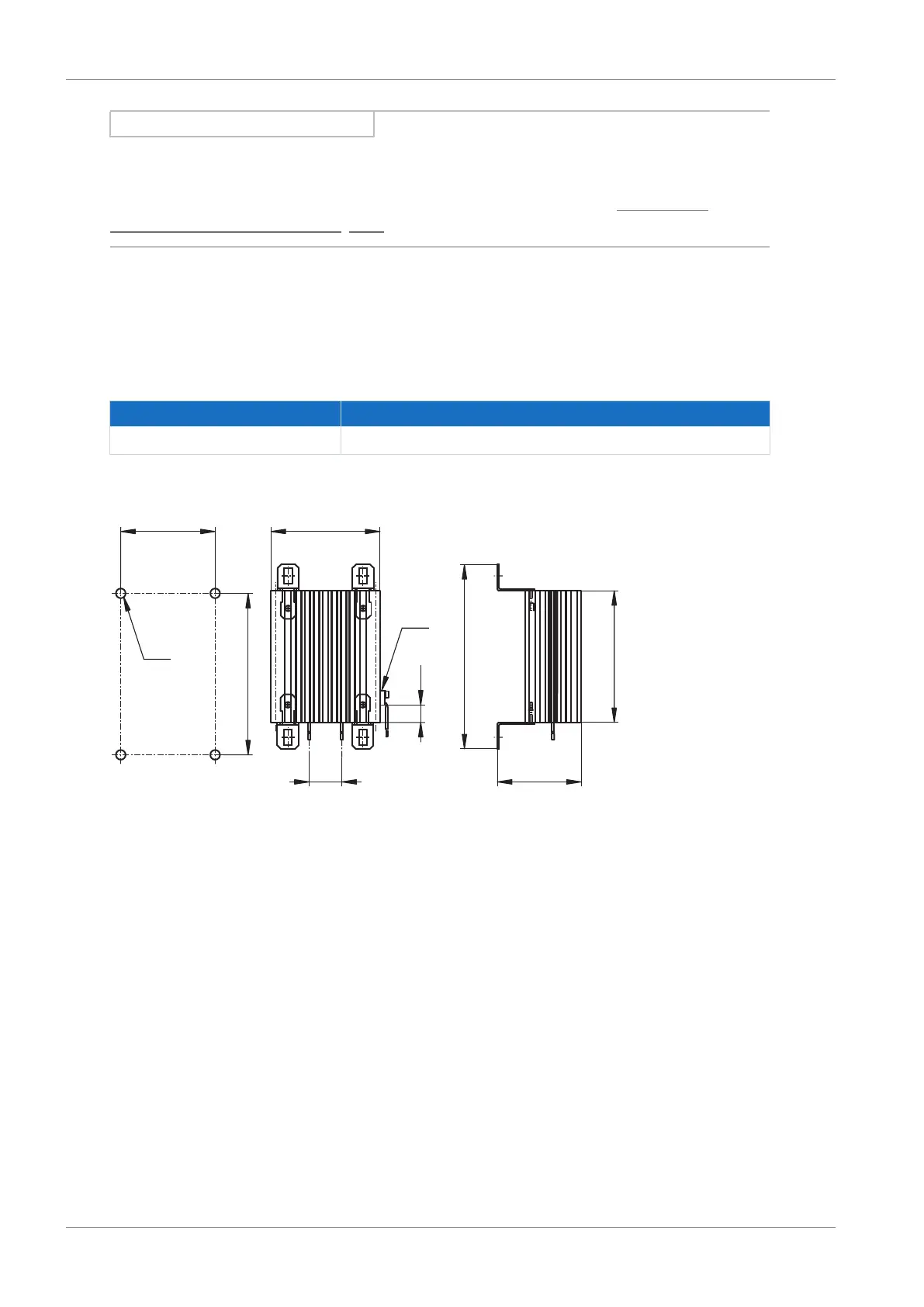

Fig.9: KWADQU 420×91 dimensional drawing
