Stober PS6A34 - Choke; Braking Resistor

9 | Installation STOBER
90
02/2019 | ID 442728.05

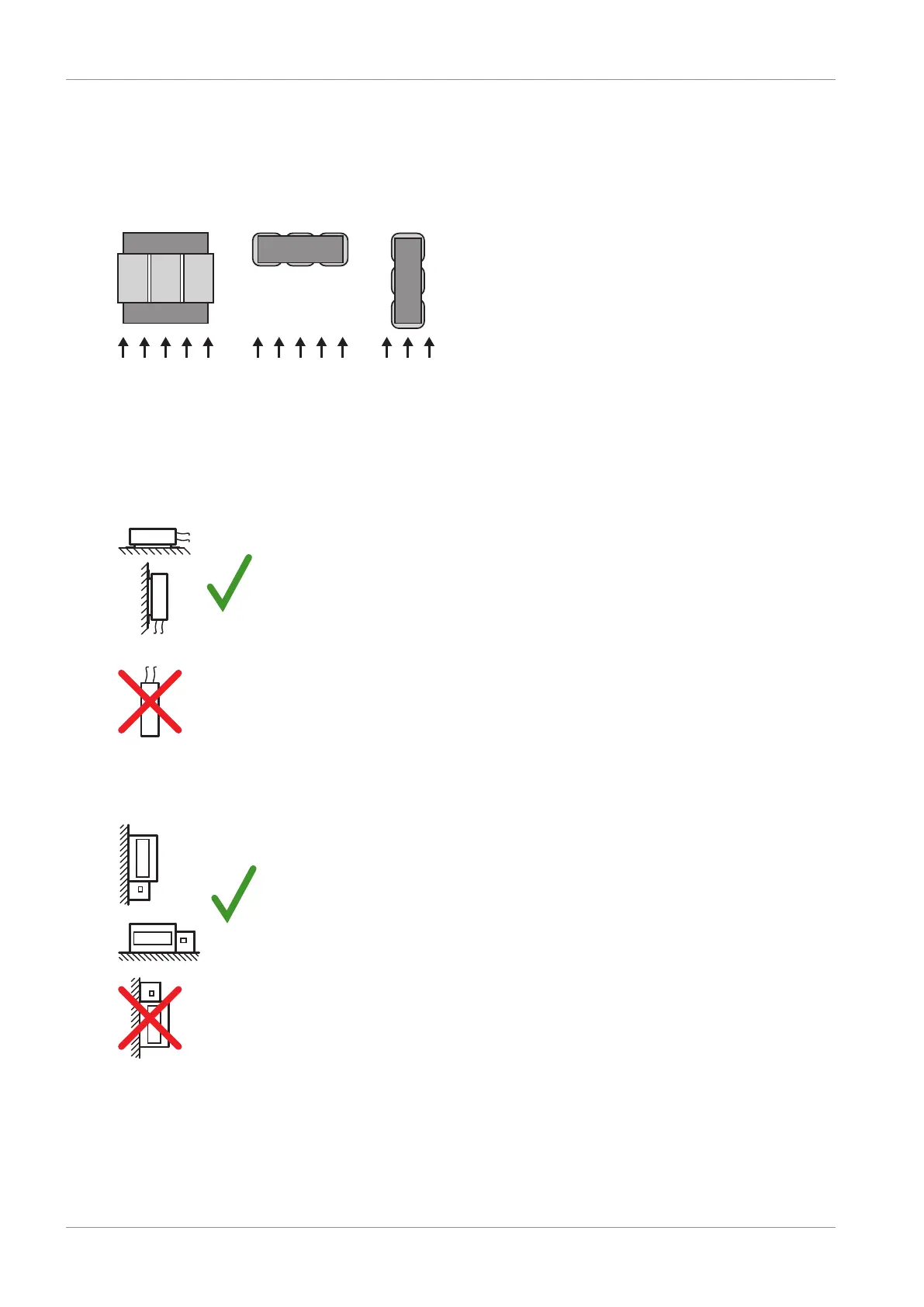

9.2.2 Choke
In relation to the flow of cooling air, the following mounting positions are permitted for the TEP
output choke:
A B C
9.2.3 Braking resistor
Note the permitted mounting positions for the braking resistor.
KWADQU flat resistor
Permitted installation:
§ On vertical surfaces with cables downwards
§ On horizontal surfaces
§ Installation outside of the control cabinet possible for
mechanical protection of the conductors
Impermissible installation:
§ On vertical surfaces with cables upwards
FZZMQU tubular fixed resistor
Permitted installation:
§ On vertical surfaces with terminals downwards
§ On horizontal surfaces
§ In control cabinets
Impermissible installation:
§ On vertical surfaces with terminals upwards, left or right
§ Outside of control cabinets
