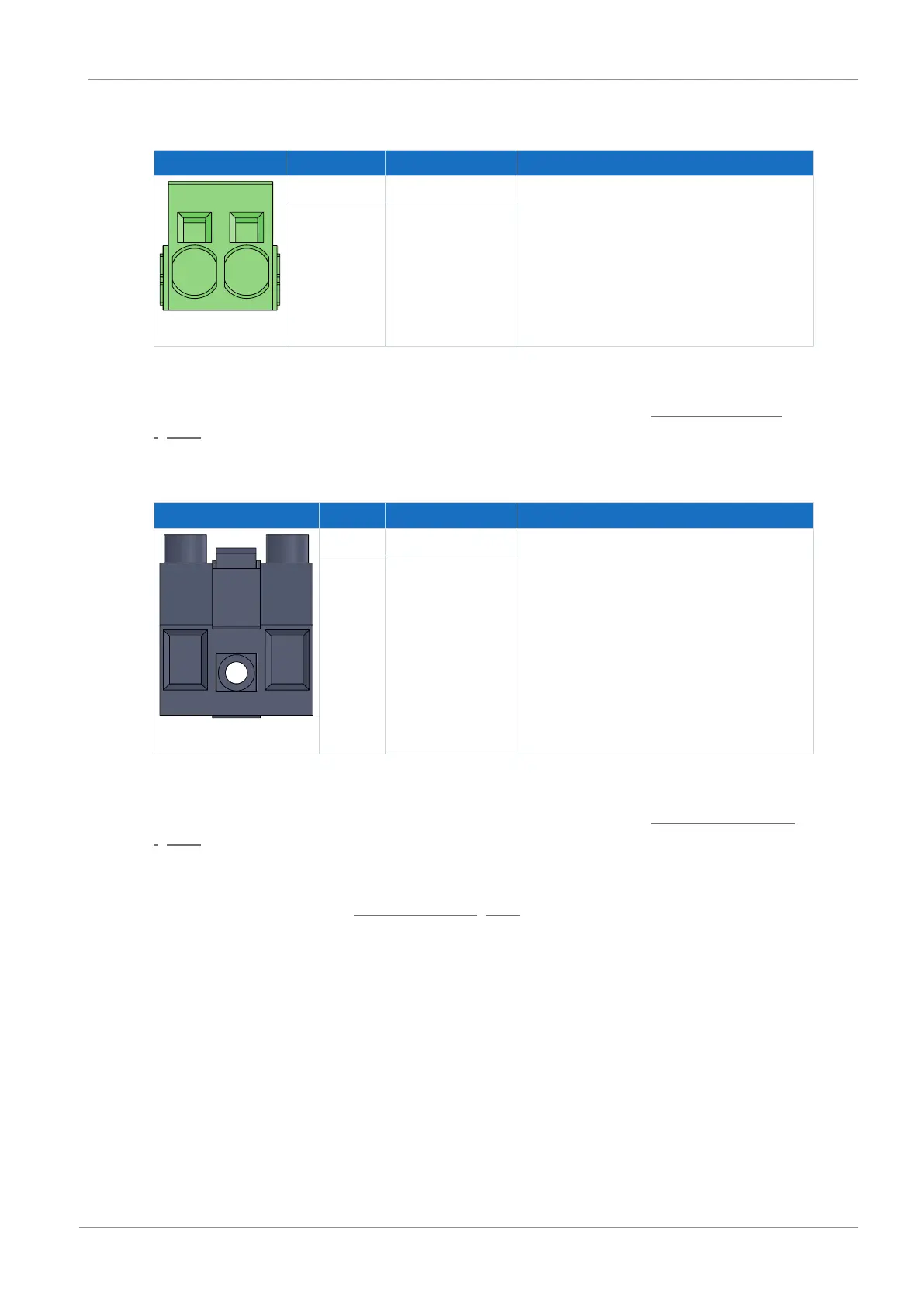

Stober PS6A34 - Tab. 122 X22 Connection Description, Sizes 1 and 2 (Single-Axis Controllers); Tab. 123 X22 Connection Description, Sizes 2 (Double-Axis Controllers) and 3

STOBER 10 | Connection
02/2019 | ID 442728.05
129
Sizes 1 and 2 (single-axis controllers)
Terminal Pin Designation Function
1 | 2
1 D− DC link connection
2 D+
Tab. 122: X22 connection description, sizes 1 and 2 (single-axis controllers)
For connecting wiring, observe the terminal specifications in the chapter ISPC 16 -ST-10,16
[}237].
Sizes 2 (double-axis controllers) and 3
Terminal Pin Designation Function
D− | D+
1 D− DC link connection
2 D+
Tab. 123: X22 connection description, sizes 2 (double-axis controllers) and 3
For connecting wiring, observe the terminal specifications in the chapter BUZ 10.16IT 180 MF
[}238].
Wiring example
The examples in the chapter Wiring examples [}239] illustrate the basic connection based on a
DC link connection with DL6B Quick DC-Link.
