13.2 Drive controller
STOBER drive controllers have diagnostic LEDs that visually indicate the state of the drive
controller as well as the states of the physical connection and communication.
3
2
1
5
4
Err
Run
FSoE

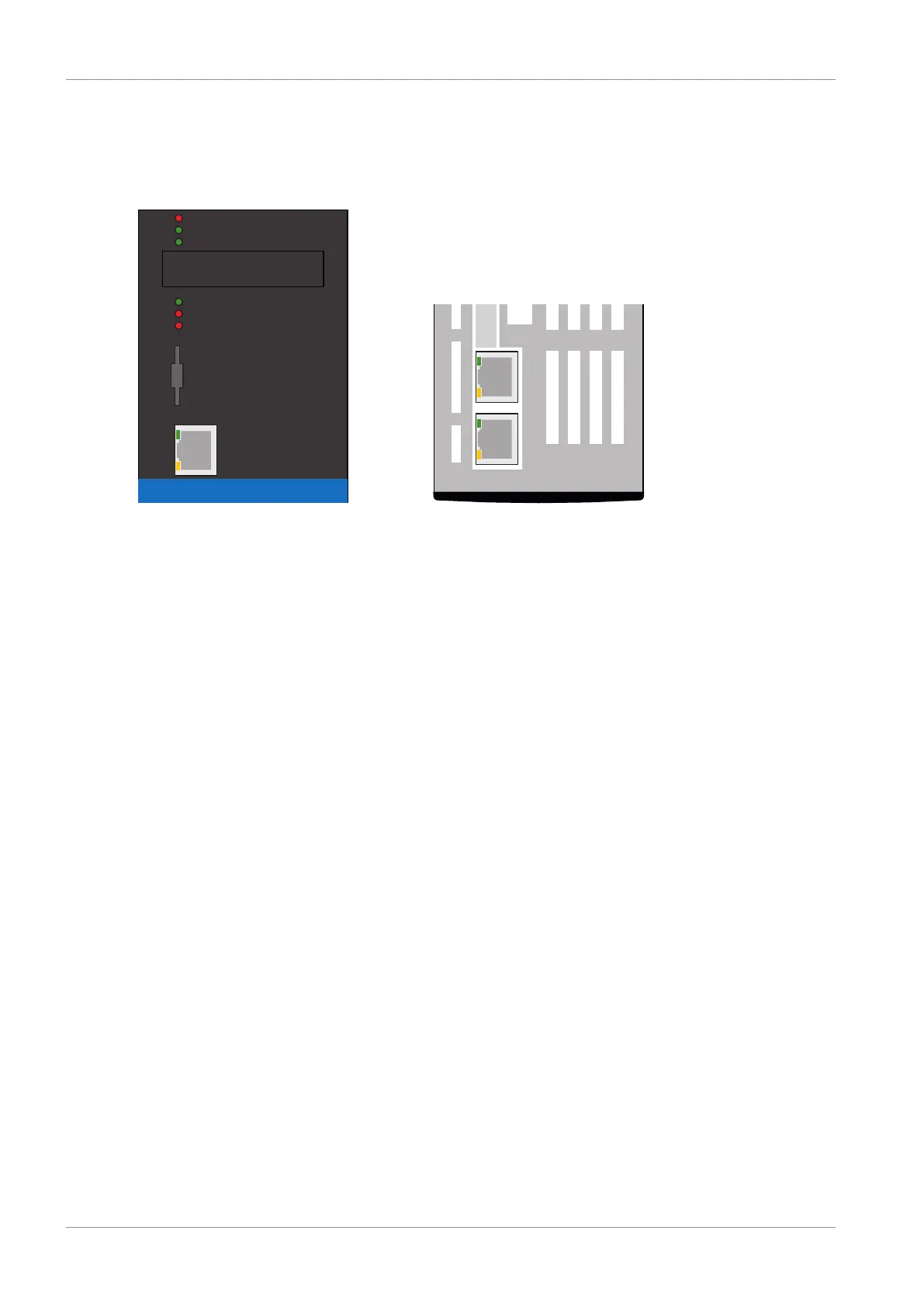

Fig.34: Positions of the diagnostic LEDs on the front and top of the drive controller
1 Fieldbus state
2 FSoE state
3 Drive controller state
4 Service network connection
5 Fieldbus network connection
