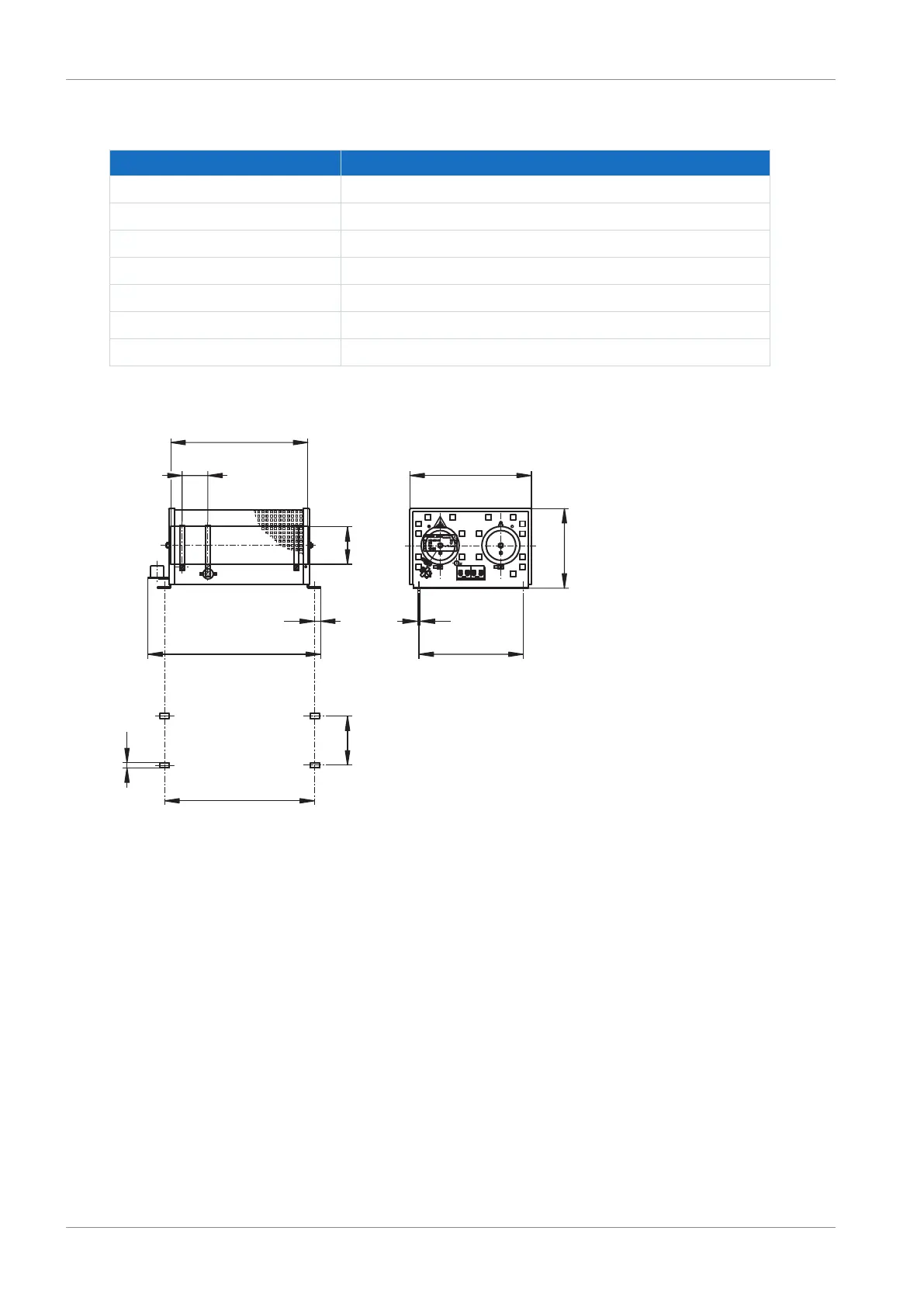

Stober PS6A34 - Fig. 10 FZZMQU 400×65 Dimensional Drawing; Tab. 67 FZZMQU 400×65 Dimensions [MM]

6 | Technical data STOBER
68
02/2019 | ID 442728.05
Dimensions
Dimension FZZMQU 400×65
L × D 400 × 65
H 120
K 6.5 × 12
M 426
O 475
R 185
U 150
Tab. 67: FZZMQU 400×65 dimensions [mm]
R
H
U
K
L
40
øD
10
O
M
U
K
Fig.10: FZZMQU 400×65 dimensional drawing
