Stober PS6A34 - Fig. 14 Derating the Nominal Current Depending on the Clock Frequency; Fig. 15 Derating the Nominal Current Based on Surrounding Temperature

STOBER 6 | Technical data
02/2019 | ID 442728.05
73
0
5
10
15
20
25
30
35
40
0 100 200 300 400 500 600 700
1
2
I [A]
N
f [Hz]

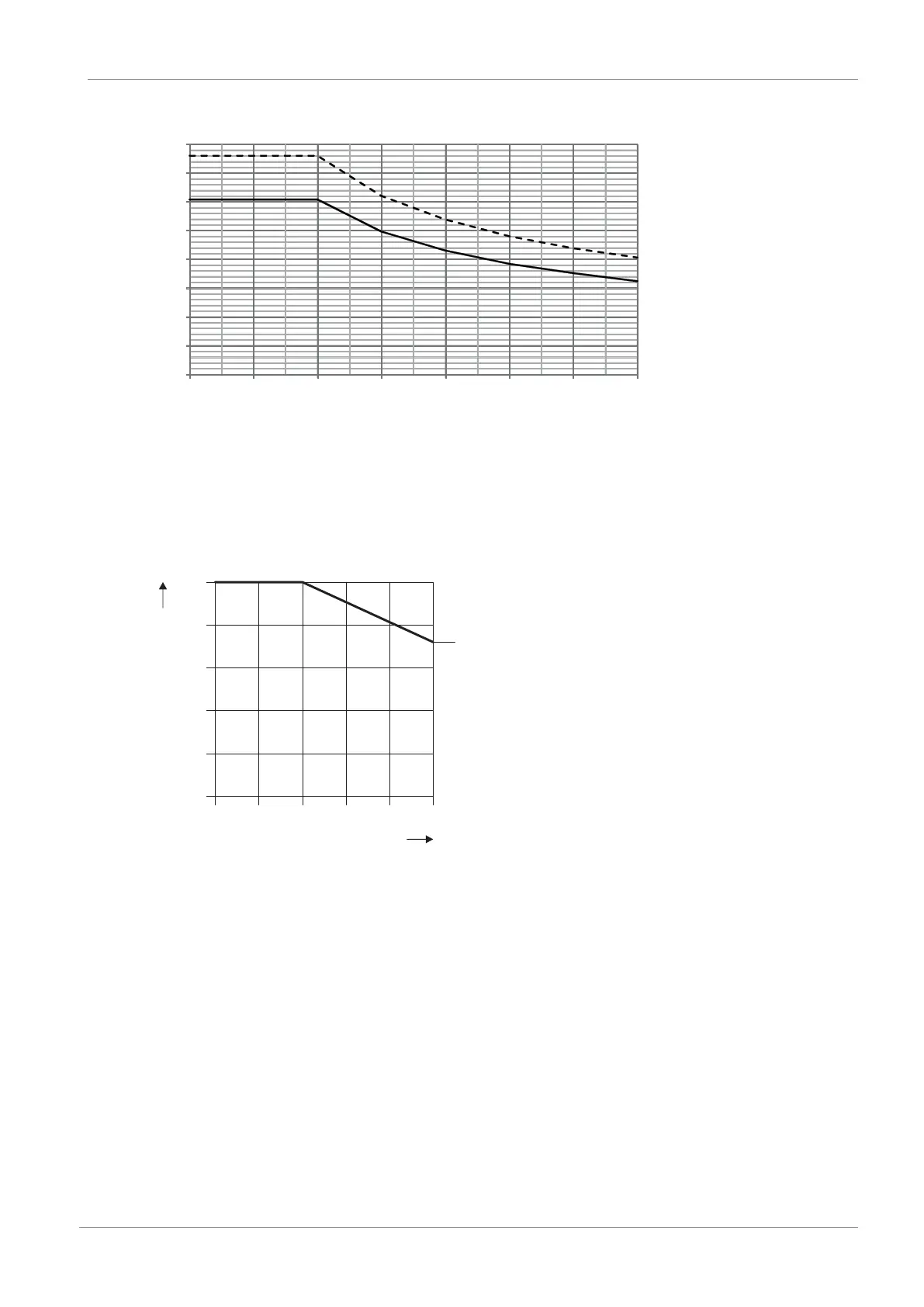

Fig.14: Derating the nominal current depending on the clock frequency, TEP4020-0RS41
1 4kHz clock frequency
2 8kHz clock frequency
Derating – Effect of surrounding temperature
72 %
20 30 40 50 60 70
20
0
40
100
60
80
72 %
I [%]
N
Surrounding temperature [°C]
Fig.15: Derating the nominal current based on surrounding temperature
