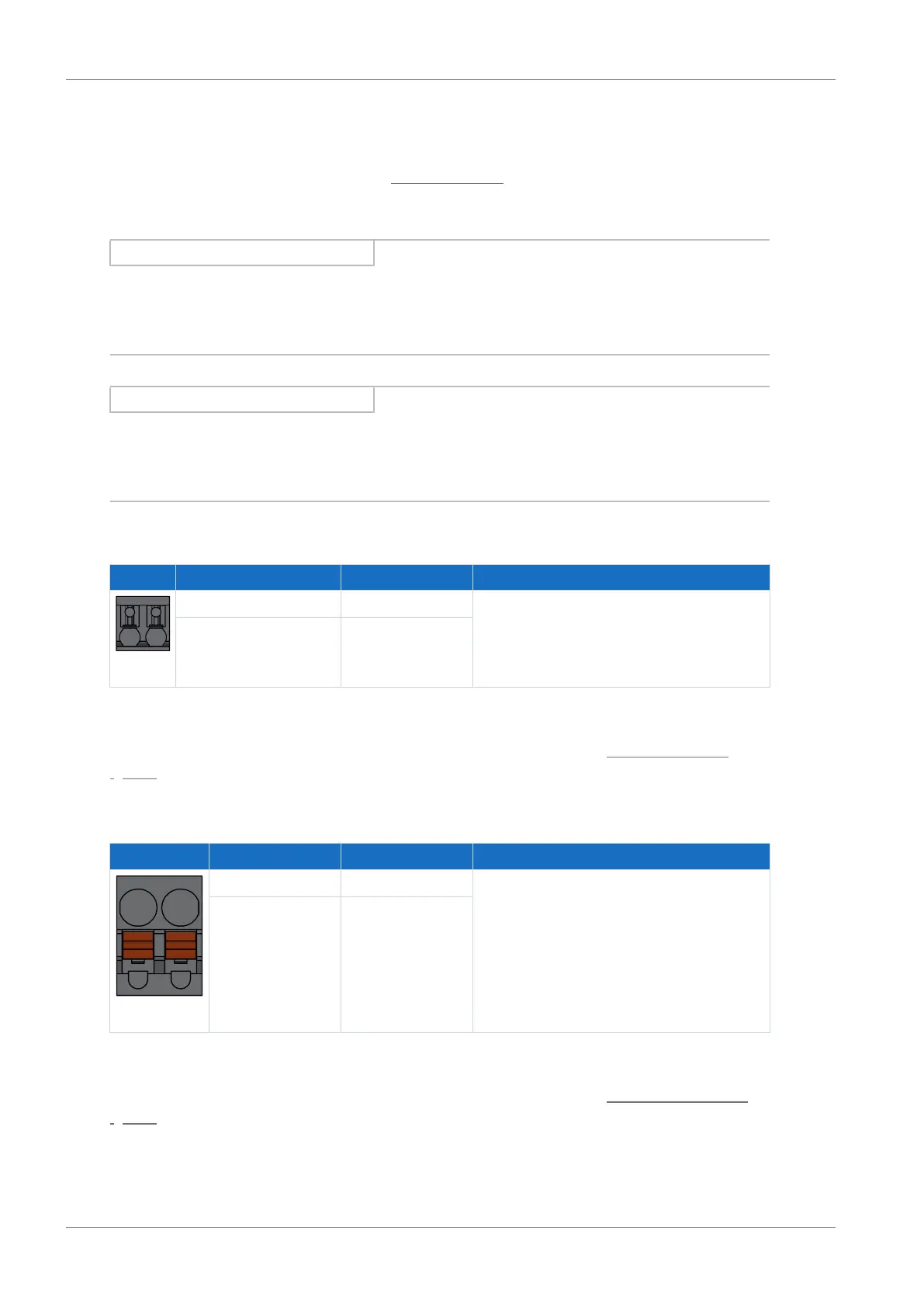

10.5.3 X2A: Motor temperature sensor A
The motor temperature sensor of axis A is connected to terminal X2A. All device types of the
SI6 drive controller have connections for PTC thermistors. You can connect a maximum of two
PTC triplets to X2A.
Information
Note that the evaluation of the temperature sensor is always active. If operation without a
temperature sensor is permitted, the connections must be bridged on X2. Otherwise a fault is
triggered when switching on the device.
Information
Note that a temperature sensor does not have to be connected to terminal X2 for a
HIPERFACE DSL encoder. In this case, the temperature sensor signal is transferred together
with the encoder signal over connector X4.
Sizes 0 to 2 (single-axis controllers)
Term. Pin Designation Function
7 | 8
7 1TP1+ PTC connection
8 1TP2−
Tab. 99: X2A connection description, motor temperature sensor A, sizes 0 to 2 (single-axis controller)
For connecting wiring, observe the terminal specifications in the chapter BCF 3,81 180 SN
[}233].
Sizes 2 (double-axis controllers) and 3
Term. Pin Designation Function
7 | 8
7 1TP1+ PTC connection
8 1TP2−
Tab. 100: X2A connection description, motor temperature sensor A, sizes 2 (double-axis controller) and 3
For connecting wiring, observe the terminal specifications in the chapter BFL 5.08HC 180 SN
[}233].
