13 | Diagnostics STOBER
170
02/2019 | ID 442728.05
Fault means that the connected drives must be brought to a stop immediately.
Causes:
§ Excessive temperature in the rectifier
§ Overvoltage
§ Short-circuit in the brake chopper path
§ Grid
§ Activation in the short-circuited DC link
Relay and LED state display
The relay and LEDs always display the same state. The states are displayed using the priority
list initialization/ready < Warning 1 < Warning 2 < Fault. The display of states with higher priority
replaces the display of states with lower priority (example: warning 2 overwrites warning 1).
States with a lower priority are only displayed after the higher prioritized state has been
displayed for at least 4s.

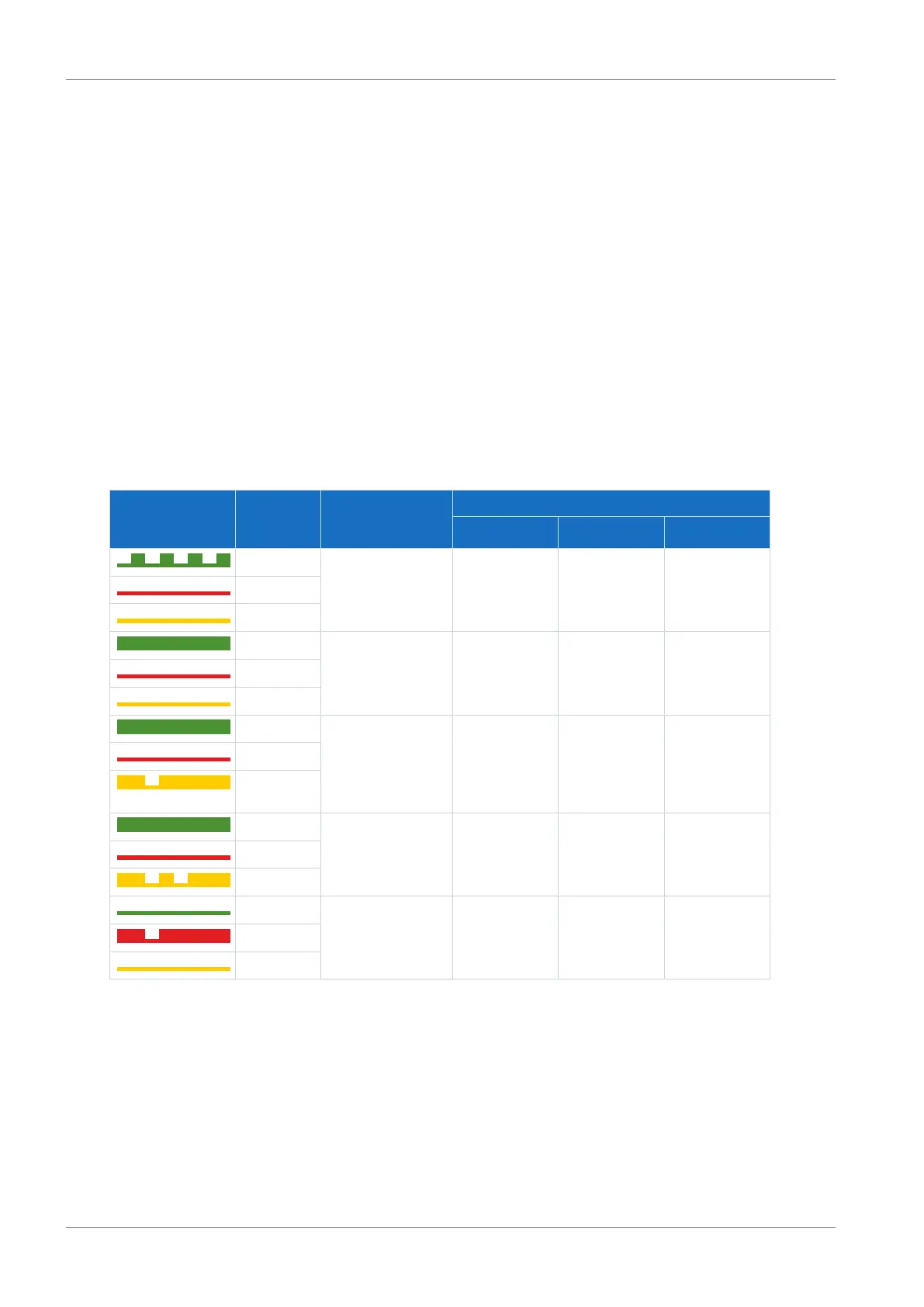

LEDs:
Green/Red/
Yellow
Behavior Description Relay (X100)
READY WARNING1 WARNING2
Flashing Initialization Open Closed Closed
Off
Off
On Ready: DC link is
charged, charging
relay is closed
Closed Closed Closed
Off
Off
On Warning 1:
Rectifier overload,
overload of the
braking resistor or
1 line phase failed
Closed Open Closed
Off
1x flash
On Warning 2: Line
phases failed
Closed Closed Open
Off
2x flash
Off Fault:
Overtemperature
in rectifier
Open Closed Closed
1x flash
Off
