Stober SC6A062 User Manual

STOBER 9 | Connection
05/2019 | ID 442790.01
107
Encoder cables – con.23 plug connector
Motor
(1)
Cable
(2)
Drive controller
(3)

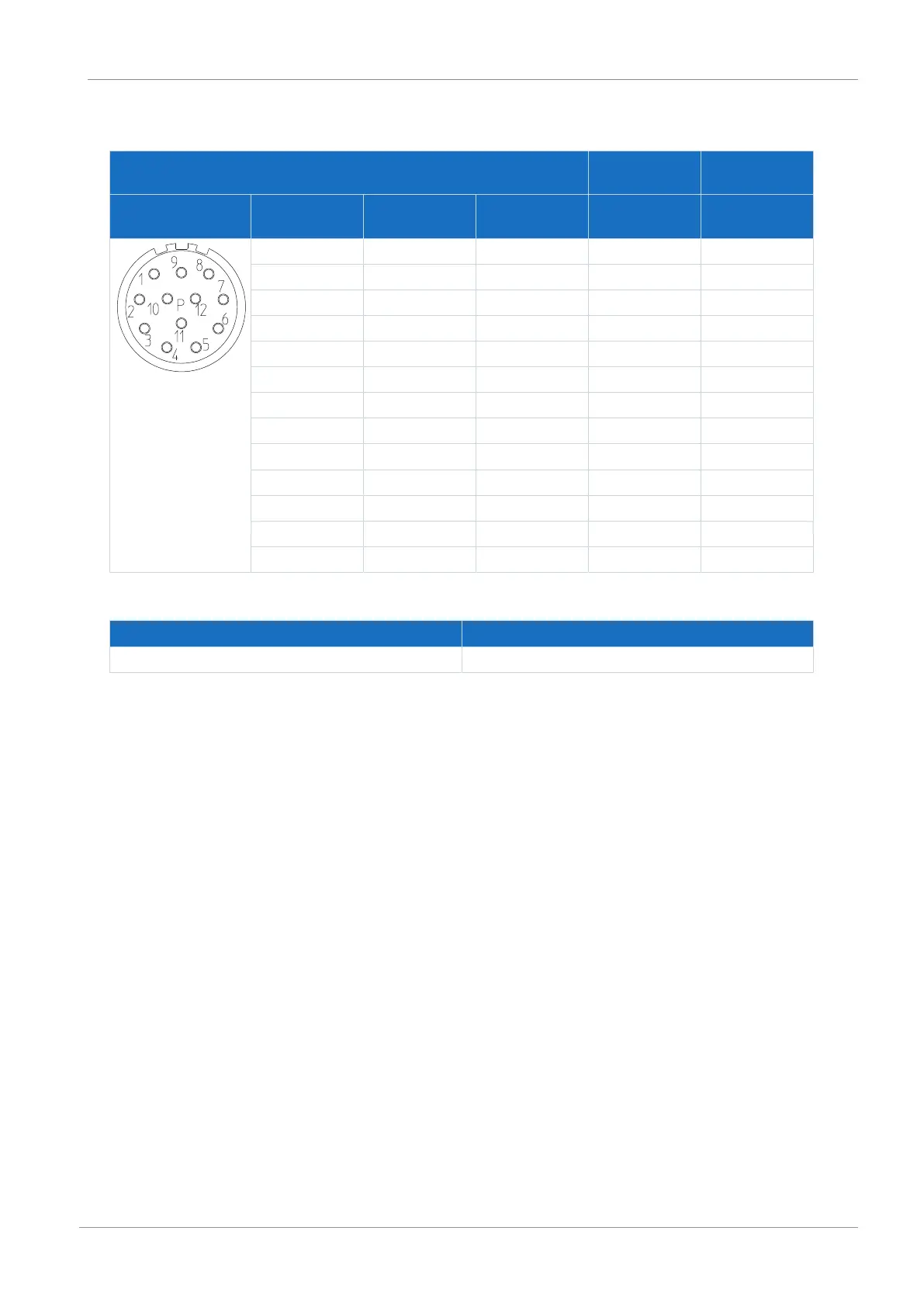

Connection diagram Pin Designation Core color Core color Pin
X4
1 Clock+ VT YE 8
2 Sense U
2
BU PK 12
3 — — — —
4 — — — —
5 Data− PK BN 13
6 Data+ GY WH 5
7 — — — —
8 Clock− YE GN 15
9 — — — —
10 GND WHGN BU 2
11 — — — —
12 U
2
BNGN RD 4
Housing Shield — — —
Tab. 116: con.23 encoder cable pin assignment, EnDat 2.1/2.2 digital
Length x [mm] Diameter y [mm]
58 26
Tab. 117: con.23 dimensions
