STOBER
5 | Technical data
05/2019 | ID 442790.01
49
Dimensions
Dimension
FZMU 400×65
FZZMU 400×65
ID No.
49010
53895
L x D
400 × 65
400 × 65
H
120
120
K
6.5 × 12
6.5 × 12
M
430
426
O
485
450
R
92
185
U
64
150
X
10
10
Tab. 51: FZMU, FZZMU dimensions [mm]
R
L
1
2
U
K
O
M
X
øD
H
R
K
U

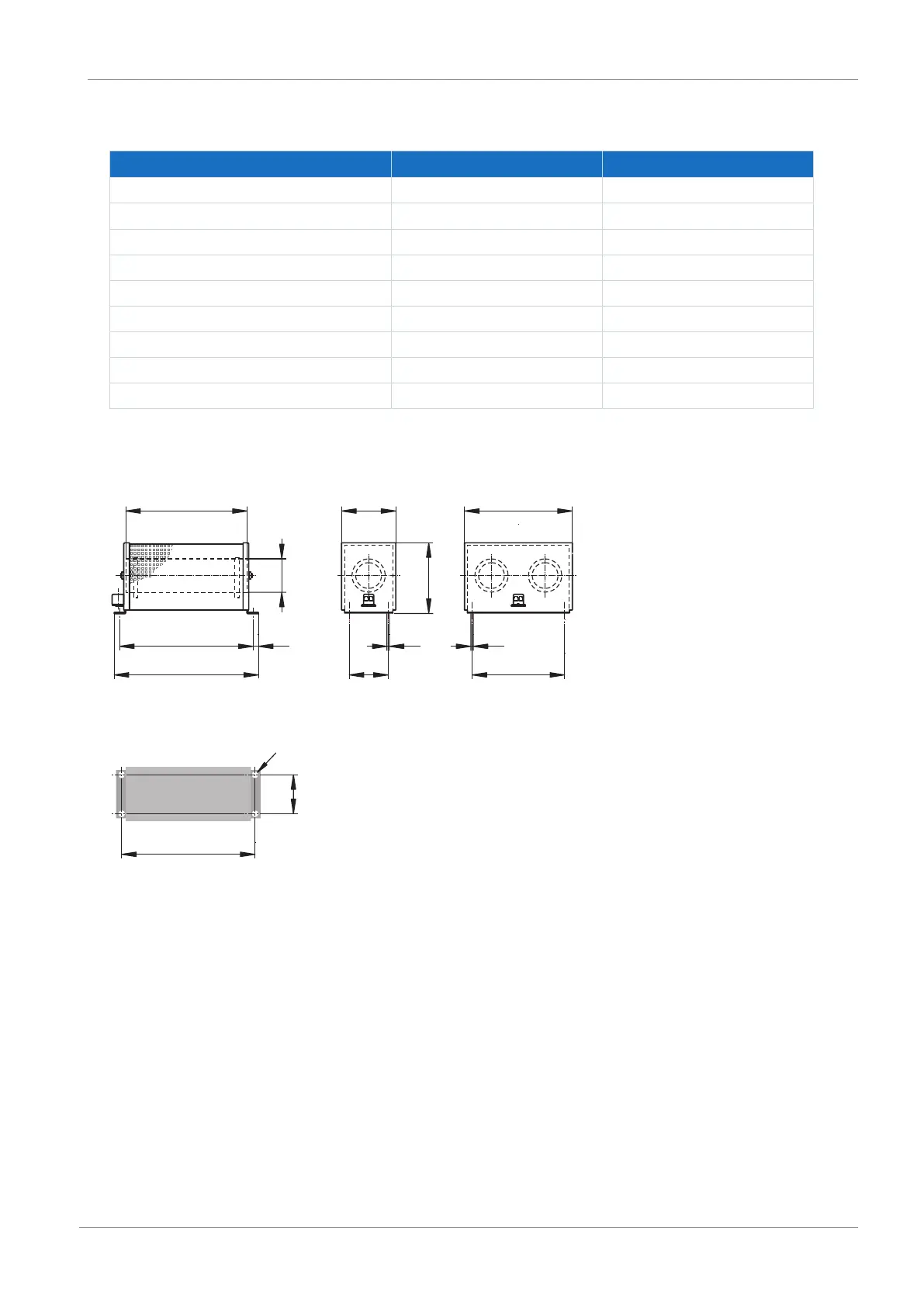

Fig.7: FZMU (1), FZZMU (2) dimensional drawing
U
M
K
Fig.8: FZMU, FZZMU drilling diagram
48
50
