9 | Connection STOBER
114
05/2019 | ID 442790.01
9.6.3 One Cable Solution
STOBER synchronous servo motors are equipped with plug connectors as standard.
STOBER provides suitable cables in various lengths, conductor cross-sections and connector sizes.
A motor connection as a One Cable Solution (OCS) combined with a HIPERFACE DSL encoder requires hybrid cables which
feature encoder communication and power transmission in a shared cable.
Information
For connecting as a One Cable Solution, use exclusively hybrid cables from STOBER. The use of unsuitable cables or poorly
made connections can cause subsequent damage. For this reason, we reserve the right to reject claims under the warranty
in this case.

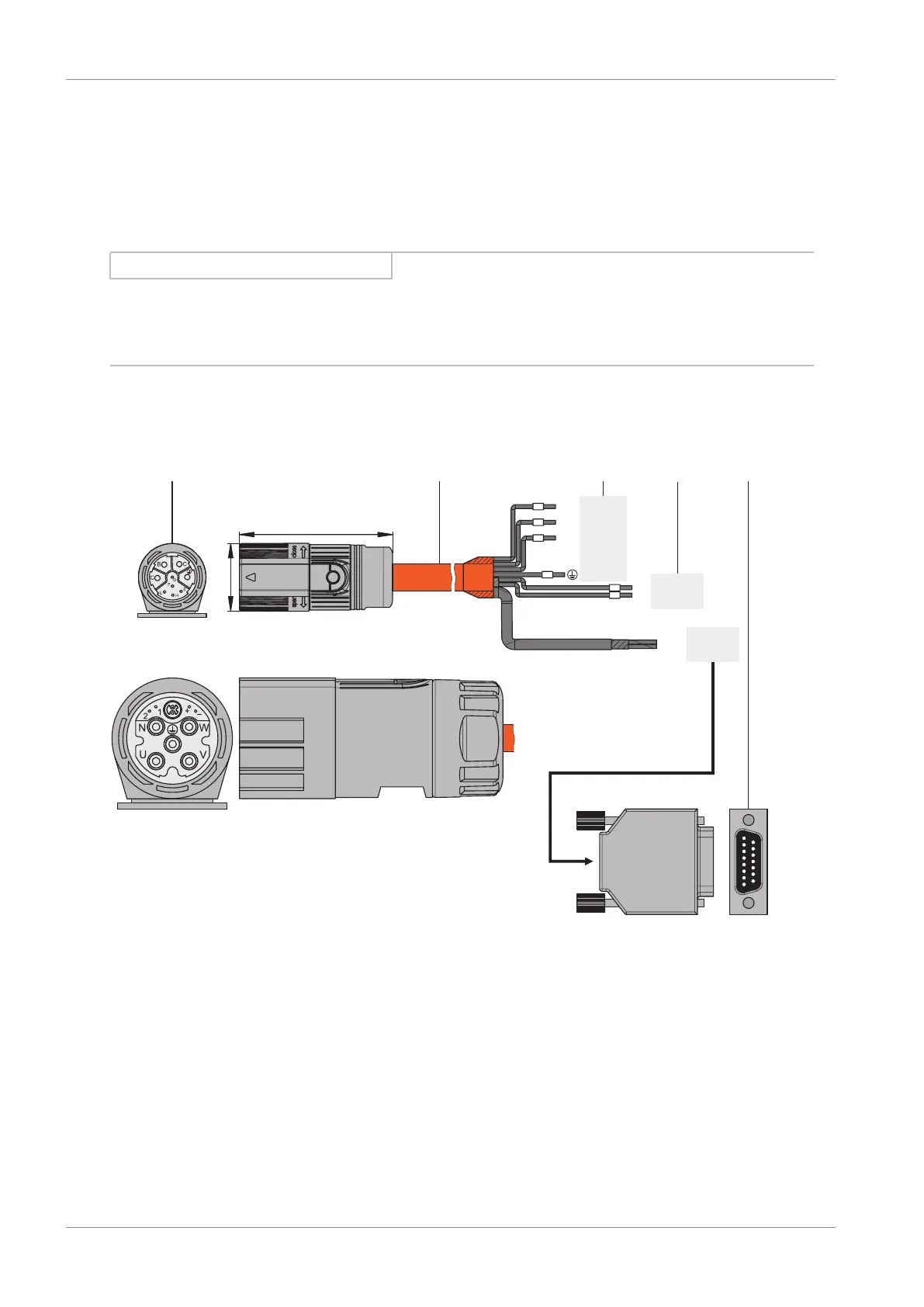

9.6.3.1 Connection description
The hybrid cables are available in plug connector sizes con.23 and con.40 with a speedtec quick lock.
con.23
2
con.40
3 4
5
5
6
1BD2
1
PE
4 DSL+
L1
WH
1U1
y
x
1
L2
L3 3
2
1W1
1V1
6
5
1BD1
BU
2
DSL-
1
15
1: Plug connector
2: STOBER hybrid cable
3: Connection to terminal X20, motor
4: Connection to terminal X2, brake supply
5: D-sub X4
