9 | Connection STOBER
84
05/2019 | ID 442790.01

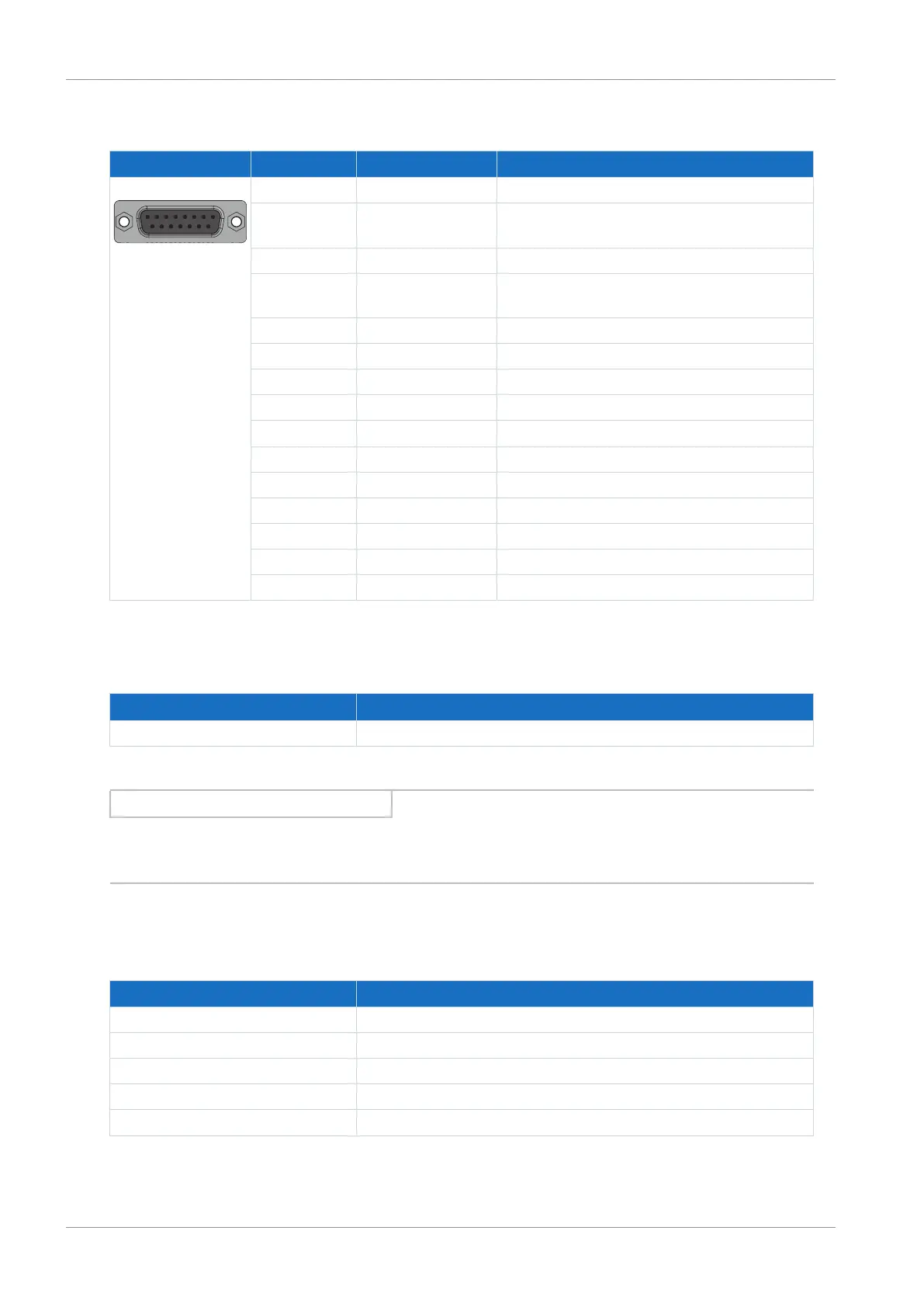

HIPERFACE DSL encoders
Socket Pin Designation Function
8|7|6|5|4|3|2|1
15|14|13|12|11|10|9
1 — —
2 DSL− Inverse HIPERFACE DSL signal (motor temperature
sensor evaluation over DSL communication)
3 — —
4 DSL+ HIPERFACE DSL signal (motor temperature sensor
evaluation over DSL communication)
5 — —
6 — —
7 — —
8 — —
9 — —
10 — —
11 — —
12 — —
13 — —
14 — —
15 — —
Tab. 68: X4A connection description for HIPERFACE DSL encoders
Cable requirements
Feature All sizes
Max. cable length 100m, shielded
Tab. 69: Cable length [m]
Information
To ensure proper functionality, we recommend using cables from STOBER that are matched to the complete system. If
unsuitable connection cables are used, we reserve the right to reject claims under the warranty.
Unsuitable encoder models
The following STOBER encoder models may not be connected:
Encoder model Code according to type designation
ECI 1118 C0
EQI 1130 Q0
ECI 1319 CR
EQI 1329 QP
EQI 1331 QR
Tab. 70: Encoder models with unsuitable supply voltage range
