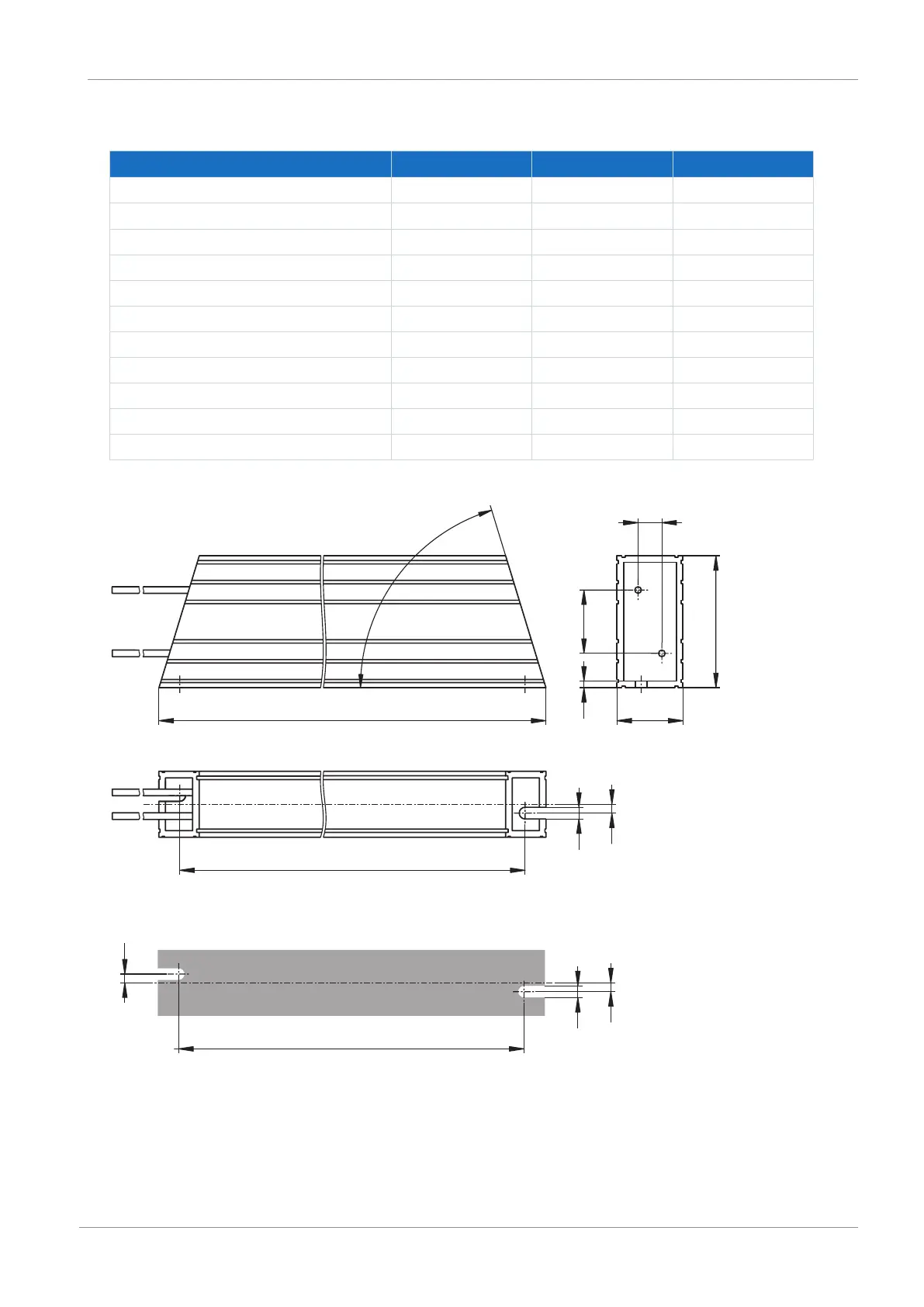

STOBER
5 | Technical data
05/2019 | ID 442790.01
51
Dimensions
Dimension
GVADU 210×20
GBADU 265×30
GBADU 335×30
ID No.
55441
55442
55443
A
210
265
335
H
192
246
316
C
20
30
30
D
40
60
60
E
18.2
28.8
28.8
F
6.2
10.8
10.8
G
2
3
3
K
2.5
4
4
J
4.3
5.3
5.3
β
65°
73°
73°
Tab. 54: GVADU, GBADU dimensions [mm]
A
D
F
E
G
C
J
K
H
b
Fig.9: GVADU, GBADU dimensional drawing
H
K
J
K
Fig.10: GVADU, GBADU drilling diagram
50
52
