15.4.4.2 Navigation using sensitive circuit diagrams

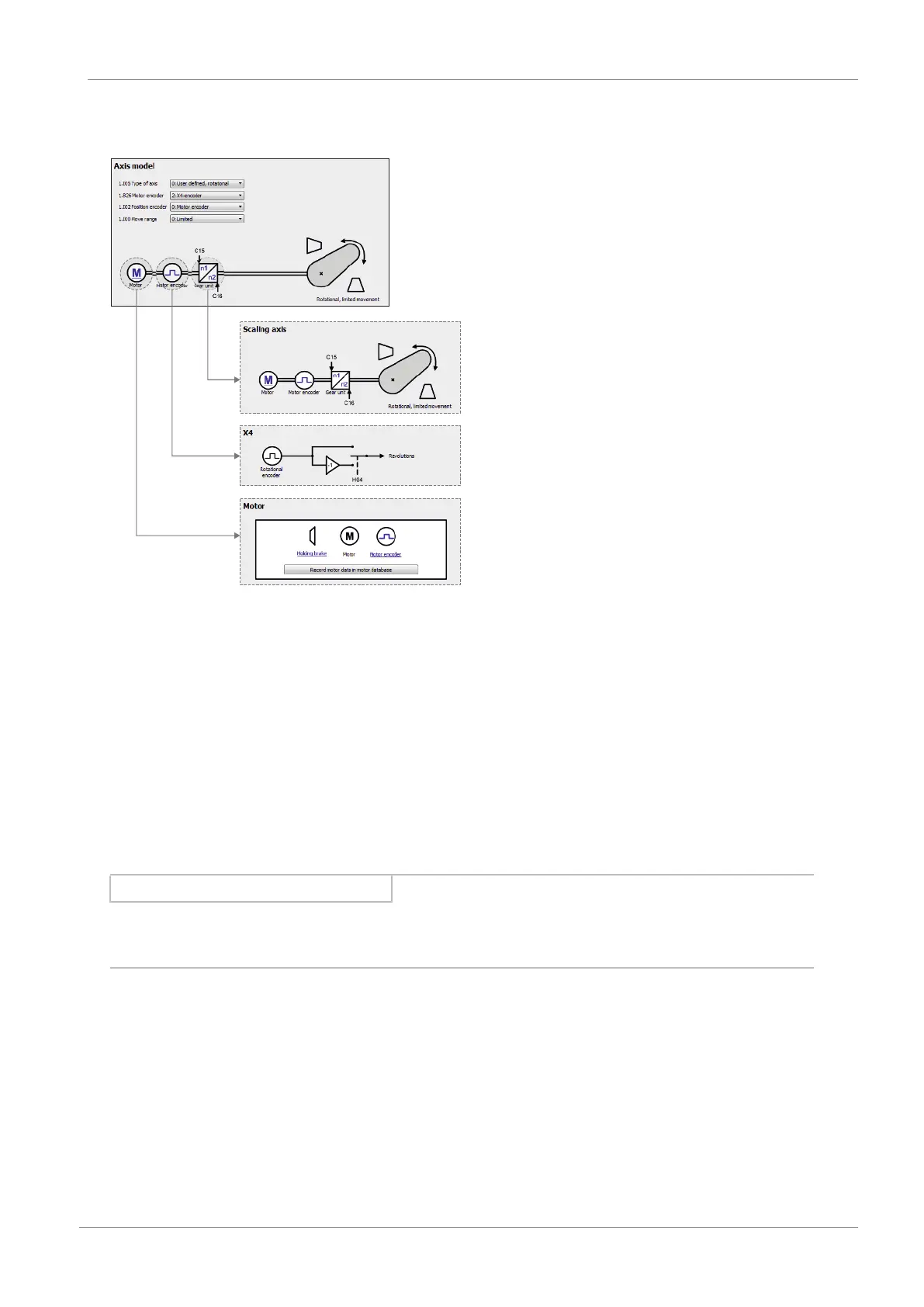

Fig.33: DriveControlSuite: Navigation using text links and symbols
In order to illustrate graphically the processing sequence of actual and set values, the use of signals or certain drive
component arrangements and to make configuring the accompanying parameters easier, they are displayed on the
respective wizard pages of the workspace in the form of circuit diagrams.
Blue text links or clickable icons indicate links within the program. These refer to the corresponding wizard pages and, as a
result, allow you to reach additional helpful detail pages with just a click.
15.4.5 Updates
In the Help menu of the DriveControlSuite commissioning software, you can search for a newer version and, if available,
download and install it.
Information
If the DriveControlSuite version is outdated, but the latest version is already installed on the computer, the check will yield
the result that no newer version is available.
