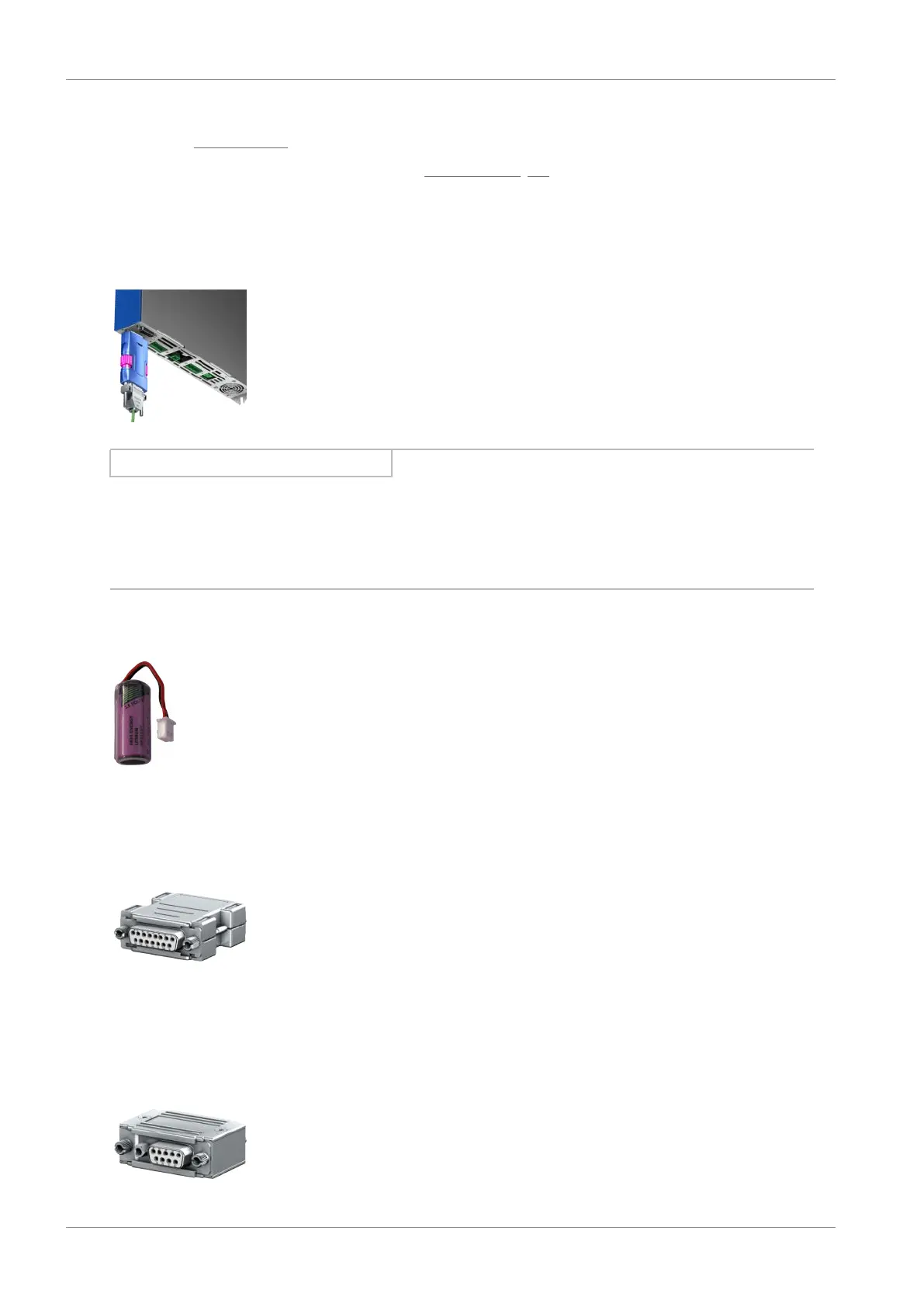

4.1.4.4 Braking resistor
STOBER offers braking resistors in different sizes and performance classes.
More detailed information can be found in the chapter Braking resistor [}48].
4.1.4.5 Encoder battery module
Absolute Encoder Support AES
ID No. 55452
Battery module for buffering the power supply when using the EnDat 2.2 digital
inductive encoder with battery-buffered multi-turn stage, for example EBI1135 or
EBI135.
A battery is included.
Information
Note that a 15-pin extension cable between the socket and the AES may be necessary for the connection to the drive
controller due to limited space.
a) A commercially available shielded extension cable with a 15-pin D-sub connector and a length of ≤ 1m can be used
between the socket and the AES.
AES replacement battery
ID No. 55453
Replacement battery for AES battery module.
4.1.4.6 HTL-to-TTL adapter
HT6 HTL-to-TTL adapter
ID No. 56665
Adapters for SC6 and SI6 series drive controllers for level conversion from HTL
signals to TTL signals.
It is used to connect an HTL differential incremental encoder to terminal X4 of the
drive controller.
4.1.4.7 Interface adapters
AP6A00 interface adapters
ID No. 56498
Adapter (9/15-pin) for connecting resolver cables with a 9-pin D-sub connector to
the X4 encoder interface of the drive controller.
