Chapter 5 Replacing Cold-Swappable FRUs 5-11

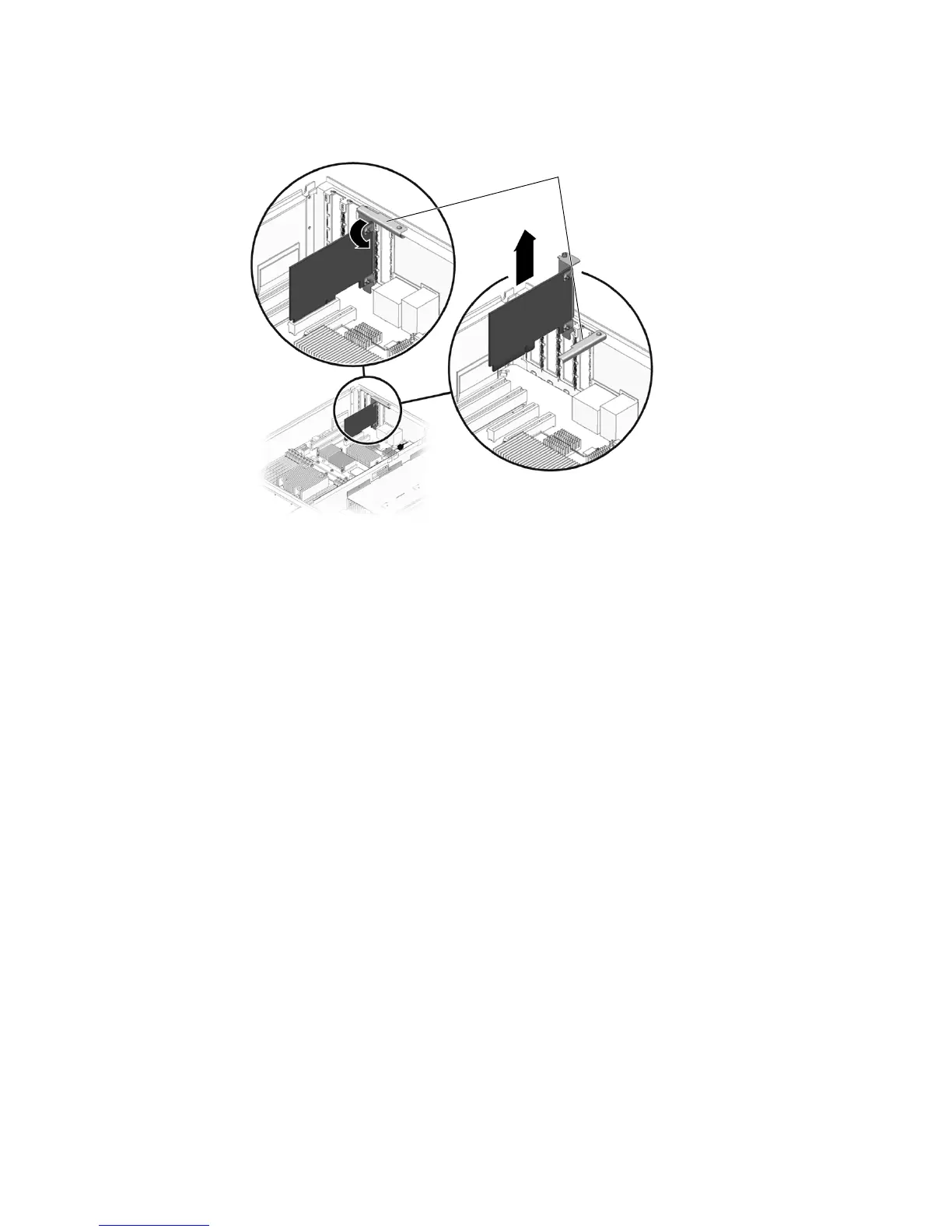

FIGURE 5-7 PCI Card and Hold-Down Bracket
6. Carefully pull the card out of the socket.
7. Place the card on an antistatic mat.
8. Rotate the hold-down bracket so that it does not protrude into the chassis.
5.2.2 Replacing PCI Cards
1. Unpackage the replacement PCI-Express or PCI-X card and place it on an antistatic
mat.
2. Locate the proper socket for the card you are replacing.
3. Rotate the PCI hold-down bracket 90 degrees so you can install the card.
4. Insert the card into the socket.
5. Rotate the PCI hold-down bracket 90 degrees to lock the card in place.
6. Perform the procedures described in Section 5.3, “Common Procedures for
Finishing Up” on page 5-41.
PCI hold-down bracket
