3.2.4 Fan LEDs

The fan LEDs are located on the top of each fan unit and are visible when you open

the top fan door (

FIGURE 3-6)

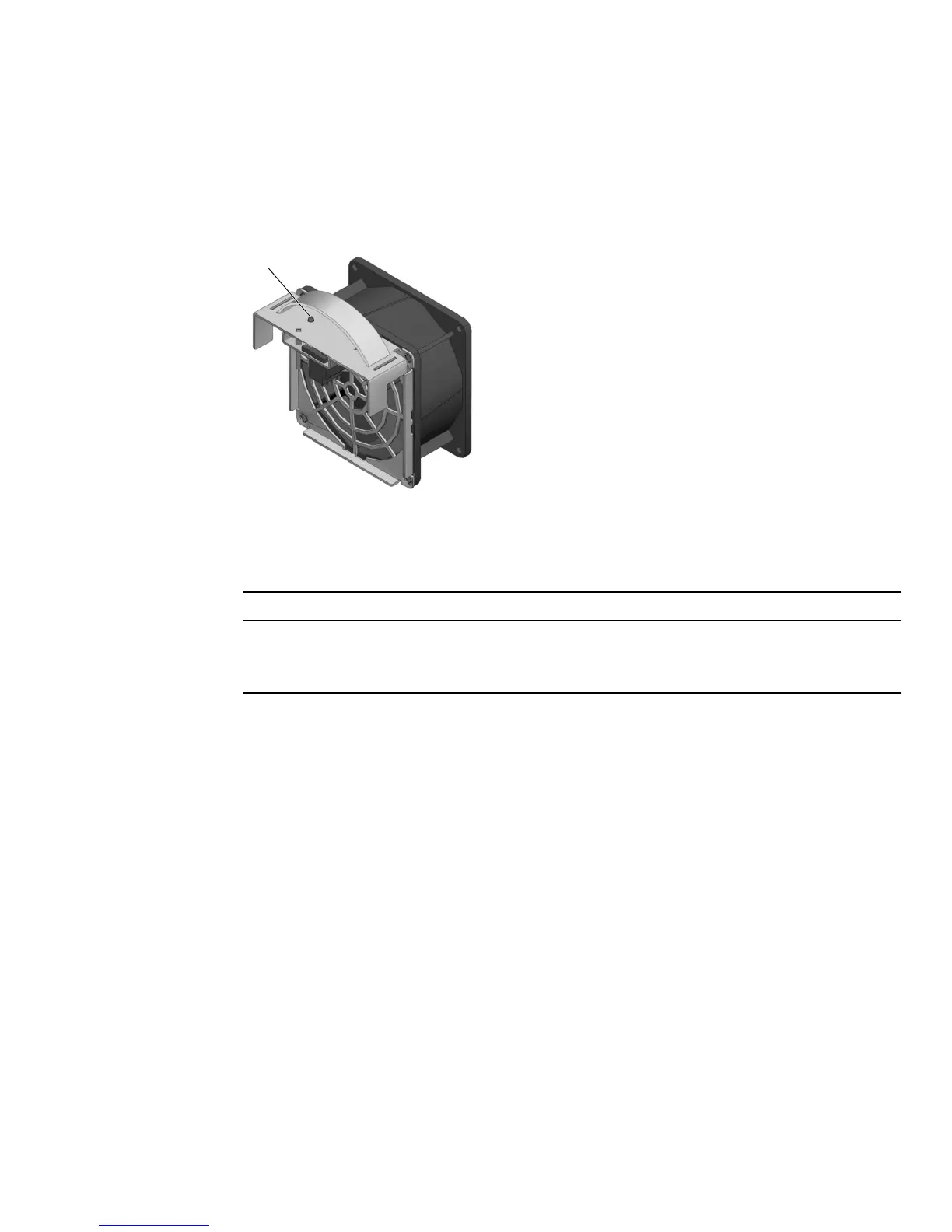

FIGURE 3-6 Location of Fan LEDs

3.2.5 Blower Unit LED

The blower unit LED is located on the back of the blower unit and visible from the

rear of the server (

TABLE 3-6).

TABLE 3-5 Fan LEDs

LED Color Description

Fan LEDs Amber • On – This fan is faulty.

• Off – Normal operation.

Note: When a fan fault is detected, the front panel Top Fan LED is lit.

Fault

Sun Microsystems Sun Fire T2000 User Manual
