Sun Microsystems Sun Fire T2000 - FIGURE 6-3 DIMM Layout

Chapter 6 Adding New Components and Devices 6-5
■ At minimum, rank 0 must be fully populated with eight DIMMS of the same
capacity.
■ DIMMs can be added eight at a time, of the same capacity, to fill rank 1.

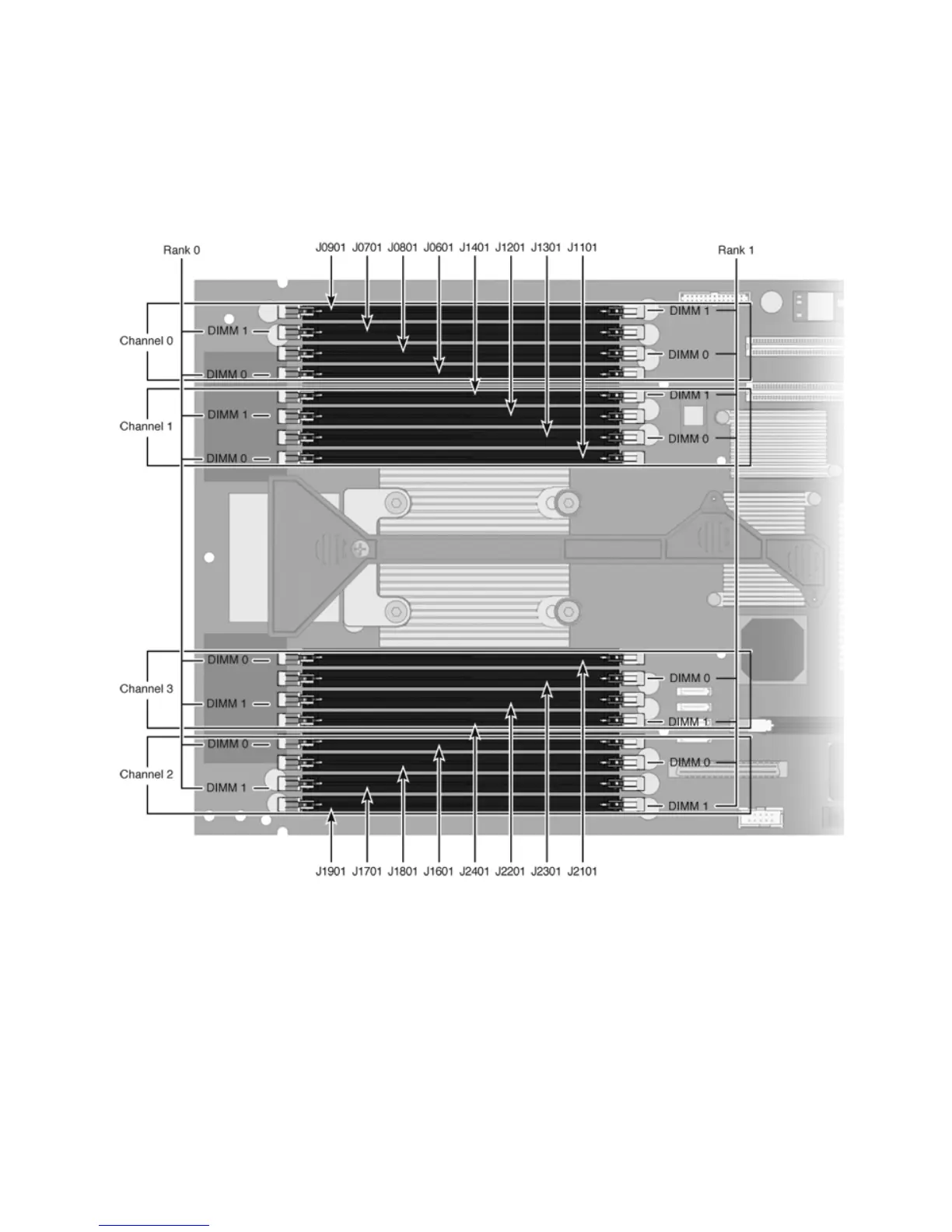

FIGURE 6-3 DIMM Layout
Front of
board
