Sun Microsystems Sun Fire T2000 - Ethernet Port Leds; FIGURE 3-7 Location of the Blower Unit LED; TABLE 3-6 Blower Unit LED

3-14 Sun Fire T2000 Server Service Manual • July 2007

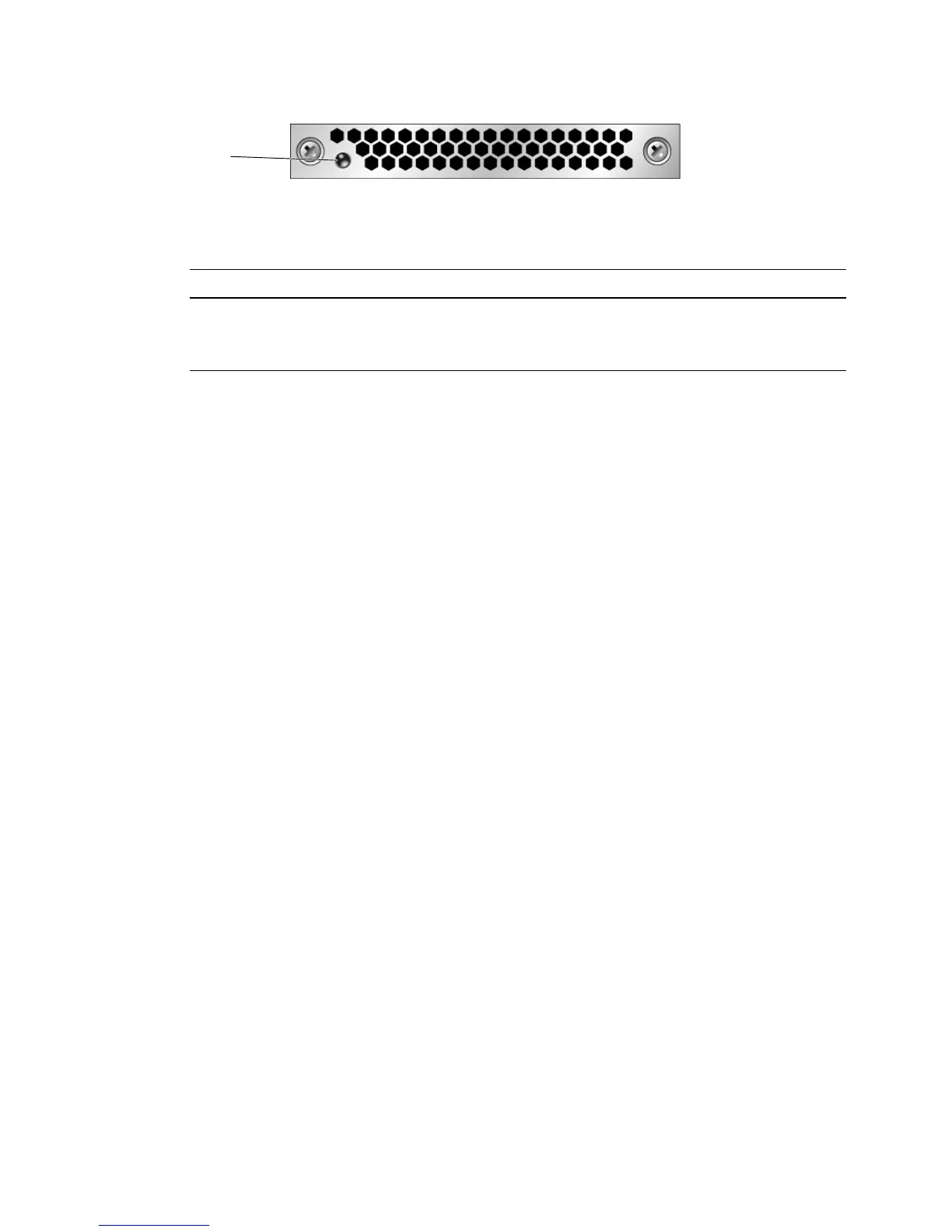

FIGURE 3-7 Location of the Blower Unit LED
3.2.6 Ethernet Port LEDs
The ALOM CMT management Ethernet port and the four 10/100/1000 Mbps
Ethernet ports each have two LEDs, as shown in
FIGURE 3-8 and described in
TABLE 3-7.
TABLE 3-6 Blower Unit LED
LED Color Description
Blower Unit
LED
Amber • On – The blower unit is faulty.
• Off – Normal operation.
Note: When a blower fault is detected the Rear-FRU Fault LED is lit.
Fault
