5-22 Sun Fire T2000 Server Service Manual • July 2007

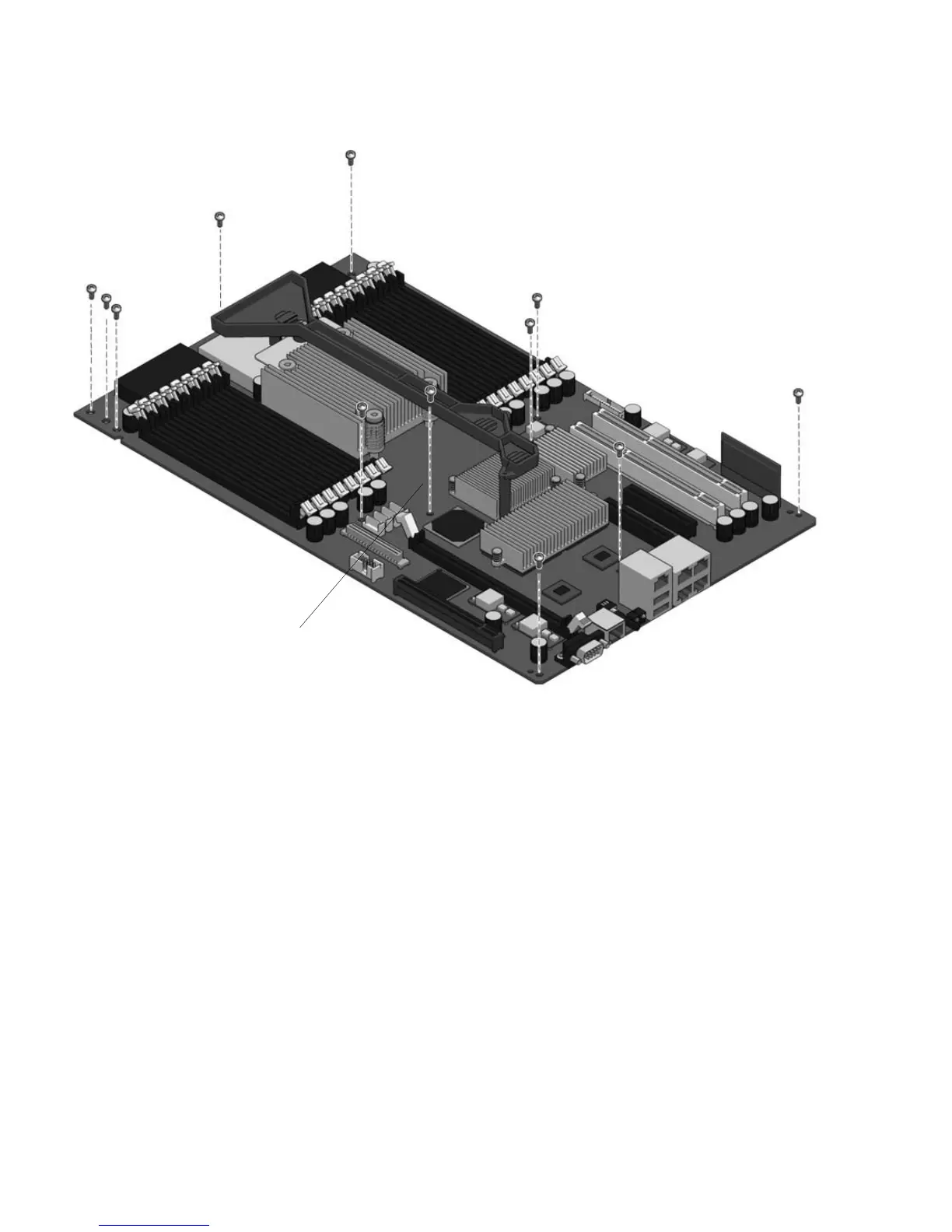

FIGURE 5-13 Location of the Screws in the Motherboard Assembly
8. Lift the front of the motherboard to clear the front standoffs.
The front of the motherboard refers to the part of the motherboard nearest the front
of the server.
9. Slide the motherboard forward to clear the connectors from the cutouts in the rear
of the chassis.
Flexible cable
(do not remove flex cable screws)
