Chapter 5 Replacing Cold-Swappable FRUs 5-21
■ Disconnect the gray ribbon cable that runs along the left side of the chassis and
motherboard.
■ Disconnect the cable marked P8 (FIGURE 5-12).
■ Disconnect the hard drive data cables and carefully pull them through the interior
wall of the chassis.
The SAS hard drive and the cable marked P8 pass through a cutout in the interior
wall of the chassis. Before removing the motherboard assembly, ensure that these
cables are out of the way. The SAS hard drive cables can be folded back over the
interior wall or passed through the cutout (
FIGURE 5-12). However, the cable
marked P8 is large and contains a number of small wires. The cable will not easily
pass through the cutout. While pushing and pulling the cables through the cutout
be careful not to damage the wires.

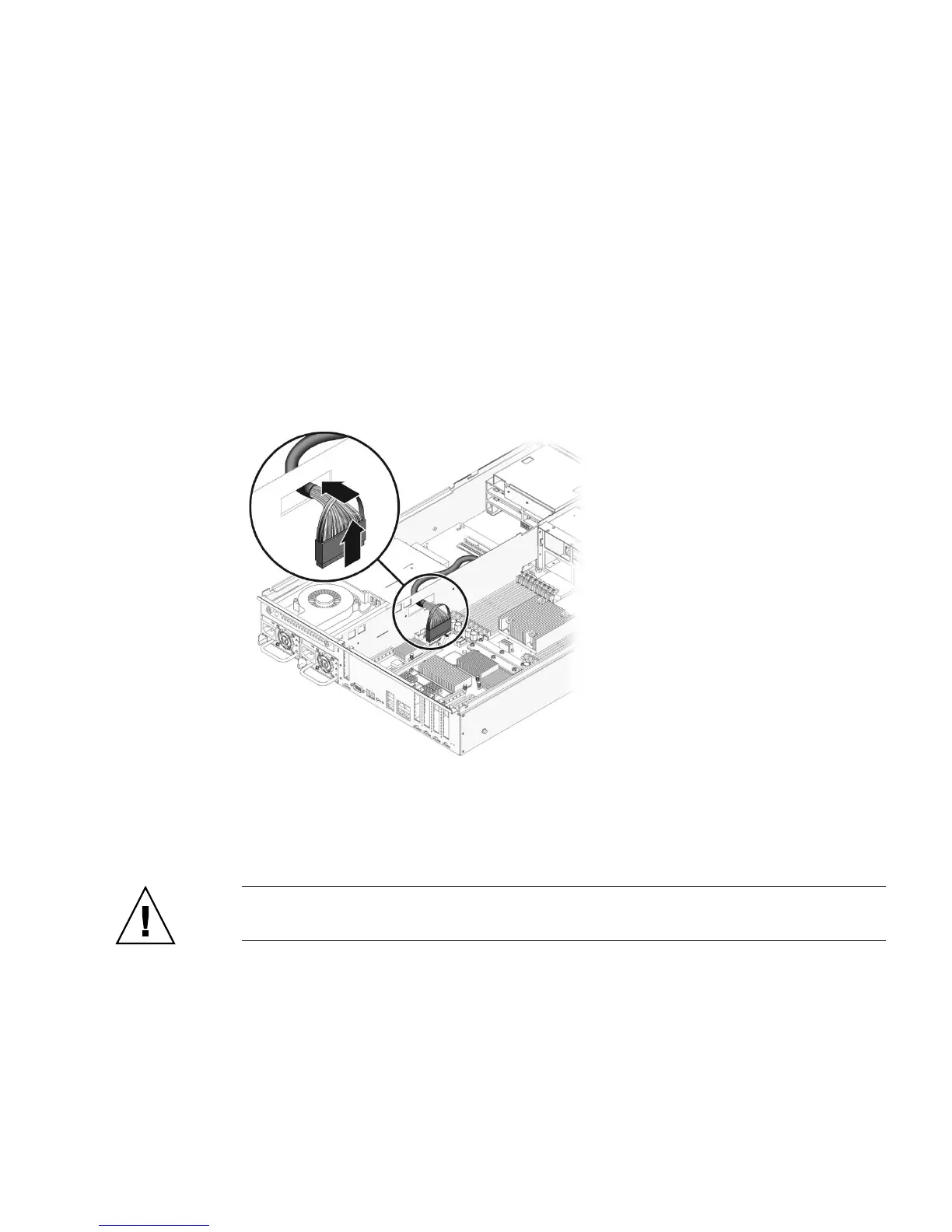

FIGURE 5-12 Cable Cutout
7. Remove the screws that secure the motherboard assembly to the chassis
(
FIGURE 5-13).
Caution – Do not remove the screws that hold the flexible cable in place. These
screws must be installed at the factory, and they must not be removed.
