Chapter 5 Replacing Cold-Swappable FRUs 5-13

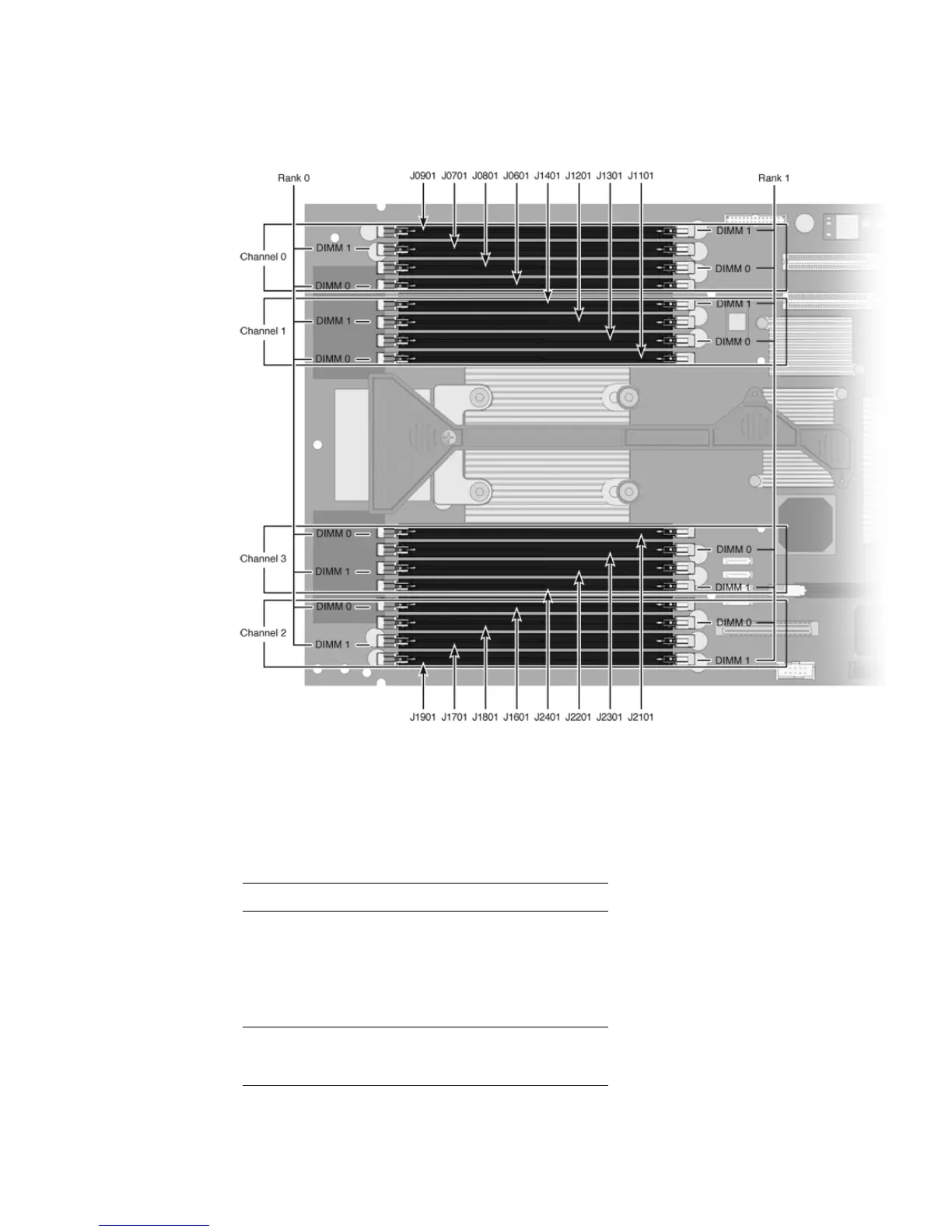

FIGURE 5-8 DIMM Locations
Use FIGURE 5-8 and TABLE 5-1 to map DIMM names that are displayed in faults to
socket numbers that identify the location of the DIMM on the motherboard.
TABLE 5-1 DIMM Names and Socket Numbers
DIMM Name Used in Messages
*
Socket No.
CH0/R1/D1 J0901
CH0/R0/D1 J0701
CH0/R1/D0 J0801
CH0/R0/D0 J0601
CH1/R1/D1 J1401
CH1/R0/D1 J1201
Front of
board
