A.1 Illustrated FRU Locations
FIGURE A-1, FIGURE A-2, and TABLE A-1 list the locations of the field-replaceable units (FRUS) in the
server.

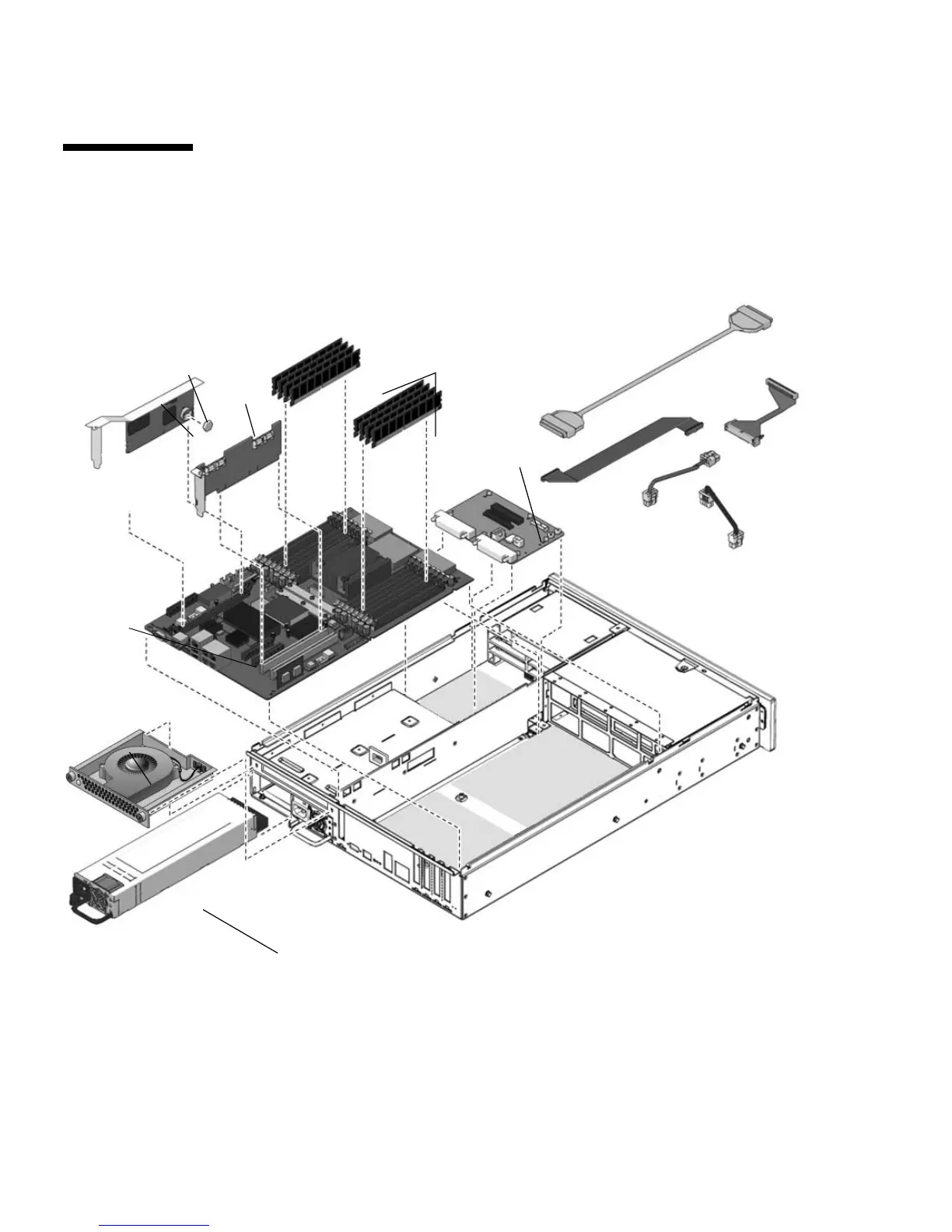

FIGURE A-1 Field-Replaceable Units (1 of 2)
1
5
2
6
8
9
3
4
7
