Chapter 5 Replacing Cold-Swappable FRUs 5-25

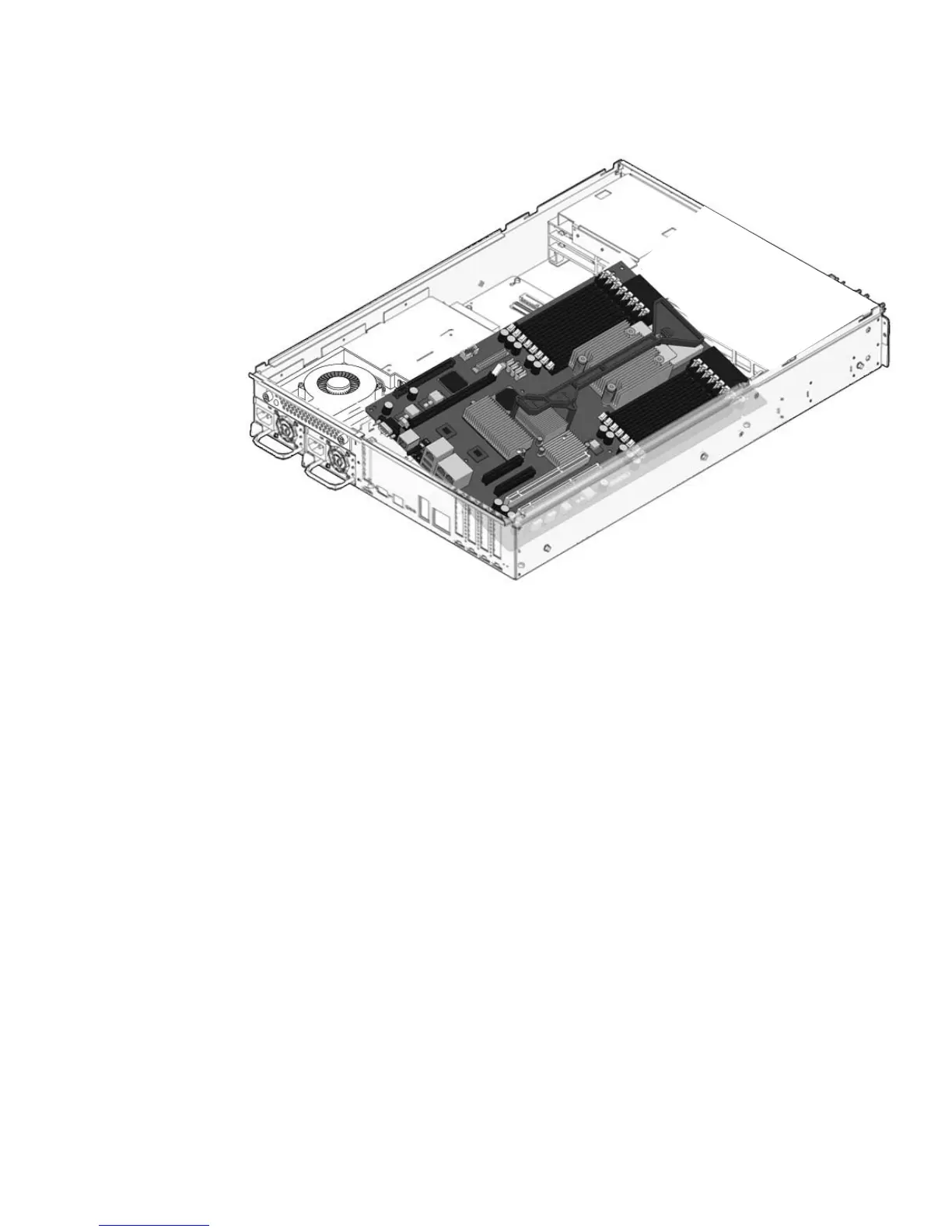

FIGURE 5-15 Installing the Motherboard Assembly
5. Adjust the position of the motherboard assembly so that it is mounted on the bus
bar.
6. Adjust the position of the motherboard assembly so that it lines up with the
standoff screw holes.
7. Loosely install two screws shown in
FIGURE 5-16.
