Chapter 3 Connecting to the XSCF and the Server 3-17
In the example of the configuration shown in FIGURE 3-6, if errors occur in either of
the two LAN ports and its switch hub, its LAN is replaced by the other LAN.
Moreover, if an error occurs in the switch hub, the other LAN can be relied on for
notification.
If an error occurs in the active XSCF Unit in the systems with two XSCF Units, XSCF
generates a failover, then the LAN of the other XSCF Unit can be used.

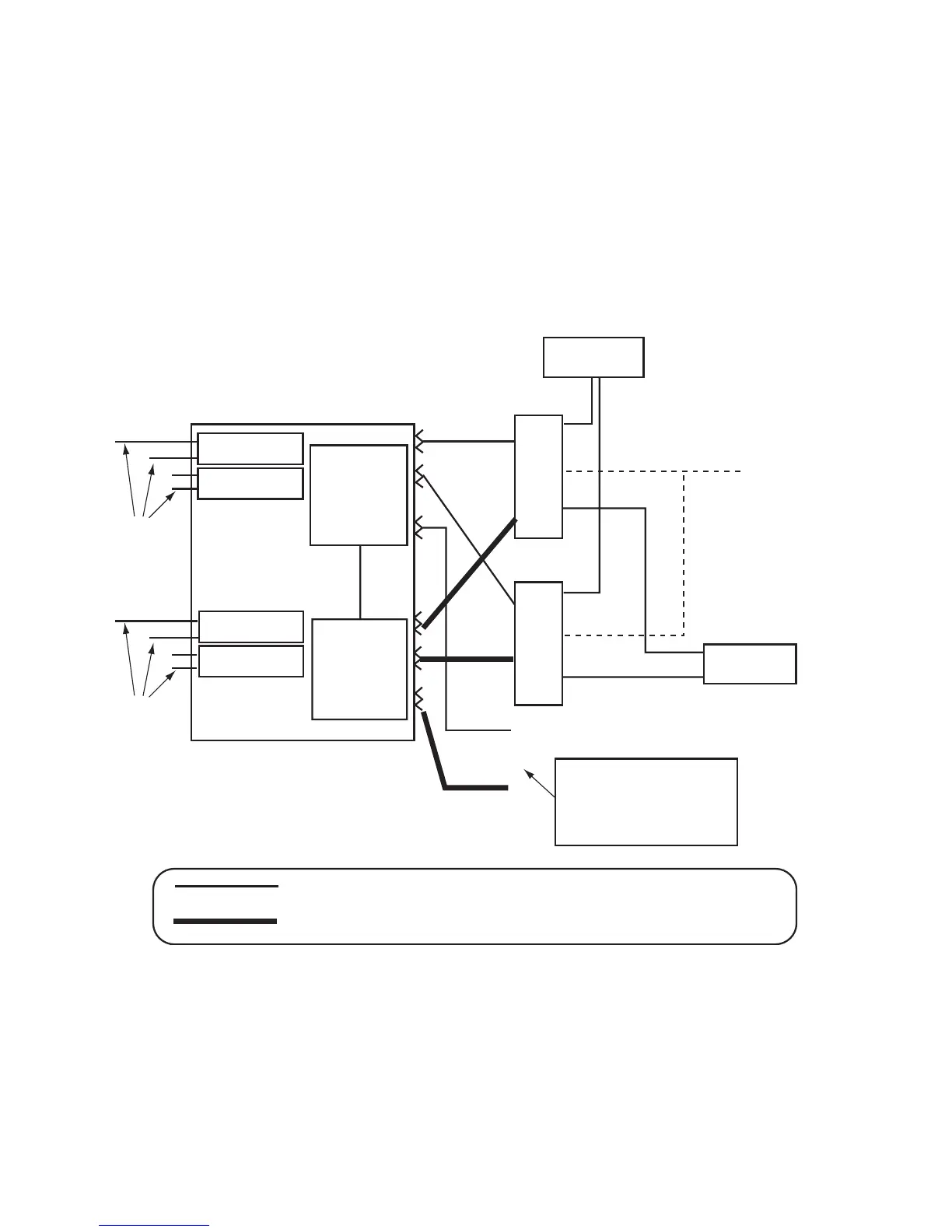

FIGURE 3-6 Example of LAN Port Connections Made Redundant
Direct attach port
for initial setup
maintenance
Port from XSCFU#0
Port from XSCFU#1
(System with redundant XSCFU only)
Fire Wall
Fire Wall
Remote Services
System
administration port
Maintenance port
Hub
Hub
Serial
Serial
LAN
LAN
Basic cabinet
:
:
User
LAN
User
LAN
DomainID x
DomainID y
DomainID m
DomainID n
XSCFU
#0
XSCFU
#1
To Next Page
