Chapter 1 XSCF Overview 1-7

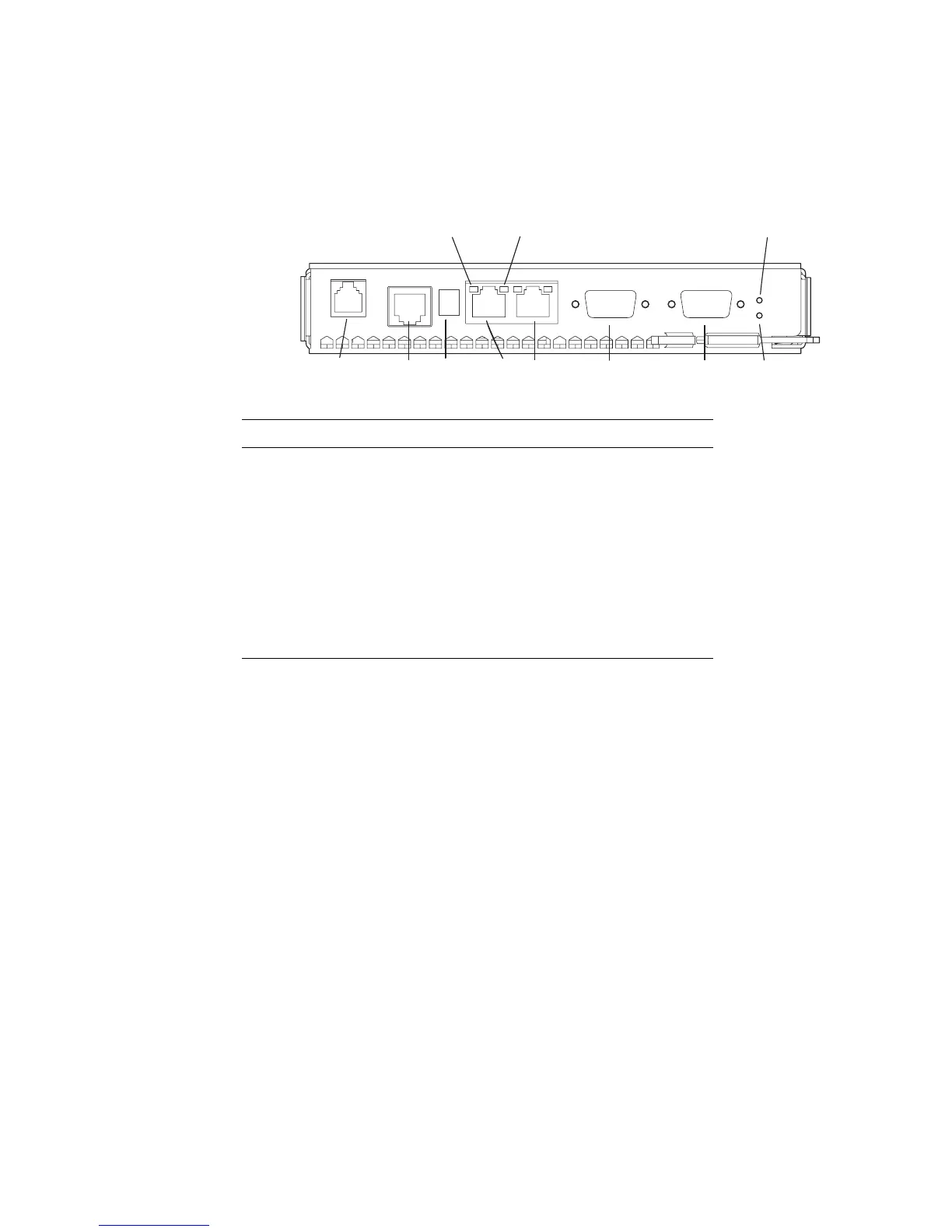

FIGURE 1-2 Outline Drawing of the XSCF Unit Front Panel (In the Midrange Servers)
The RCI port, serial port, USB port, XSCF-LAN ports, Link Speed LED, ACT LED,
UPC ports, CHECK LED, and READY LED shown in
FIGURE 1-2 have the same
functions as those of the M3000 server. For descriptions of their functions, see the
explanation of
FIGURE 1-1.
XSCF Unit Front Panels on the High-End Servers
FIGURE 1-3 includes an outline drawing of the XSCF Unit front panel on the
M8000/M9000 servers. For connections between the model and an expansion
cabinet, an XSCF Unit as shown at the bottom of
FIGURE 1-3 is mounted in the
expansion cabinet.
The XSCF Unit of the M8000/M9000 servers is a removable unit. In the
M8000/M9000 servers, for details on mounting the XSCF Unit, see the SPARC
Enterprise M8000/M9000 Servers Service Manual.
Number Description Number Description
1 RCI port 7 ACT LED
2 Serial port 8 UPC#1 port
3 USB port 9 UPC#0 port
4 ETHERNET#1 port
(XSCF-LAN#1 port)
10 CHECK LED
5 ETHERNET#0 port
(XSCF-LAN#0 port)
11 READY LED
6 Link Speed LED
XSCF Unit (Front)
12345 8 910
67 11
