Sun Microsystems Sun SPARC Enterprise M4000 - FIGURE 7-2 Trap Issuance

Chapter 7 XSCF SNMP Agent Function 7-7

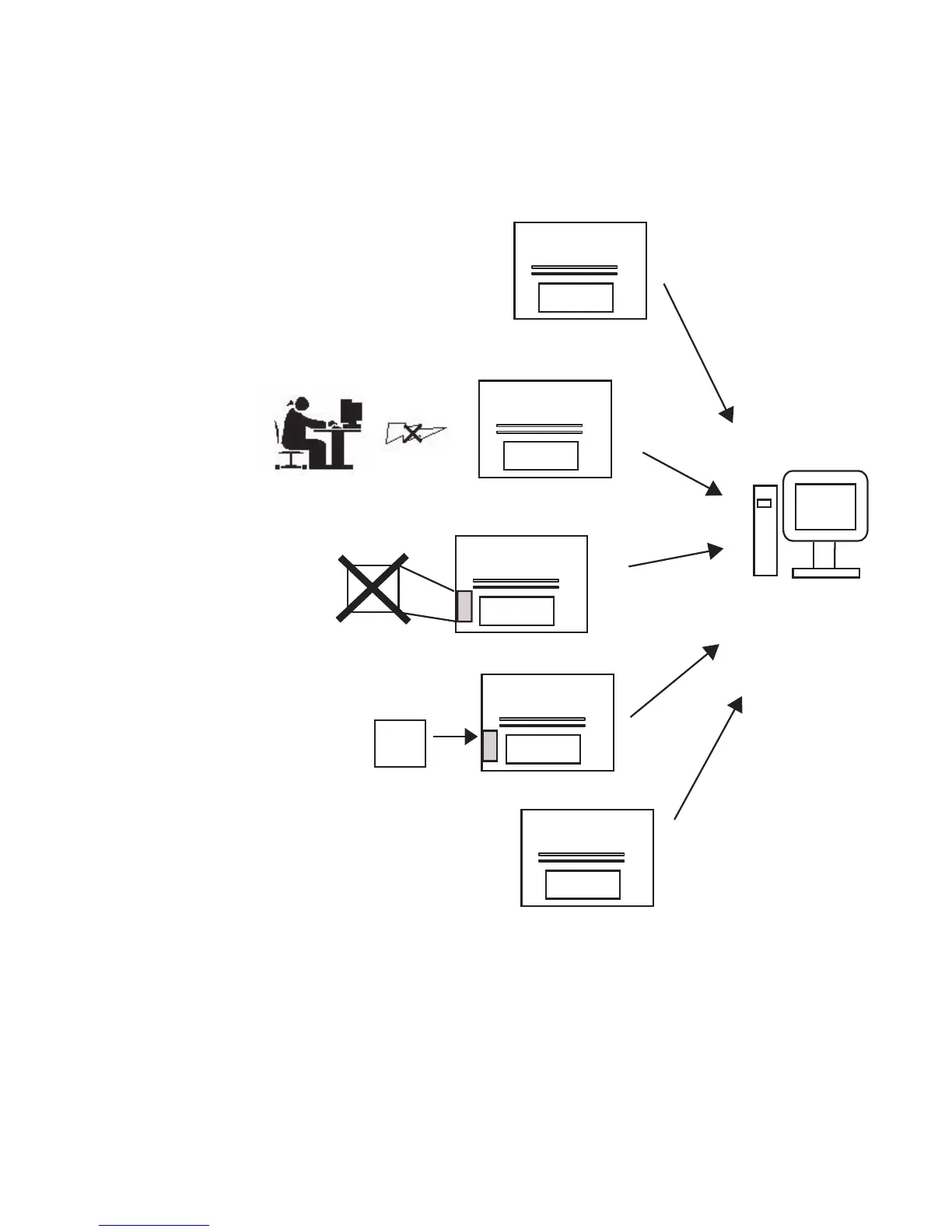

FIGURE 7-2 is a conceptual diagram of issuance of a Trap.
FIGURE 7-2 Trap Issuance
Trap issued
System
XSCF
Event reports.
System
XSCF
Faulty part replaced
Parts fault
System
XSCF
Unauthorized access to XSCF SNMP agent
System
XSCF
System
XSCF
XSCF SNMP agent function started
SNMP manage
r
