1-8 SPARC Enterprise Mx000 Servers XSCF User’s Guide • August 2009

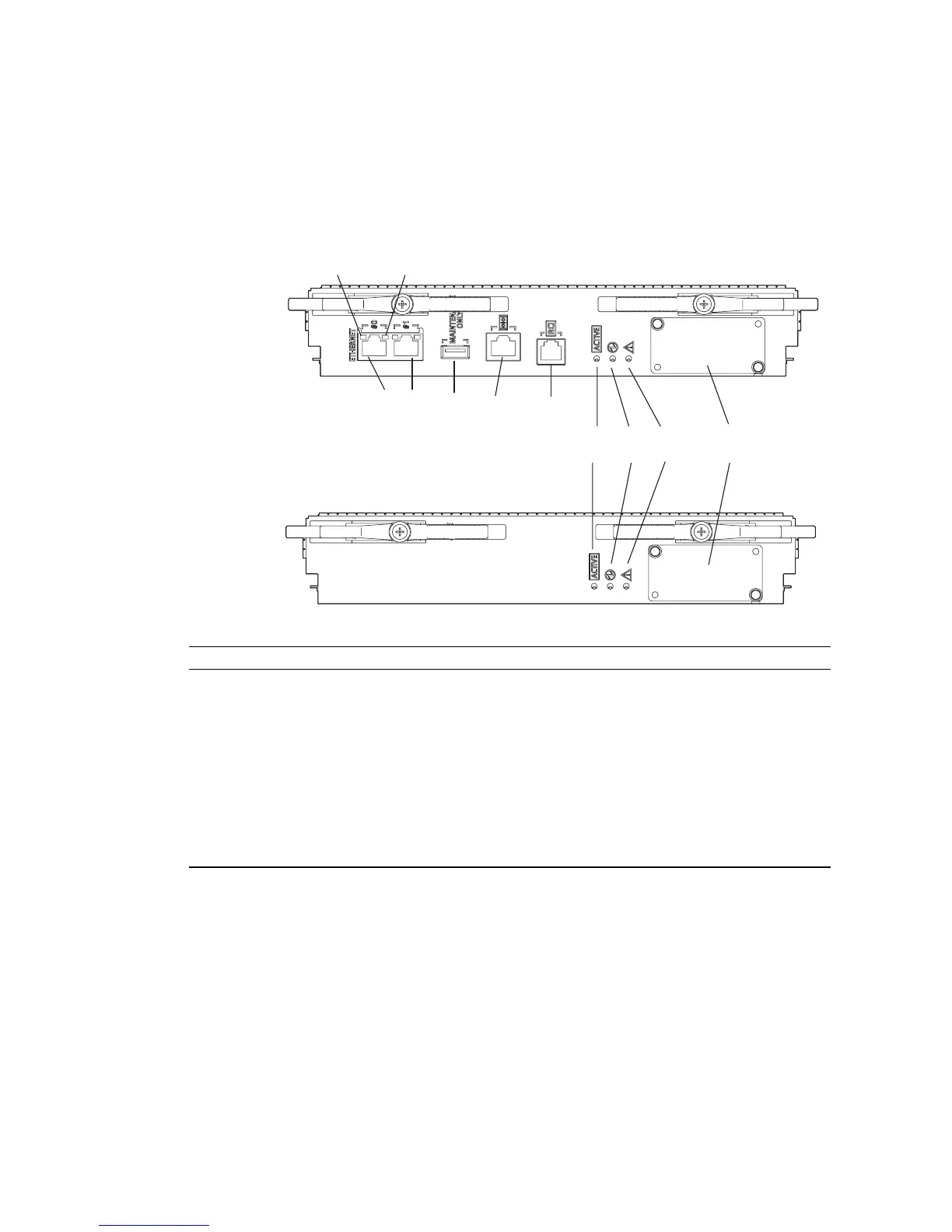

FIGURE 1-3 Outline Drawing of the XSCF Unit Front Panel (In High-End Servers)
The Link Speed LED, ACT LED, XSCF-LAN ports, USB port, serial port, RCI port,
READY LED, and CHECK LED shown in
FIGURE 1-3 have the same functions as
those of the M3000 server. For descriptions of their functions, see the explanation of
FIGURE 1-1.
Number Description Number Description
1 Link Speed LED 7 RCI port
2 ACT LED 8 ACTIVE LED
3 ETHERNET#0 port
(XSCF-LAN#0 port)
9 READY LED
4 ETHERNET#1 port
(XSCF-LAN#1 port)
10 CHECK LED
5 USB port 11 Connector that connects the XSCF Unit for base
cabinet with the XSCF Unit for expansion cabinet
6 Serial port
XSCF Unit (Front; in Expansion cabinet)
XSCF Unit (Front)
12
34 5 6 7
8910 11
