Suzuki RM-Z250 - Oil Strainers; OIL STRAINER (No.1) REMOVAL; OIL STRAINER (No.2) REMOVAL

PERIODIC MAINTENANCE 2-15
OIL STRAINERS

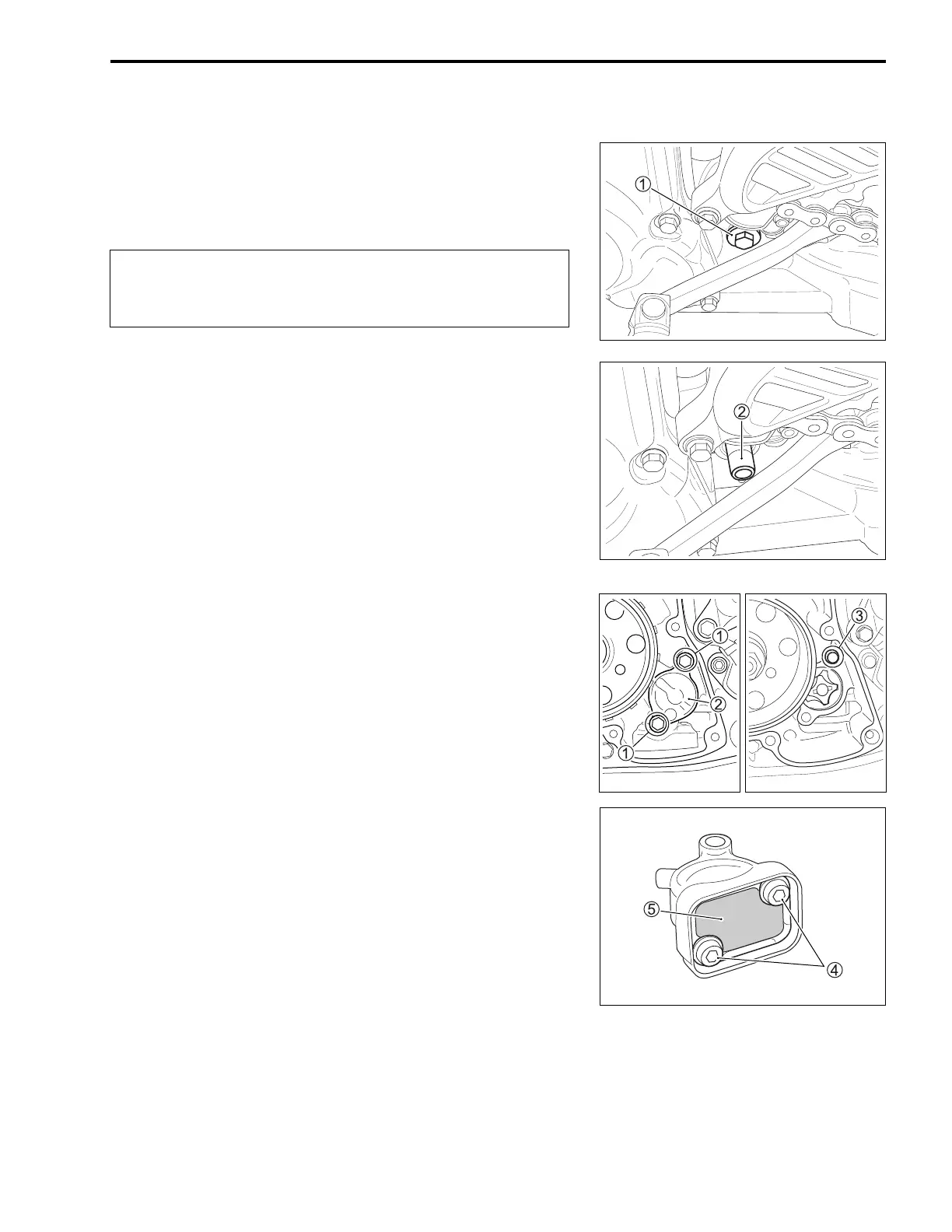

OIL STRAINER (No.1) REMOVAL
• Drain engine oil. (2-13)
• Remove the engine oil strainer cap 1.

• Pull out the oil strainer 2.
NOTE:
We recommend to inspect the oil strainer (No.1) every engine oil
change.
OIL STRAINER (No.2) REMOVAL
• Drain engine oil. (2-13)
• Remove the gearshift lever. (9-3)
• Remove the magneto cover. (15-17)
• Remove the oil pump No.2 cover 2 by removing its bolts 1.
• Remove the dowel pin 3.
• Remove the oil strainer No.2 5 by removing its bolts 4.
Do not lie the motorcycle to prevent dirty engine oil
into the oil circuit when removing the oil strainer
(No.1).
