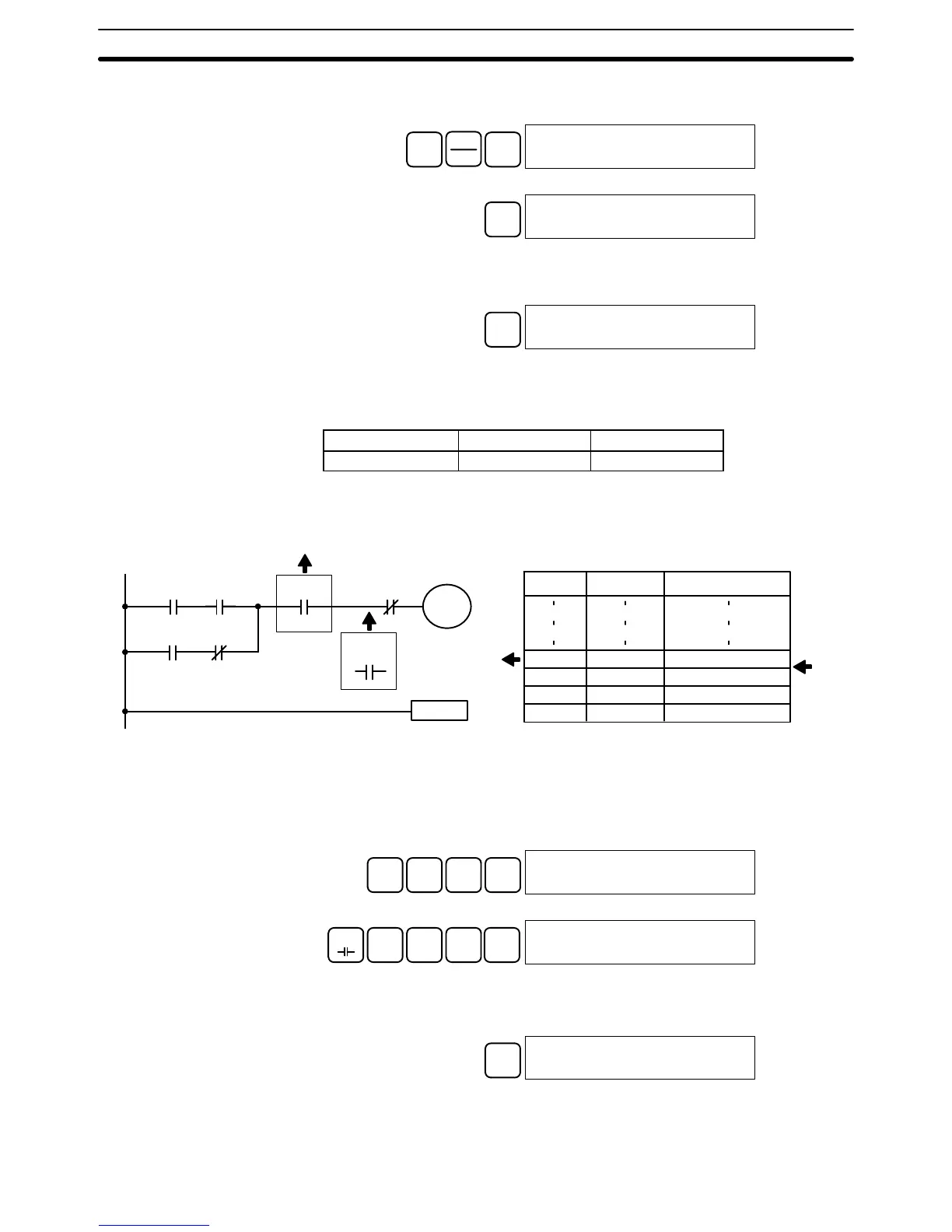

3-6SectionProgramming Console Operations
92
1, 2, 3...
1. Bring up the initial display.
2. Input the operand address. It is not necessary to input leading zeroes.
SHIFT
CONT
#
F
5
00000CONT SRCH
CONT 00005
3. Press the SRCH Key to begin the search.
SRCH
00200CONT SRCH
LD 00005
4. Press the SRCH Key to search for the next occurrence of the operand bit.
5. The search will continue until an END instruction or the end of Program
Memory is reached. In this case, an END instruction was reached.
SRCH
03197
END (01)(3.2KW)
3-6-10 Inserting and Deleting Instructions
This operation is used to insert or delete instructions from the program. It is pos-
sible in PROGRAM mode only.
RUN MONITOR PROGRAM
No No OK
To demonstrate this operation, an IR 00105 NO condition will be inserted at
program address 00206 and an IR 00103 NO condition deleted from address
00205, as shown in the following diagram.
00104
00100
00103
00105
00101
00201
END(01)
00102
10000
Delete
Insert
Original Program
Address Instruction Operands
00205 AND 00103
00206 AND NOT 00104
00207 OUT 10000
00208 END(01) -
Delete
Insert
Insertion Follow the procedure below to insert the IR 00105 NO condition at address
00206.
1, 2, 3...
1. Bring up the initial display.
2. Input the address where the NO condition will be inserted and press the
Down Arrow Key. It is not necessary to input leading zeroes.
C
2
A
0 6
↓
00206READ
AND NOT 00104
3. Input the new instruction and press the INS Key.
AND
B
1
A
0
F
5
INS
00206INSERT?
AND 00105
4. Press the Down Arrow Key to insert the new instruction.
Note For instructions that require more operands, input the operands and
then press the WRITE Key.
↓
00207INSERT END
AND NOT 00104
Deletion Follow the procedure below to delete the IR 00103 NO condition at address
00205.
1, 2, 3...
1. Bring up the initial display.
To Next Page
