Sysmac CQM1 User Manual

53

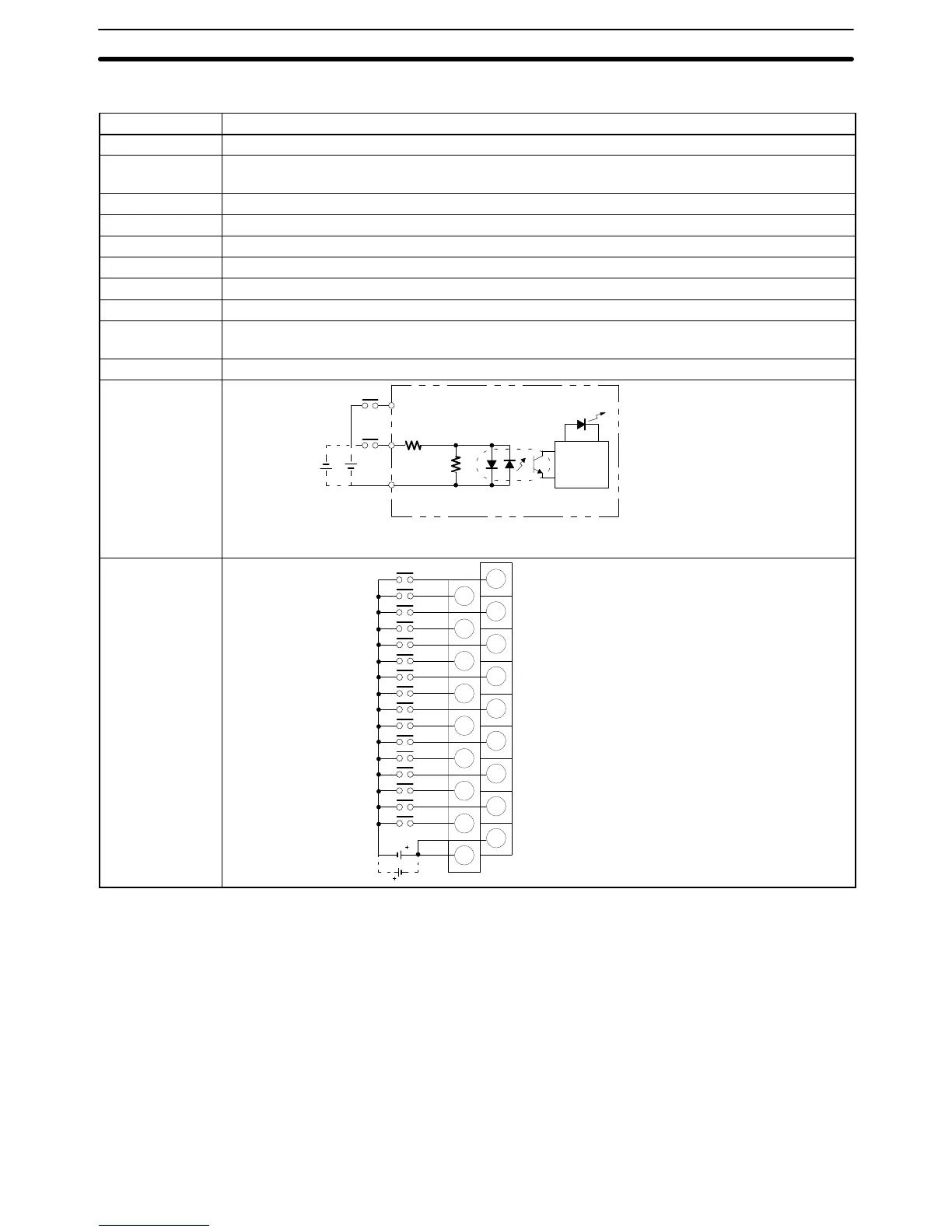

2-6-6 12-VDC Input Units
Item CQM1-ID111
Input Voltage 12 VDC
+10%
/
–15%
Input
Impedance
1.8 kΩ
Input Current 6 mA typical (at 12 VDC)
ON Voltage 8.0 VDC min.
OFF Voltage 3.0 VDC max.
ON Delay Default: 8 ms max. (can be set between 1 and 128 ms in PC Setup, see note)
OFF Delay Default: 8 ms max. (can be set between 1 and 128 ms in PC Setup, see note)
No. of Inputs 16 points (16 points/common, 1 circuit)
Internal Current
Consumption
85 mA max. at 5 VDC
Weight 180 grams max.
Circuit
Configuration
IN0
to
IN15
COM
1.8 kW
Input
LED
Internal
Circuits
620 W
Note The input power supply polarity may be con-
nected in either direction.
Terminal
Connections
B0
0
1
A0
B1
2
3
A1
B2
4
5
A2
B3
6
7
A3
B4
8
9
A4
B5
10
11
A5
B6
12
13
A6
B7
14
15
A7
B8
COM
A8
COM
–
–
Note Refer to 3-1-1 Offline Operations .
Unit Specifications
Section 2-6

Sysmac CQM1 Specifications

General

Manufacturer	Omron
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	100 to 240 VAC or 24 VDC (depending on model)
Programming Language	Ladder Diagram, Instruction List
Communication Ports	RS-232C
Expansion	Expansion I/O units available
Analog I/O	Available via expansion units
Instruction Set	Basic and advanced instructions
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
