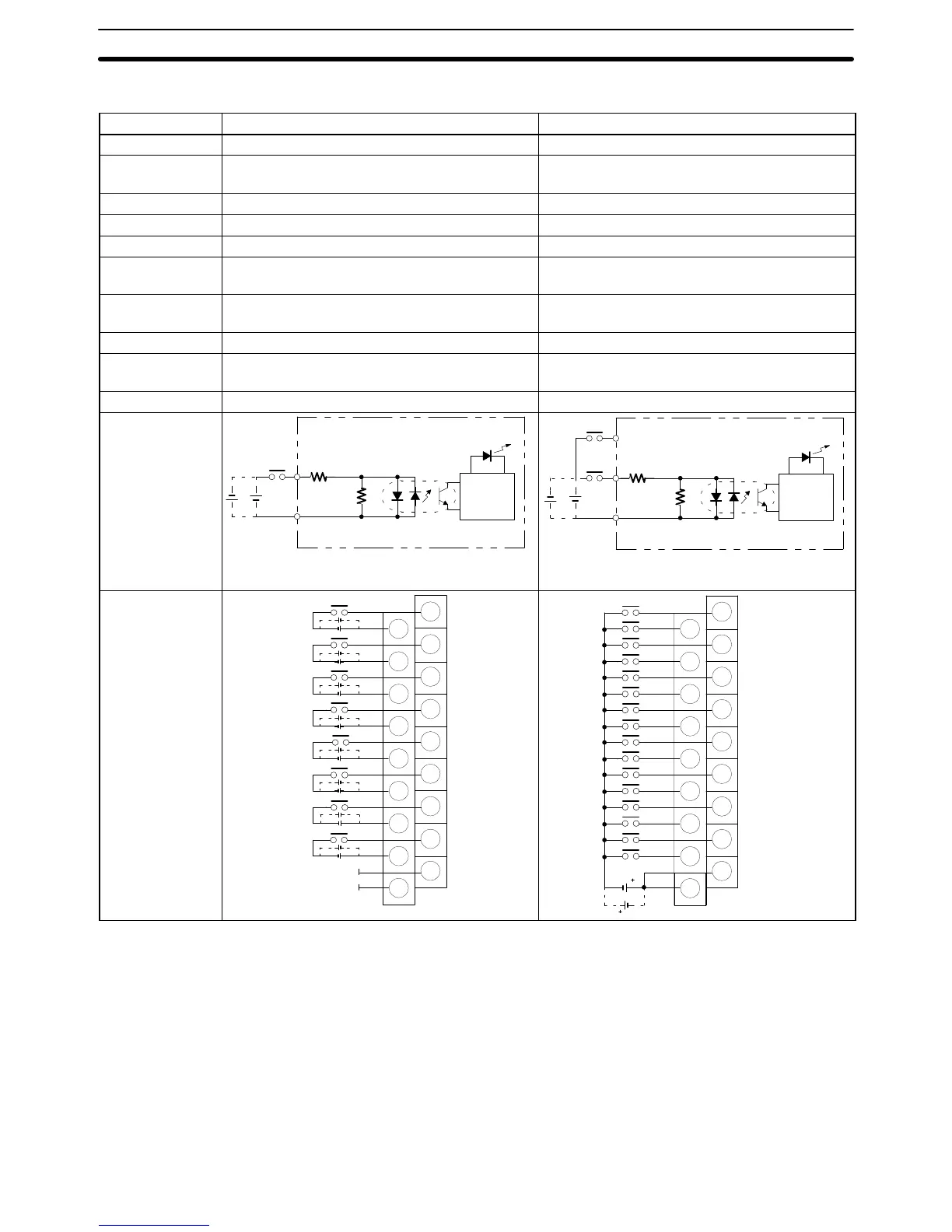

2-6-7 12 to 24-VDC and 24-VDC Input Units
Item CQM1-ID211 CQM1-ID212
Input Voltage 12 to 24 VDC
+10%
/
–15%
24 VDC
+10%
/
–15%
Input
Impedance
2.4 kΩ 3.9 kΩ
Input Current 10 mA typical (at 24 VDC) 6 mA typical (at 24 VDC)
ON Voltage 10.2 VDC min. 14.4 VDC min.
OFF Voltage 3.0 VDC max. 5.0 VDC max.
ON Delay Default: 8 ms max. (can be set between 1 and
128 ms in PC Setup, see note)
Default: 8 ms max. (can be set between 1 and
128 ms in PC Setup, see note)
OFF Delay Default: 8 ms max. (can be set between 1 and
128 ms in PC Setup, see note)
Default: 8 ms max. (can be set between 1 and
128 ms in PC Setup, see note)
No. of Inputs 8 points (independent commons) 16 points (16 points/common, 1 circuit)
Internal Current
Consumption
50 mA max. at 5 VDC 85 mA max. at 5 VDC
Weight 180 grams max. 180 grams max.
Circuit
Configuration
INc
IN
2.2 kW
Input
LED
Internal
Circuits
560 W
Note The input power supply polarity may be con-
nected in either direction.
IN0
to
IN15
COM
3.9 kW
Input
LED
Internal
Circuits
560 W
Note The input power supply polarity may be con-
nected in either direction.
Terminal
Connections
B0
0
A0
B1
c0
A1
B2
1
A2
B3
3
A3
B4
4
A4
B5
5
A5
B6
6
A6
B7
7
A7
B8
A8
c1
2
c2
c3
c4
c5
c6
c7
NC
NC
+–
–
+
+
–
–
–
–
–
–
–
+
+
+
+
+
+
+–
+–
+–
+–
+–
+–
+–
B0
0
1
A0
B1
2
3
A1
B2
4
5
A2
B3
6
7
A3
B4
8
9
A4
B5
10
11
A5
B6
12
13
A6
B7
14
15
A7
B8
COM
A8
COM
–
–
Note Refer to 3-1-1 Offline Operations .
